PATLITE SIGNALFX NHL-3FV1 Network Security Monitoring Notificaiton MP3 Voice & LED Signal Tower Light
Regular price $2,999.00 Sale price $1,350.00 Save $1,649.00 |
|
NHL-3FV1N Network Monitoring Signal Tower with Custom MP3 Messages, Melody, Alarm Tones.
Network monitoring signal tower with MP3 Voice alerts, LAN connectivity, and input/outputs and line out for additional network functions.
|
PING Monitoring & Quick Notification Monitor & be notified of any NODE irregularities instantly by LED Warning Light and custom MP3 Voice messages. Actively Monitors system, software, device status and abnormalities. |
|
SNMP TRAP Monitoring SNMPv1 SNMPv2c Receive SNMP TRAP, quickly alerting the administrator or support with Clearly visibility LED Modular lights and Custom Sound. Catch notificaitons even when away from your screen. |
|
APPLICATION Monitoring Monitor Application status and be notified on any process or intrusion by creating custom commands to trigger the tower light. |
|
SOCKET Communication PHN PNS Command Compatibility |
|
RSH Trigger using RSH from Network Monitoring Software, IPS, other devices. Assign trigger to particular sounds, custom messages or LED colour module. |
|
SLMP Seamless Message Protocal / MC Protocol Compatibility Easy Connection to CC-Link IE Field Network systems in Industrial & IoT Automation applications |
|
PNS Manager Central Management Software for multiple tower lights on the same network. |
|
EMAIL Notification System Built-in for Remote monitoring SNMP v2c Auomatically forward logs and event information to upto 8 email address for remote monitoring of systems, software, hardware. |
|
|
 |
|
|
Model Specifications
| DIMENSIONS | - Tower diameter: 60mm - Overall dimensions: 113mm x 154mm x 350mm |
|---|---|
| OPERATING VOLTAGES | - 24V DC |
| PROTOCOLS | - Physical Layer: 10 BASE-T/100 BASE-TX - Data Link Layer: CSMA/CD - Network Layer: IP/ICMP/B6 - Transport Layer: TCP/UDP - Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP |
| FUNCTIONS | - Ping Device monitor - Digital Input and Output - RSH command - SNMP v1・v2C - Application monitor - SOCKET - E-mail Transmission - Line Out - Easy Access Volume Control - Preset Sound: Buzzer; 4 Selections Chime; 3 Selections Message; 3 Selections |
| BODY STYLE | Interface converter: - Low profile steel casing - Bumper pads installed to protect surface finish Tower: - Pre-assembled, mounted to converter base - LED modules are interchangeable |
| BODY COLOR | - Interface Converter Base: Off-white - Tower: Beige |
| STACKABLE TIERS | - 3 tiers only |
| MODULE COLORS | - LED source Color: Red/Amber/Green (only) - Lens Color: clear Lens |
| AUDIBLE STYLE | - Audio File Formal: MPEG1-Audio Layer Ⅲ (MP3) Sampling Frequency 44.1kHz - Bite Rate: 32kbit/s, 64kbit/s (Standard Rate), 128kbit/s Constant Bit Rate (CBR) Only - Number of Playback Messages: USB Memory Transfer Package: 30 kinds Web Setup Tool Registrations: 30 kinds Preset Registrations: 10 kinds |
| CONFORMITY STANDARDS | - CE Marking - UL 1638, CAN/ULC-S526 - RoHS (EN50581) - FCC Part 15 Subpart B Class A - EMC Directive (EN 55032 (Class A), EN 55024) |
| PROTECTION RATINGS | - IP20 (IEC 60529) |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
PATLITE LA6-POE LA6-5DTNWB-POE Network POE Ethernet LED Signal Tower Light
Regular price $2,000.00 Sale price $900.00 Save $1,100.00|
LA6-POE TCP/IP Modbus Network LAN Network Signal Tower for the Smart Factory, Retail, Information Technology, Security, System environment. World's No1 LED Status and Process Signal Tower Light Brand. Revolutionary LA6 Series Signal Tower! Change from the Traditional Simple 'STATUS DISPLAY' to 'PROCESS & TIME DISPLAY'. The LA6 can display gradual colour patterns and sounds reflecting Level Indication, Time Indication, Temperature Indication, Remote-Mirroring, Count Down Timer. Program your own Colours and patterns to create a LED Signal Tower Light that suits your application and environment. Every system is unique, and LA6 can adapt to suit your particular needs. Easily access via USB or over the Network for remote programming and triggering. This is the LED Indicating Signal Tower Light of the future! Programmable over the Network, Modbus, TCP/IP, Ethernet, Mirroring-Function, Power Over Ethernet (POE), Built-in Countdown Timer, 21 Colours, 11 Alarm Sounds. We have Price-Beat, Volume, Reseller, OEM, Project, Export discount programs. Contact us 'Request Quote' button below. We look forward to working with you in near future.
|
| Products Overview |
Product Features
This product has a new "Smart Mode" function; in addition to the"Signal Tower Mode", which can directly control the LED and buzzer like a standard signal tower. In the "Smart Mode", various displays can be shown, such as a slow flashing rate, simulating that of a firefly and a display that can be used as a level meter. In addition to the signal line input control, since it is compatible with the Power over Ethernet (henceforth, PoE), it can be operated through a LAN Cable, using Modbus/TCP protocol, to acquire signal tower status conditions via the network, and control it in the Signal Tower Mode or Smart Mode. Also, this product can use the mirroring function, in which one signal tower can show the same status as the other, but in a different location.
Since the Signal Tower is the LA6, the dedicated application software, "EDITOR for LA series" can be used to reflect the setting data via the network.
Model Specifications
| DIMENSIONS | - 60mm Diameter |
|---|---|
| OPERATING VOLTAGES | - 24V DC Power over Ethernet (PoE): 48V DC |
| FUNCTIONS | Operational Method: - Signal Wire Control - Command Control |

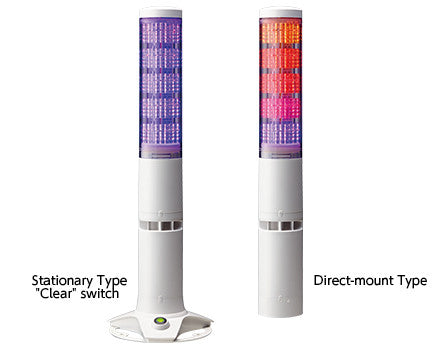

| BODY STYLE | - TN : Direct Mount Type - SN : Stationary Type |
| BODY COLOR | - Off-white Only |
| STACKABLE TIERS | - 5 Tier Only |
| MODULE COLORS | Display Color Variations - Signal Tower Mode: 9 Colors - Smart Mode: 21 Colors |
| AUDIBLE STYLE | - 11 alarm sounds available |
| CONFORMITY STANDARDS | - EMC Directive - RoHS Directive - UL 508 - FCC - KC |
| PROTECTION RATINGS | - IP54 (IEC 60529) |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

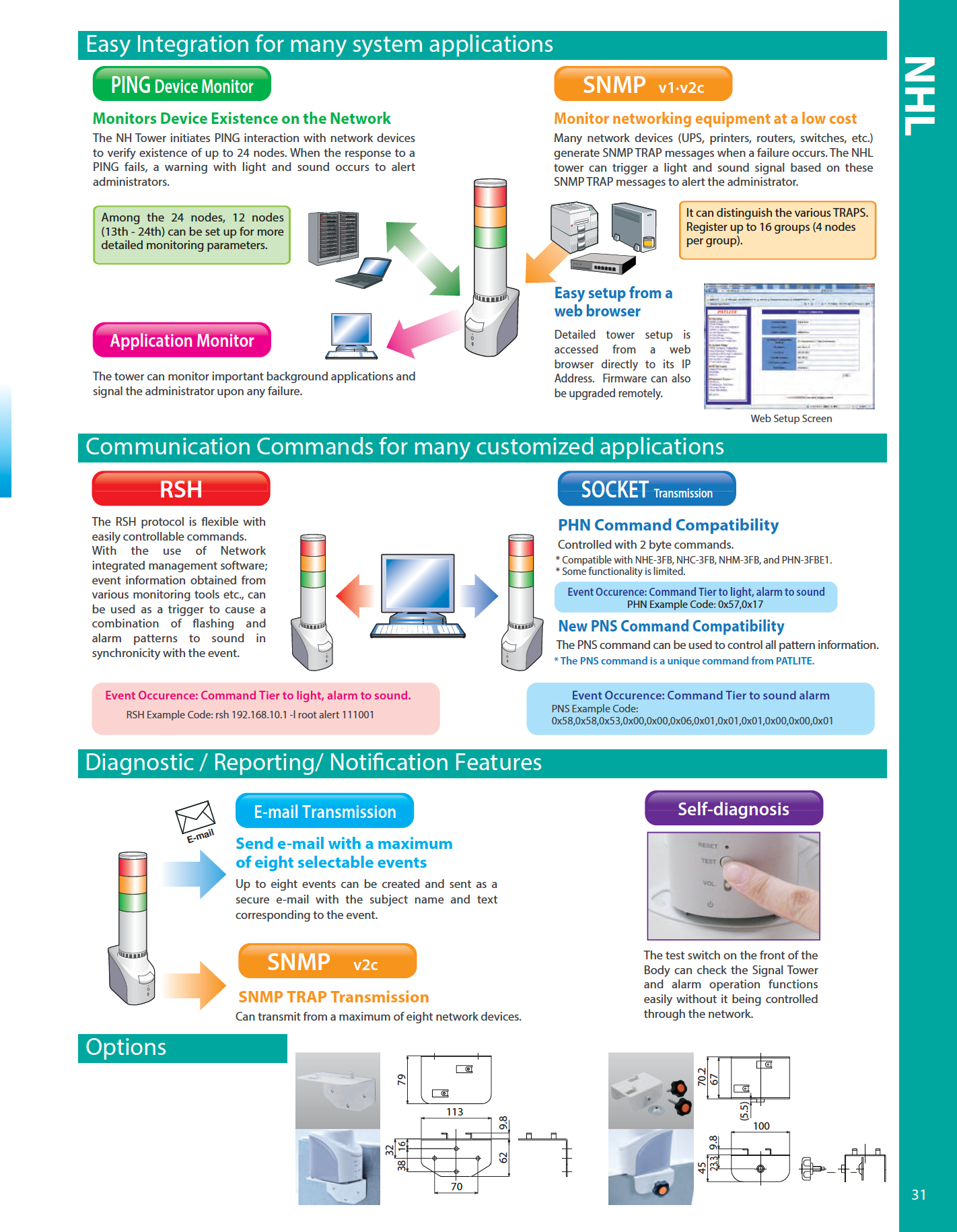

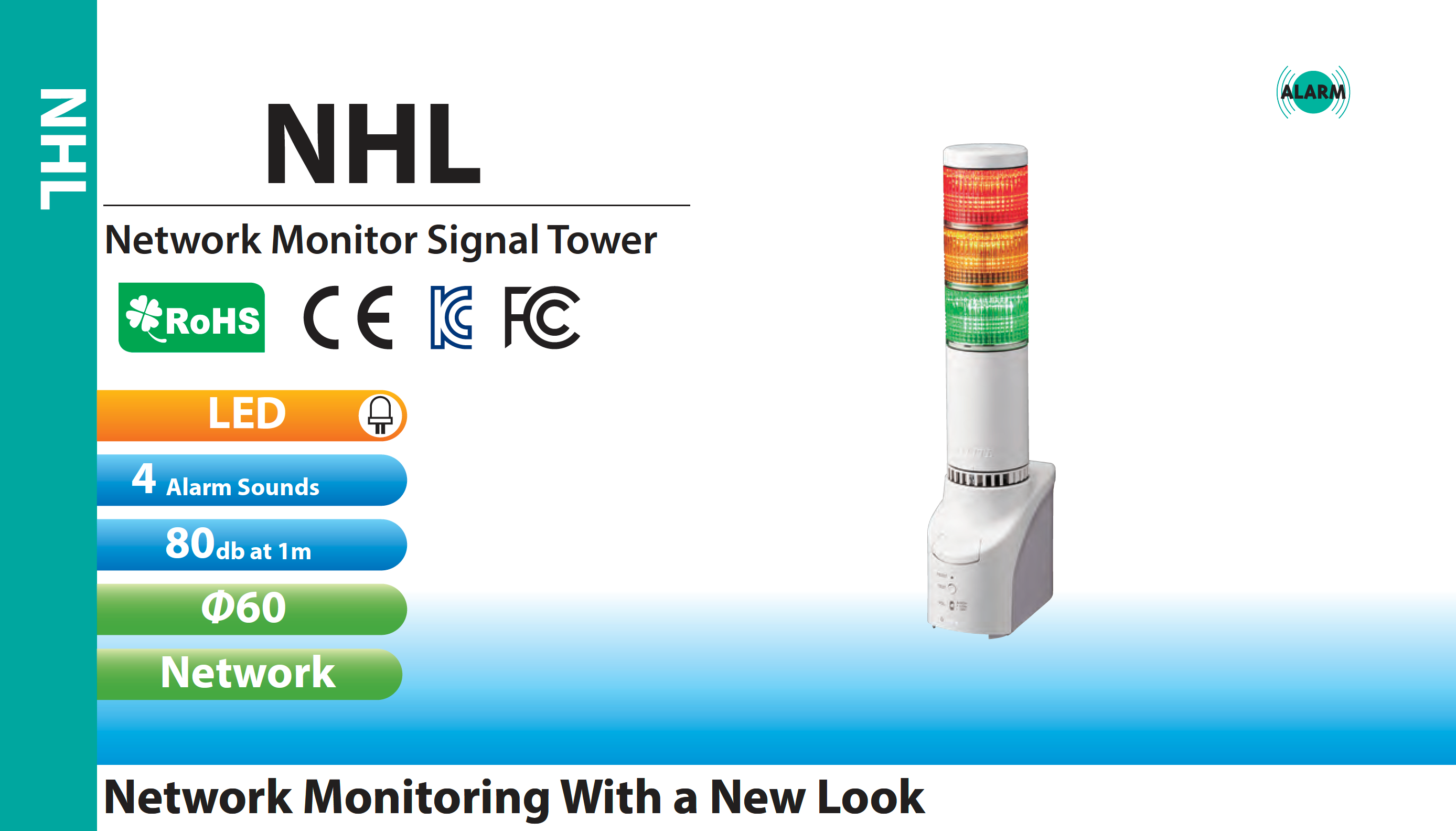

PATLITE SIGNALFX NHL NHL-3FB1 Network Monitoring Signal Tower for Asset Management Software
Regular price $2,500.00 Sale price $1,350.00 Save $1,150.00|
|
 |
NHL-3FB1
Network Monitoring Signal Tower 60mm
The NHL has a three-tiered signal tower with a buzzer and E-mail sending capability to report to a network manager immediately when a network event occurs via network connection.
- PATLITE SIGNALFX NHL-3FB1 Network Compatible Ethernet LED Signal Tower
- PATLITE SIGNALFX NHL NHL-3FB1 Network Monitoring Signal Tower
Product Features
- Correspond to SNMP Protocol
- Cooperate with various kinds of network devices that support SNMP protocol
- Possible to send SNMP Trap Exclusive MIB loaded
- Network Monitor Signal Tower loads the exclusive MIB to control itself with SNMP Ping Monitoring
- Monitor the health of (up to) 16 network devices using Ping Corresponds to RSH Command
- Warning light, flashing, buzzer can be easily activated by RSH command
- Prevent unauthorized access and information leakage
- By cooperating with an Asset Management Software, warning light, flashing and buzzer can be activated as warning when unauthorized access is attempted
Movie
Model Specifications
| DIMENSIONS | - Tower diameter: 60mm - Overall dimensions: 69mm x 126mm x 338mm |
|---|---|
| OPERATING VOLTAGES | - AC100-240V (NHL-3FB1U Adaptor included) |
| PROTOCOLS | - Physical Layer: 10 BASE-T/100 BASE-TX - Data Link Layer: CSMA/CD - Network Layer: IP/ICMP/ARP - Transport Layer: TCP/UDP - Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP |
| FUNCTIONS | - Ping Device Monitor - RSH Command - SNMP v1・v2 - Self-diagnosis - Application Monitor - SOCKET - E-mail Transmission |
| BODY STYLE | Interface converter: - Low-profile steel mounting base - Bumper pads installed to protect surface finish Tower: - Pre-assembled, mounted to converter base - Interchangeable LED Modules |
| BODY COLOR | - Interface Converter Base: Off-white - Tower: Beige |
| STACKABLE TIERS | - 3 tiers only |
| MODULE COLORS | - LED source Color: Red / Amber / Green (only) - Lens Color: clear Lens |
| AUDIBLE STYLE | - Alarm 1: selectable, Slow Intermittent - Alarm 2: selectable, Fast Intermittent - Alarm 3: Fast Burst - Alarm 4: Continuous |
| CONFORMITY STANDARDS | - CE Marking - UL - RoHS |
Accessories
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

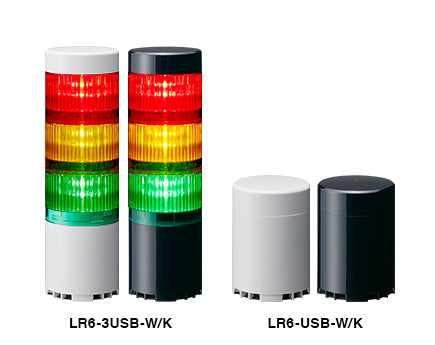

USB LED Indication Light for SACAT Retail Self Service Checkout Systems, Printing, Packaging, Medical Machines
Regular price $695.00 Sale price $250.00 Save $445.00LR6-USB Linux & Windows Compatible LED Signal Tower
Directly Triggered and Powered via USB interface. Compatible with Windows(R) and Linux.No1 LED Device brand in the World! PATLITE SIGNALFX LR6-USBW USB Powered LED Indicating Signal Tower Light with option of 1 to 5 Colours. Red, Yellow, Green, Blue, White, choose and combine with the LR6 LED Signal Tower Light Modules to create your any colour combination suited to your system or application. Suitable for any USB compatible computer system or Linux based hardware. Compatible with Linux or Windows OS. Contact us today with your application and requirement and we will do our best to support you for long term cooperation.
We have Volume QTY, OEM, Project, Reseller, Export discount programs & Competitor-Price-Beat Policy. Please contact us to discuss further. We look forward to working with you in near future.
| Products Overview | Product Categories |
Product Features
- Controlled by PC.
- Custom programming made easy with our free software library (.DLL).
- Open architecture makes it possible to control the device with other operating systems such as Linux.
- Supports HID class. No exclusive drivers necessary.
- Supports solid color, clear-globe, and 7-in-1 multi-color LED units.
- IP65 protection rating - High water and dust protection.
Model Specifications
| OPERATING VOLTAGES | - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard) |
|---|---|
| PROTOCOLS | - USB 2.0 - Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10 - Compatible with open-source software operating systems such as Linux |
| FUNCTIONS | - LED units and Buzzer is controlled by a PC via USB interface. |
| CONFORMITY STANDARDS | - UL - FCC - EMC Directive - RoHS - KC |
| PROTECTION RATINGS | - IP65 (IEC 60529), except when pole or wall mounted. - NEMA Type 4X, 13 |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

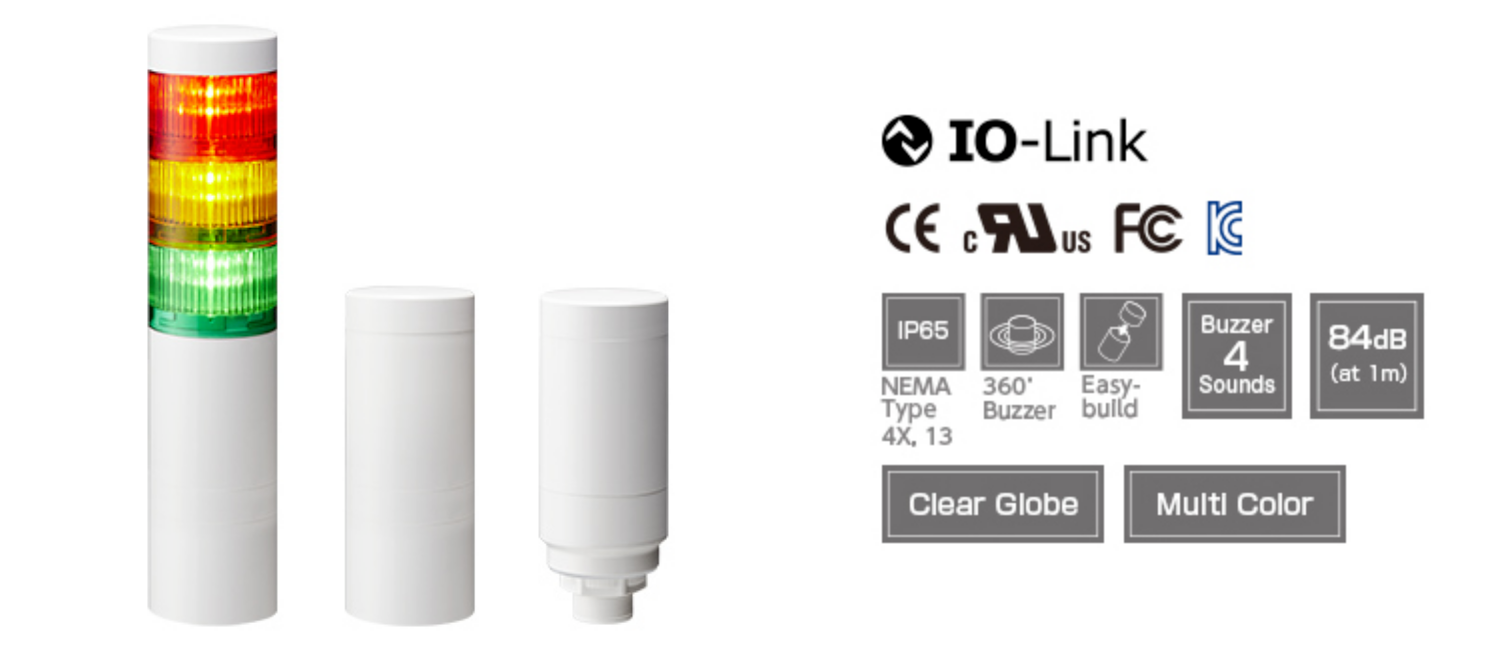

LR6-IL IO Link LED Signal Tower Light Warning Indication Smart Factory Office Device I Patlite SignalFx Australia NZ I Factory Direct Call us for project / OEM Pricing
Regular price $1,295.00 Sale price $495.00 Save $800.00
|
PATLITE LR6-IL IO Link LED Signal Tower Light with Plug & Play IO Link M12 Connectivity
Standardize your signaling interface. The PATLITE SIGNALFX IO-Link Signal Tower installs and configures seamlessly through your IO-Link interface. IO-Link is a standardized IO technology (IEC 61131-9); fieldbus-neutral, point-to-point communication, universal interface.
Light Tower base only; IO-LINK; 24 VDC; LED; IP65; 60mm; direct mount with M12. Order Required Colour LED Modules and ADD to base unit.
Product Features
- Seamlessly integrates with IO-Link masters. Learn more about IO-Link at io-link.com.
- Built-in 5-pin M12 connector for quick and easy installations.
- Select any combination of solid colors, multi-color, and clear globe LED units.
- Audible alarm with built-in flashing function and Wireless Data Acquisition System are available as options.
- A modular body construction makes configuring LED units and optional parts easy.
Specifications
| Model Code | Pre-assembled Model (Direct mount) LR6-3ILWMNW-RYG |
Body Unit (Direct mount) LR6-ILWMNW |
Body Unit (1/2” NPT pipe or direct mount) LR6-ILWCNW |
| Size | 60mm | ||
| Tier | LED Unit: Max. 5 tiers and one buzzer Unit | ||
| LED Units | Red / Amber / Green (Adding or changing LED units is possible) |
Sold Separately | Sold Separately |
| Light control | Continuous / Flashing | ||
| Alarm Sound Pressure | Typ. 84dB (Use LR6-BW) | ||
| Alarm Sound Selection | 4 types (Selectable) (Use LR6-BW) | ||
| Protection Rating | IP65 | ||
| Wiring | M12 Connector 5 pins | ||
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
IO-Link M12 plug LED Signal Tower Light I PATLITE SIGNALFX AUSTRALIA NZ I Official Channel I Contact us for OEM & Wholesale
Regular price $1,295.00 Sale price $495.00 Save $800.00|
|
PATLITE LR6-IL IO-Link LED Signal Tower
Standardize your signaling interface. The PATLITE IO-Link Signal Tower installs and configures seamlessly through your IO-Link interface. IO-Link is a standardized IO technology (IEC 61131-9); fieldbus-neutral, point-to-point communication, universal interface.
Light Tower base only; IO-LINK; 24 VDC; LED; IP65; 60mm; direct mount with M12. Order Required Colour LED Modules and ADD to base unit.
Product Features
- Seamlessly integrates with IO-Link masters. Learn more about IO-Link at io-link.com.
- Built-in 5-pin M12 connector for quick and easy installations.
- Select any combination of solid colors, multi-color, and clear globe LED units.
- Audible alarm with built-in flashing function and Wireless Data Acquisition System are available as options.
- A modular body construction makes configuring LED units and optional parts easy.
Specifications
| Model Code | Pre-assembled Model (Direct mount) LR6-3ILWMNW-RYG |
Body Unit (Direct mount) LR6-ILWMNW |
Body Unit (1/2” NPT pipe or direct mount) LR6-ILWCNW |
| Size | 60mm | ||
| Tier | LED Unit: Max. 5 tiers and one buzzer Unit | ||
| LED Units | Red / Amber / Green (Adding or changing LED units is possible) |
Sold Separately | Sold Separately |
| Light control | Continuous / Flashing | ||
| Alarm Sound Pressure | Typ. 84dB (Use LR6-BW) | ||
| Alarm Sound Selection | 4 types (Selectable) (Use LR6-BW) | ||
| Protection Rating | IP65 | ||
| Wiring | M12 Connector 5 pins | ||
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
PATLITE LR6-IL IO-Link Master PLC Easy Connect LED Signal Tower Light
Regular price $595.00 Sale price $225.00 Save $370.00|
|
PATLITE LR6-IL IO-Link LED Signal Tower
Standardize your signaling interface. The PATLITE IO-Link Signal Tower installs and configures seamlessly through your IO-Link interface. IO-Link is a standardized IO technology (IEC 61131-9); fieldbus-neutral, point-to-point communication, universal interface.
Light Tower base only; IO-LINK; 24 VDC; LED; IP65; 60mm; direct mount with M12. Order Required Colour LED Modules and ADD to base unit.
Product Features
- Seamlessly integrates with IO-Link masters. Learn more about IO-Link at io-link.com.
- Built-in 5-pin M12 connector for quick and easy installations.
- Select any combination of solid colors, multi-color, and clear globe LED units.
- Audible alarm with built-in flashing function and Wireless Data Acquisition System are available as options.
- A modular body construction makes configuring LED units and optional parts easy.
Specifications
| Model Code | Pre-assembled Model (Direct mount) LR6-3ILWMNW-RYG |
Body Unit (Direct mount) LR6-ILWMNW |
Body Unit (1/2” NPT pipe or direct mount) LR6-ILWCNW |
| Size | 60mm | ||
| Tier | LED Unit: Max. 5 tiers and one buzzer Unit | ||
| LED Units | Red / Amber / Green (Adding or changing LED units is possible) |
Sold Separately | Sold Separately |
| Light control | Continuous / Flashing | ||
| Alarm Sound Pressure | Typ. 84dB (Use LR6-BW) | ||
| Alarm Sound Selection | 4 types (Selectable) (Use LR6-BW) | ||
| Protection Rating | IP65 | ||
| Wiring | M12 Connector 5 pins | ||
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
SignalFx USB Network Machine Status Monitoring LED Signal Tower Light LINUX & WINDOWS
Regular price $995.00 Sale price $250.00 Save $745.00LR6 USB Powered Multi Colour / Color LED Signal Tower Light ( LU7-USB Replacement)
Directly Triggered and Powered via USB interface. Compatible with Windows® and Linux.
Product Features
- Controlled by PC.
- Custom programming made easy with our free software library (.DLL).
- Open architecture makes it possible to control the device with other operating systems such as Linux.
- Supports HID class. No exclusive drivers necessary.
- Supports solid color, clear-globe, and 7-in-1 multi-color LED units.
- IP65 protection rating - High water and dust protection.
Model Specifications
| OPERATING VOLTAGES | - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard) |
|---|---|
| PROTOCOLS | - USB 2.0 - Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10 - Compatible with open-source software operating systems such as Linux |
| FUNCTIONS | - LED units and Buzzer is controlled by a PC via USB interface. |
| CONFORMITY STANDARDS | - UL - FCC - EMC Directive - RoHS - KC |
| PROTECTION RATINGS | - IP65 (IEC 60529), except when pole or wall mounted. - NEMA Type 4X, 13 |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
Patlite SignalFx LR6-3USB-W LR6-3USB-K LR6-USBW LR6-USBK USB LED Signal Tower Light
Regular price $995.00 Sale price $250.00 Save $745.00LR6 USB Powered Multi Colour / Color LED Signal Tower Light ( LU7-USB Replacement)
Directly Triggered and Powered via USB interface. Compatible with Windows® and Linux.
Product Features
- Controlled by PC.
- Custom programming made easy with our free software library (.DLL).
- Open architecture makes it possible to control the device with other operating systems such as Linux.
- Supports HID class. No exclusive drivers necessary.
- Supports solid color, clear-globe, and 7-in-1 multi-color LED units.
- IP65 protection rating - High water and dust protection.
Model Specifications
| OPERATING VOLTAGES | - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard) |
|---|---|
| PROTOCOLS | - USB 2.0 - Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10 - Compatible with open-source software operating systems such as Linux |
| FUNCTIONS | - LED units and Buzzer is controlled by a PC via USB interface. |
| CONFORMITY STANDARDS | - UL - FCC - EMC Directive - RoHS - KC |
| PROTECTION RATINGS | - IP65 (IEC 60529), except when pole or wall mounted. - NEMA Type 4X, 13 |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
LINUX & WINDOWS COMPATIBLE. LR6 USB Powered Multi Colour / Color LED Signal Tower Light
Regular price $995.00 Sale price $399.00 Save $596.00LR6 USB Powered Multi Colour / Color LED Signal Tower Light ( LU7-USB Replacement)
Directly Triggered and Powered via USB interface. Compatible with Windows® and Linux.
Product Features
- Controlled by PC.
- Custom programming made easy with our free software library (.DLL).
- Open architecture makes it possible to control the device with other operating systems such as Linux.
- Supports HID class. No exclusive drivers necessary.
- Supports solid color, clear-globe, and 7-in-1 multi-color LED units.
- IP65 protection rating - High water and dust protection.
Model Specifications
| OPERATING VOLTAGES | - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard) |
|---|---|
| PROTOCOLS | - USB 2.0 - Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10 - Compatible with open-source software operating systems such as Linux |
| FUNCTIONS | - LED units and Buzzer is controlled by a PC via USB interface. |
| CONFORMITY STANDARDS | - UL - FCC - EMC Directive - RoHS - KC |
| PROTECTION RATINGS | - IP65 (IEC 60529), except when pole or wall mounted. - NEMA Type 4X, 13 |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
Patlite LR6-USBW LR6-USBK USB PC LED Signal Tower Light LINUX WINDOWS
Regular price $995.00 Sale price $235.00 Save $760.00LR6 USB Powered Multi Colour / Color LED Signal Tower Light ( LU7-USB Replacement)
Directly Triggered and Powered via USB interface. Compatible with Windows® and Linux.
Product Features
- Controlled by PC.
- Custom programming made easy with our free software library (.DLL).
- Open architecture makes it possible to control the device with other operating systems such as Linux.
- Supports HID class. No exclusive drivers necessary.
- Supports solid color, clear-globe, and 7-in-1 multi-color LED units.
- IP65 protection rating - High water and dust protection.
Model Specifications
| OPERATING VOLTAGES | - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard) |
|---|---|
| PROTOCOLS | - USB 2.0 - Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10 - Compatible with open-source software operating systems such as Linux |
| FUNCTIONS | - LED units and Buzzer is controlled by a PC via USB interface. |
| CONFORMITY STANDARDS | - UL - FCC - EMC Directive - RoHS - KC |
| PROTECTION RATINGS | - IP65 (IEC 60529), except when pole or wall mounted. - NEMA Type 4X, 13 |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
PATLITE LA6-POE LA6-5DSNWB-POE Network POE Ethernet LED Signal Tower Light
Regular price $2,000.00 Sale price $900.00 Save $1,100.00|
LA6-POE TCP/IP Modbus Network LAN Network Signal Tower for the Smart Factory, Retail, Information Technology, Security, System environment. World's No1 LED Status and Process Signal Tower Light Brand. Revolutionary LA6 Series Signal Tower! Change from the Traditional Simple 'STATUS DISPLAY' to 'PROCESS & TIME DISPLAY'. The LA6 can display gradual colour patterns and sounds reflecting Level Indication, Time Indication, Temperature Indication, Remote-Mirroring, Count Down Timer. Program your own Colours and patterns to create a LED Signal Tower Light that suits your application and environment. Every system is unique, and LA6 can adapt to suit your particular needs. Easily access via USB or over the Network for remote programming and triggering. This is the LED Indicating Signal Tower Light of the future! Programmable over the Network, Modbus, TCP/IP, Ethernet, Mirroring-Function, Power Over Ethernet (POE), Built-in Countdown Timer, 21 Colours, 11 Alarm Sounds. We have Price-Beat, Volume, Reseller, OEM, Project, Export discount programs. Contact us 'Request Quote' button below. We look forward to working with you in near future.
|
| Products Overview |
Product Features
This product has a new "Smart Mode" function; in addition to the"Signal Tower Mode", which can directly control the LED and buzzer like a standard signal tower. In the "Smart Mode", various displays can be shown, such as a slow flashing rate, simulating that of a firefly and a display that can be used as a level meter. In addition to the signal line input control, since it is compatible with the Power over Ethernet (henceforth, PoE), it can be operated through a LAN Cable, using Modbus/TCP protocol, to acquire signal tower status conditions via the network, and control it in the Signal Tower Mode or Smart Mode. Also, this product can use the mirroring function, in which one signal tower can show the same status as the other, but in a different location.
Since the Signal Tower is the LA6, the dedicated application software, "EDITOR for LA series" can be used to reflect the setting data via the network.
Model Specifications
| DIMENSIONS | - 60mm Diameter |
|---|---|
| OPERATING VOLTAGES | - 24V DC Power over Ethernet (PoE): 48V DC |
| FUNCTIONS | Operational Method: - Signal Wire Control - Command Control |
| BODY STYLE | - TN : Direct Mount Type - SN : Stationary Type |
| BODY COLOR | - Off-white Only |
| STACKABLE TIERS | - 5 Tier Only |
| MODULE COLORS | Display Color Variations - Signal Tower Mode: 9 Colors - Smart Mode: 21 Colors |
| AUDIBLE STYLE | - 11 alarm sounds available |
| CONFORMITY STANDARDS | - EMC Directive - RoHS Directive - UL 508 - FCC - KC |
| PROTECTION RATINGS | - IP54 (IEC 60529) |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!
NHL Multi Colour LED Warning Light & Sounder for Network Monitoring Software SIEMS NID NETWORKMONITORING IT SECURITY Cyber Security Network Monitoring ; Compatible with all vendors I PATLITE SIGNALFX AUSTRALIA I CALL FOR BEST PRICE NH-FV NHS-3FV1-RYG
Regular price $2,500.00 Sale price $1,350.00 Save $1,150.00ULTIMATE AUDIO & VISUAL ALERTING WARNING LED TOWER LIGHT FOR ANY SOFTWARE OR CLOUD APPLICATION
COMPATIBLE WITH ALL VENDOR'S SOFTWARE AND APPLICATION IN FIELD SUCH AS:
- Cyber Security / Industrial Cyber Security
- Server Monitoring
- Network Monitoring
- SCADA HMI
- Surveillance: Video, Live Streaming, Facial Recognition, Thermal etc
- National Agencies, Police. Fire, Ambulance call center systems.
- National Emergency Alert Systems
- Customer service, sales, and general Call Centers systems
- Industrial Facility monitoring and management systems
- Critical & General infrastructure monitoring and management systems.
- Building management hardware and software systems
- Environment monitoring and management systems
- Data Management Software & Systems
- CRM - Customer Relationship Management solutions
- ERP - Enterprise Resource Planning solutions
- UPS & NAS
- Printing / Labeling hardware & software systems
- Messaging Solution Systems
and more.
Patlite SignalFx Advanced LED Warning Light Sounder System, compatible with any Information Cyber Security Network Monitoring software or systems: Patlite has partnered with most major software vendors in the field of ; Information Data Security, Facial Recognition & Video Surveillance software and solutions, data center management, printing systems and solutions, ERP Enterprise Resource Planning Solutions, Server Monitoring Solutions, Cyber Security Solutions, Network Monitoring Intrusion Detection solutions, Remote Monitoring and messaging, CRM & Call Centers, UPS & NAS, Environment & Facility Management, SCADA HMI, J-Alert National Emergency Alert Systems, Emergency Earth Quake notification systems and more.
Patlite SignalFx Audio Visual Network Alerting hardware has been tried and tested thoroughly in Japan; alliance with major top levels vendors such as NTT Communications, Microsoft Japan, NTT Data Systems, HP Hewlett Packard Japan, OMRON, Sumiotomo Electrics, Daikin Comtec Solar Winds, Fortinet Japan, NEC Aterm SA3500G, Fujitsu Systemwalker Security Control / Systemwalker Desktop Keeper, Sophos, Watch Guard Firebox, MOTEX Lanscope CAT, TREND MICRO Control Manager, Net Chart IntraGuardian2+, Fortinet FortiGate フォーティネットジャパン株式会社, Panasonic, TOA Japan, SATO Printing Systems, Buffalo, Canon, Mobotix, OKI Printing, Yamaha, Bosch, CA Technologies, ZOHO Japan, Kawamura, Chino Graphic recorders (チノーグラフィックレコーダ KR2000 KR3000 Series), Tsubaki, Netware Artfront, Century Systems, Sanyo Electronics, Signalert, ZABBIX, PRTG Network Minitor, CEC and more. See below for details. パトライト NH-FV NHS-3FV1-RYG [MP3再生ネットワーク監視表示灯]
Model Specifications
| DIMENSIONS | - Tower diameter: 60mm (NHL), 40mm (NHP) |
|---|---|
| OPERATING VOLTAGES | - 24V DC (AC Adaptor 100V AC ~ 240V AC) |
| PROTOCOLS | - Physical Layer: 10 BASE-T/100 BASE-TX - Data Link Layer: CSMA/CD - Network Layer: IP/ICMP/B6 - Transport Layer: TCP/UDP - Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP |
| FUNCTIONS | - Ping Device monitor - Digital Input and Output - RSH command - SNMP v1・v2C - Application monitor - SOCKET - E-mail Transmission - Line Out - Easy Access Volume Control - Preset Sound: Buzzer; 4 Selections Chime; 3 Selections Message; 3 Selections |
| BODY STYLE | Interface converter: - Low profile steel casing - Bumper pads installed to protect surface finish Tower: - Pre-assembled, mounted to converter base - LED modules are interchangeable |
| BODY COLOR | - Interface Converter Base: Off-white - Tower: Off White |
| MODULE COLORS | - LED source Color: Red/Amber/Green (only) - Lens Color: clear Lens |
| AUDIBLE STYLE | - Audio File Formal: MPEG1-Audio Layer Ⅲ (MP3) Sampling Frequency 44.1kHz - Bite Rate: 32kbit/s, 64kbit/s (Standard Rate), 128kbit/s Constant Bit Rate (CBR) Only - Number of Playback Messages: USB Memory Transfer Package: 30 kinds Web Setup Tool Registrations: 30 kinds Preset Registrations: 10 kinds |
| CONFORMITY STANDARDS | - RoHS Directive (EN 50581) - EMC Directive (EN 55032, EN 55024) - FCC Part15 Subpart B Class A, ICES-003 Class A - UL 1638, UL 464 CSA C22.2 No.205 - KC (KN 61000-6-2, KN 61000-6-4)*3 - PSE Compliant AC Adaptor *3：Only N type and W type CE Marking UL/cUL Listed W type is an intemational model. |
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||

|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||
