Multi Coloured LED Stack lights with various sizes & options.
49 products
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
Sale
Quick view
PATLITE LR6-IL IO-Link Master PLC Easy Connect LED Signal Tower Light
Regular price $595.00 Sale price $225.00 Save $370.00
|
PATLITE LR6-IL IO-Link LED Signal Tower
Standardize your signaling interface. The PATLITE IO-Link Signal Tower installs and configures seamlessly through your IO-Link interface. IO-Link is a standardized IO technology (IEC 61131-9); fieldbus-neutral, point-to-point communication, universal interface.
Light Tower base only; IO-LINK; 24 VDC; LED; IP65; 60mm; direct mount with M12. Order Required Colour LED Modules and ADD to base unit.
Product Features
- Seamlessly integrates with IO-Link masters. Learn more about IO-Link at io-link.com.
- Built-in 5-pin M12 connector for quick and easy installations.
- Select any combination of solid colors, multi-color, and clear globe LED units.
- Audible alarm with built-in flashing function and Wireless Data Acquisition System are available as options.
- A modular body construction makes configuring LED units and optional parts easy.
Specifications
| Model Code | Pre-assembled Model (Direct mount) LR6-3ILWMNW-RYG |
Body Unit (Direct mount) LR6-ILWMNW |
Body Unit (1/2” NPT pipe or direct mount) LR6-ILWCNW |
| Size | 60mm | ||
| Tier | LED Unit: Max. 5 tiers and one buzzer Unit | ||
| LED Units | Red / Amber / Green (Adding or changing LED units is possible) |
Sold Separately | Sold Separately |
| Light control | Continuous / Flashing | ||
| Alarm Sound Pressure | Typ. 84dB (Use LR6-BW) | ||
| Alarm Sound Selection | 4 types (Selectable) (Use LR6-BW) | ||
| Protection Rating | IP65 | ||
| Wiring | M12 Connector 5 pins | ||
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!

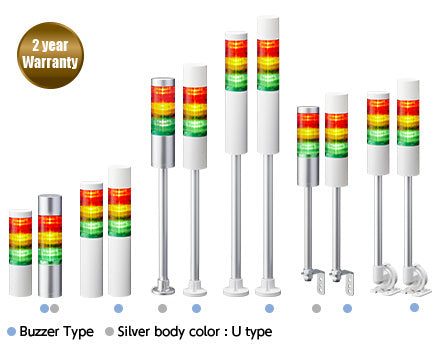

Patlite SignalFx LR6 LED Signal Tower Light IP65 with Built-in Alarm Option
Regular price $999.00 Sale price $99.00 Save $900.00Contact us today for volume, OEM, project and distributor pricing!
LED Signal Tower Light for IT, Machines & Facilities
LR6 IP65 60mm Diameter Direct TOP mounting option
- Our next generation signal tower line featuring cutting-edge technology, modular segments for field configuration, and a wide-array of options to fit the most challenging applications. Wall Mount, Pole Mount L bracket, Pole Mount Flat Bracket Optional* Price Varies.
Product Features
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output
- Re-engineered, completely enclosed sound module, maintaining substantial water and dust protection while producing loud, omni-directional sound. (A modular, “Twist and Lock”, system to easily reconfigure LED and sound modules after install)
- A sleek, smooth form factor and an enhanced body construction for performance in harsh environments. (IP65 protection rating)
- Available in DC24V and AC100-240V
- Available in Off-white and Silver bodies
- M12 connector, ½”NPT or 30mm through-hole mounting option (LR6-WC type). Click here for more details.
- IP69K conformity when ½” NPT pipe (LR6-WC type)
- Multi-color LED module available (7 colors in one: red, amber, green, blue, light blue, purple, and white) Part Number: LR6-E-MZ. Click here for more details.
- Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only)
- Available with Clear lens (special order)
LR Series Video Instructions

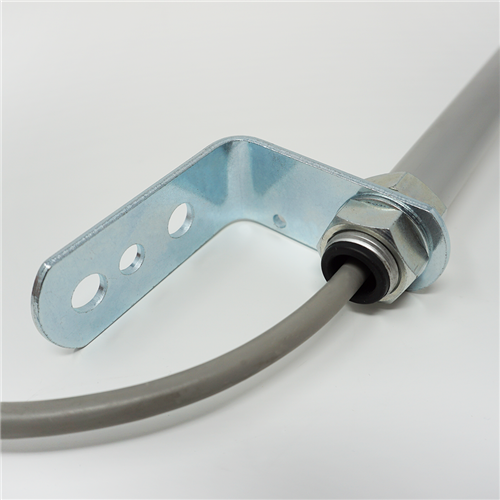

Accessory Options
 SZK-004WWall-mount Bracket |
||
 Angle Bracket |
 SZP-003W/U/K Circular Bracket |
|
 SZP-001W Circular Multi-pitch Bracket |
 SZK-001U Wall-mount Bracket |
|
 POLE22-N Pole |
 POLE22-T Pole |
|
|
|
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!
SignalFx USB Network Machine Status Monitoring LED Signal Tower Light LINUX & WINDOWS
Regular price $995.00 Sale price $250.00 Save $745.00LR6 USB Powered Multi Colour / Color LED Signal Tower Light ( LU7-USB Replacement)
Directly Triggered and Powered via USB interface. Compatible with Windows® and Linux.
Product Features
- Controlled by PC.
- Custom programming made easy with our free software library (.DLL).
- Open architecture makes it possible to control the device with other operating systems such as Linux.
- Supports HID class. No exclusive drivers necessary.
- Supports solid color, clear-globe, and 7-in-1 multi-color LED units.
- IP65 protection rating - High water and dust protection.
Model Specifications
| OPERATING VOLTAGES | - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard) |
|---|---|
| PROTOCOLS | - USB 2.0 - Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10 - Compatible with open-source software operating systems such as Linux |
| FUNCTIONS | - LED units and Buzzer is controlled by a PC via USB interface. |
| CONFORMITY STANDARDS | - UL - FCC - EMC Directive - RoHS - KC |
| PROTECTION RATINGS | - IP65 (IEC 60529), except when pole or wall mounted. - NEMA Type 4X, 13 |
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!
PATLITE LR7 LR LED Signal Tower Light Indicating Warning Lights Official Wholesale Channel
Regular price $0.00-
LR7 LED Signal Tower Light Series
70mm Diameter
- Our next generation signal tower line featuring cutting-edge technology, modular segments for field configuration, and a wide-array of options to fit the most challenging applications.
Product Features
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- Re-engineered, completely enclosed sound module, maintaining substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12C: 80, LR4 & LR5: 85, LR6: 88, LR7: 90dB at 1m)
- A modular, “Twist and Lock”, system to easily customize and reconfigure LED and sound modules. (Field configurable)
- A sleek, smooth form factor and an enhanced body construction for performance in harsh environments. (IP65 protection rating)
- Rated voltage: DC24V
- Standard body color: Off-white. Silver and black bodies available as components only
- Body unit with terminal block available as a component in off-white, silver, or black (LR7-WT & LR7-KT)
- Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only)
Specifications
| Operating Ambient Temperature | -20℃ - +50℃ |
|---|---|
| Operating Humidity Range | 90% RH or less, no condensation |
| Storage Temperature Range | -30℃ - +60℃ |
| Storage Humidity Range | 90% RH or less, no condensation |
| Mounting Location | Indoor Use |
| Mounting Direction | Upright Position |
| Protection Rating*1 | IP65(IEC 60529) / NEMA TYPE 4X, 13 |
| Environmental Conditions | Upright Position |
| Insulation Resistance | More than 1MΩ at DC500V between the power input lead and chassis |
| Withstand Voltage | AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.) |
| Flash Rate | 60 ±2 Flashes / min |
| Sound Level | LR6Typ. 88dB |
| Sound Reduction*2 | ab. -10dB reduction |
| Environmental Conditions | Buzzer Sound No.4 (Sweep) from all directions at a 1m distance |
| Buzzer Sound | 4 patterns*2 No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound |
| Transistor Output | NPN / PNP |
| Conformity Standards | ●UL 508, CSA-C22.2 No.14 ●FCC Part 15 Subpart B Class A ●RoHS Directive (EN 50581) ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●KC (KN 61000-6-4, KN 61000-6-2)*3 |
*1: LJ Type is IP54 *2: Dependent on DIP Switch Settings *3: Except KT and M2 LJ Type *4: M2 Type Only (Except LJ Type)
LED Unit Specifications
| Color | Red | Amber | Green | Blue | White | |
|---|---|---|---|---|---|---|
| Current Consumption / Power Consumption | Typ. | 0.04A/1W | ||||
| Max. | 0.045A/1.3W | |||||
| Conformity Standards | ●UL 508, CSA-C22.2 No.14 ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581) |
|||||
Buzzer Unit Specifications
| Current Consumption / Power Consumption | Typ. | 0.04A/1W | ||||
|---|---|---|---|---|---|---|
| Max. | 0.3A/1.3W | |||||
| Conformity Standards | ●UL 508, CSA-C22.2 No.14 ●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●FCC Part 15 Subpart B Class A ●RoHS Directive (EN 50581) |
|||||
Movie
Accessories
|
|
|
|
|
|
|
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!

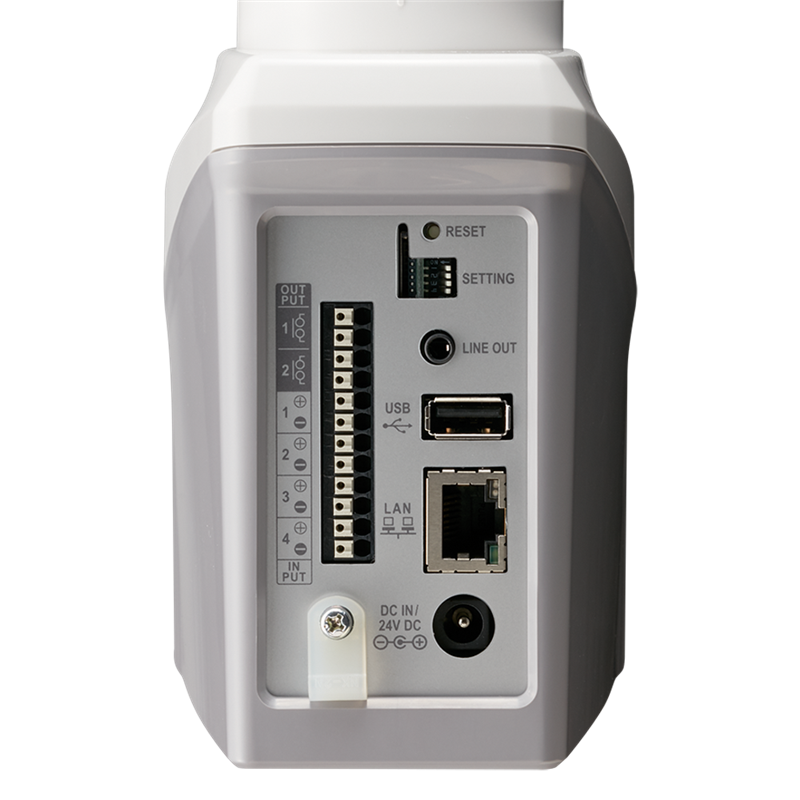

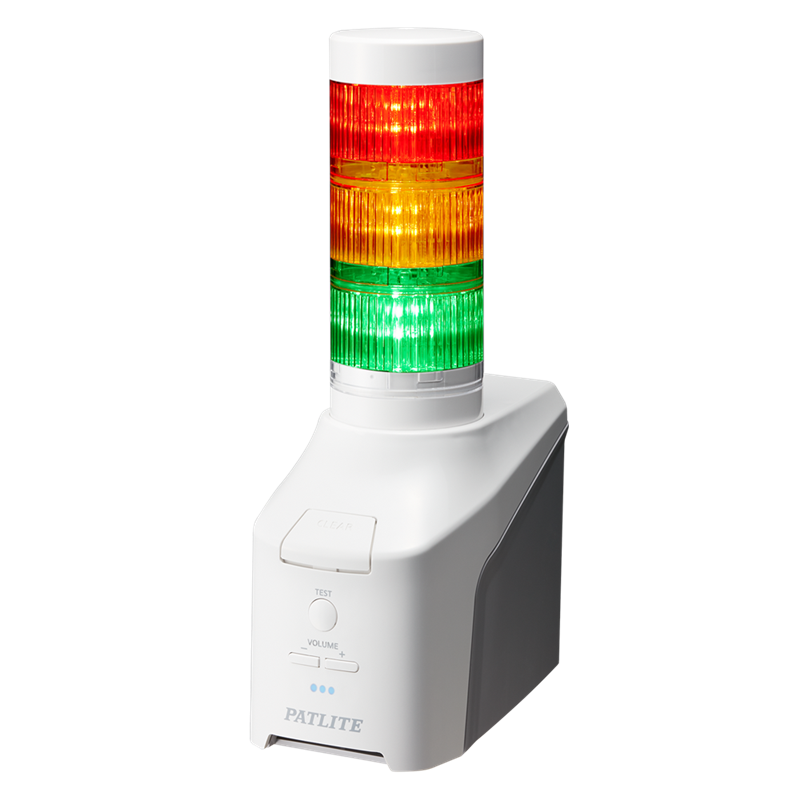

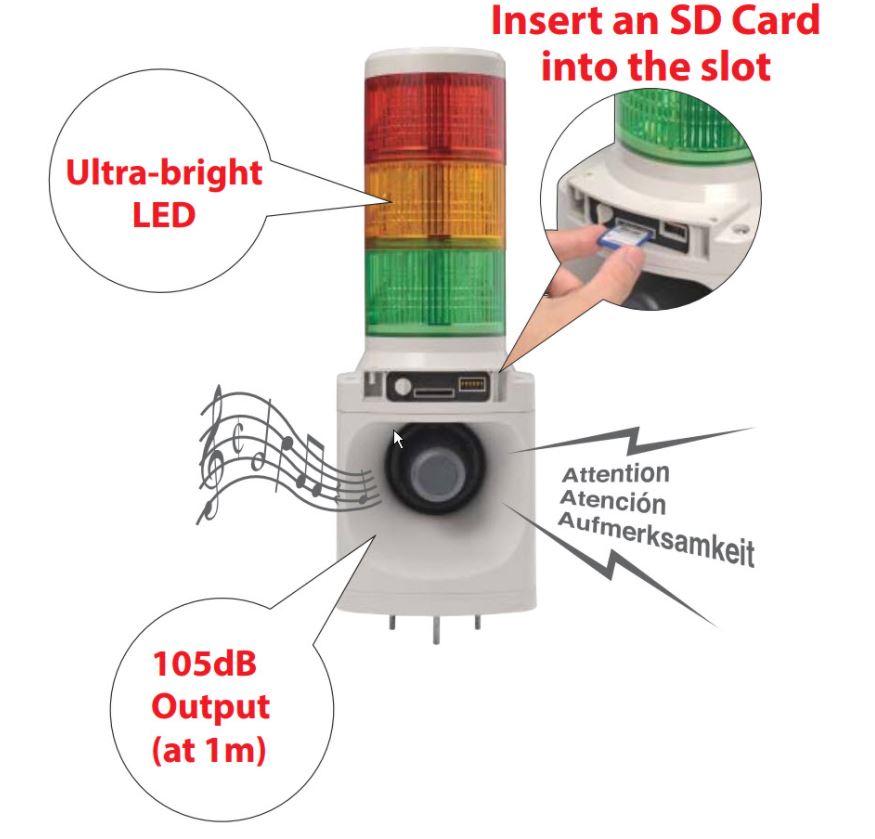

PATLITE SIGNALFX NHL-3FV1N Network Monitor Signal Tower with MP3 Custom Message & LED Light Status Indication
Regular price $2,999.00 Sale price $1,250.00 Save $1,749.00 |
|
NHL-3FV1N Network Monitoring Signal Tower with Custom MP3 Messages, Melody, Alarm Tones.
Network monitoring signal tower with MP3 Voice alerts, LAN connectivity, and input/outputs and line out for additional network functions.
|
PING Monitoring & Quick Notification Monitor & be notified of any NODE irregularities instantly by LED Warning Light and custom MP3 Voice messages. Actively Monitors system, software, device status and abnormalities. |
|
SNMP TRAP Monitoring SNMPv1 SNMPv2c Receive SNMP TRAP, quickly alerting the administrator or support with Clearly visibility LED Modular lights and Custom Sound. Catch notificaitons even when away from your screen. |
|
APPLICATION Monitoring Monitor Application status and be notified on any process or intrusion by creating custom commands to trigger the tower light. |
|
SOCKET Communication PHN PNS Command Compatibility |
|
RSH Trigger using RSH from Network Monitoring Software, IPS, other devices. Assign trigger to particular sounds, custom messages or LED colour module. |
|
SLMP Seamless Message Protocal / MC Protocol Compatibility Easy Connection to CC-Link IE Field Network systems in Industrial & IoT Automation applications |
|
PNS Manager Central Management Software for multiple tower lights on the same network. |
|
EMAIL Notification System Built-in for Remote monitoring SNMP v2c Auomatically forward logs and event information to upto 8 email address for remote monitoring of systems, software, hardware. |
|
|
 |
|
|
Model Specifications
| DIMENSIONS | - Tower diameter: 60mm - Overall dimensions: 113mm x 154mm x 350mm |
|---|---|
| OPERATING VOLTAGES | - 24V DC |
| PROTOCOLS | - Physical Layer: 10 BASE-T/100 BASE-TX - Data Link Layer: CSMA/CD - Network Layer: IP/ICMP/B6 - Transport Layer: TCP/UDP - Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP |
| FUNCTIONS | - Ping Device monitor - Digital Input and Output - RSH command - SNMP v1・v2C - Application monitor - SOCKET - E-mail Transmission - Line Out - Easy Access Volume Control - Preset Sound: Buzzer; 4 Selections Chime; 3 Selections Message; 3 Selections |
| BODY STYLE | Interface converter: - Low profile steel casing - Bumper pads installed to protect surface finish Tower: - Pre-assembled, mounted to converter base - LED modules are interchangeable |
| BODY COLOR | - Interface Converter Base: Off-white - Tower: Beige |
| STACKABLE TIERS | - 3 tiers only |
| MODULE COLORS | - LED source Color: Red/Amber/Green (only) - Lens Color: clear Lens |
| AUDIBLE STYLE | - Audio File Formal: MPEG1-Audio Layer Ⅲ (MP3) Sampling Frequency 44.1kHz - Bite Rate: 32kbit/s, 64kbit/s (Standard Rate), 128kbit/s Constant Bit Rate (CBR) Only - Number of Playback Messages: USB Memory Transfer Package: 30 kinds Web Setup Tool Registrations: 30 kinds Preset Registrations: 10 kinds |
| CONFORMITY STANDARDS | - CE Marking - UL 1638, CAN/ULC-S526 - RoHS (EN50581) - FCC Part 15 Subpart B Class A - EMC Directive (EN 55032 (Class A), EN 55024) |
| PROTECTION RATINGS | - IP20 (IEC 60529) |
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!
PATLITE LA6-POE LA6-5DTNWB-POE Network POE Ethernet LED Signal Tower Light
Regular price $2,000.00 Sale price $900.00 Save $1,100.00|
LA6-POE TCP/IP Modbus Network LAN Network Signal Tower for the Smart Factory, Retail, Information Technology, Security, System environment. World's No1 LED Status and Process Signal Tower Light Brand. Revolutionary LA6 Series Signal Tower! Change from the Traditional Simple 'STATUS DISPLAY' to 'PROCESS & TIME DISPLAY'. The LA6 can display gradual colour patterns and sounds reflecting Level Indication, Time Indication, Temperature Indication, Remote-Mirroring, Count Down Timer. Program your own Colours and patterns to create a LED Signal Tower Light that suits your application and environment. Every system is unique, and LA6 can adapt to suit your particular needs. Easily access via USB or over the Network for remote programming and triggering. This is the LED Indicating Signal Tower Light of the future! Programmable over the Network, Modbus, TCP/IP, Ethernet, Mirroring-Function, Power Over Ethernet (POE), Built-in Countdown Timer, 21 Colours, 11 Alarm Sounds. We have Price-Beat, Volume, Reseller, OEM, Project, Export discount programs. Contact us 'Request Quote' button below. We look forward to working with you in near future.
|
| Products Overview |
Product Features
This product has a new "Smart Mode" function; in addition to the"Signal Tower Mode", which can directly control the LED and buzzer like a standard signal tower. In the "Smart Mode", various displays can be shown, such as a slow flashing rate, simulating that of a firefly and a display that can be used as a level meter. In addition to the signal line input control, since it is compatible with the Power over Ethernet (henceforth, PoE), it can be operated through a LAN Cable, using Modbus/TCP protocol, to acquire signal tower status conditions via the network, and control it in the Signal Tower Mode or Smart Mode. Also, this product can use the mirroring function, in which one signal tower can show the same status as the other, but in a different location.
Since the Signal Tower is the LA6, the dedicated application software, "EDITOR for LA series" can be used to reflect the setting data via the network.
Model Specifications
| DIMENSIONS | - 60mm Diameter |
|---|---|
| OPERATING VOLTAGES | - 24V DC Power over Ethernet (PoE): 48V DC |
| FUNCTIONS | Operational Method: - Signal Wire Control - Command Control |
| BODY STYLE | - TN : Direct Mount Type - SN : Stationary Type |
| BODY COLOR | - Off-white Only |
| STACKABLE TIERS | - 5 Tier Only |
| MODULE COLORS | Display Color Variations - Signal Tower Mode: 9 Colors - Smart Mode: 21 Colors |
| AUDIBLE STYLE | - 11 alarm sounds available |
| CONFORMITY STANDARDS | - EMC Directive - RoHS Directive - UL 508 - FCC - KC |
| PROTECTION RATINGS | - IP54 (IEC 60529) |
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!
PATLITE LA6-POE LA6-5DSNWB-POE Network POE Ethernet LED Signal Tower Light
Regular price $2,000.00 Sale price $1,000.00 Save $1,000.00|
LA6-POE TCP/IP Modbus Network LAN Network Signal Tower for the Smart Factory, Retail, Information Technology, Security, System environment. World's No1 LED Status and Process Signal Tower Light Brand. Revolutionary LA6 Series Signal Tower! Change from the Traditional Simple 'STATUS DISPLAY' to 'PROCESS & TIME DISPLAY'. The LA6 can display gradual colour patterns and sounds reflecting Level Indication, Time Indication, Temperature Indication, Remote-Mirroring, Count Down Timer. Program your own Colours and patterns to create a LED Signal Tower Light that suits your application and environment. Every system is unique, and LA6 can adapt to suit your particular needs. Easily access via USB or over the Network for remote programming and triggering. This is the LED Indicating Signal Tower Light of the future! Programmable over the Network, Modbus, TCP/IP, Ethernet, Mirroring-Function, Power Over Ethernet (POE), Built-in Countdown Timer, 21 Colours, 11 Alarm Sounds. We have Price-Beat, Volume, Reseller, OEM, Project, Export discount programs. Contact us 'Request Quote' button below. We look forward to working with you in near future.
|
| Products Overview |
Product Features
This product has a new "Smart Mode" function; in addition to the"Signal Tower Mode", which can directly control the LED and buzzer like a standard signal tower. In the "Smart Mode", various displays can be shown, such as a slow flashing rate, simulating that of a firefly and a display that can be used as a level meter. In addition to the signal line input control, since it is compatible with the Power over Ethernet (henceforth, PoE), it can be operated through a LAN Cable, using Modbus/TCP protocol, to acquire signal tower status conditions via the network, and control it in the Signal Tower Mode or Smart Mode. Also, this product can use the mirroring function, in which one signal tower can show the same status as the other, but in a different location.
Since the Signal Tower is the LA6, the dedicated application software, "EDITOR for LA series" can be used to reflect the setting data via the network.
Model Specifications
| DIMENSIONS | - 60mm Diameter |
|---|---|
| OPERATING VOLTAGES | - 24V DC Power over Ethernet (PoE): 48V DC |
| FUNCTIONS | Operational Method: - Signal Wire Control - Command Control |
| BODY STYLE | - TN : Direct Mount Type - SN : Stationary Type |
| BODY COLOR | - Off-white Only |
| STACKABLE TIERS | - 5 Tier Only |
| MODULE COLORS | Display Color Variations - Signal Tower Mode: 9 Colors - Smart Mode: 21 Colors |
| AUDIBLE STYLE | - 11 alarm sounds available |
| CONFORMITY STANDARDS | - EMC Directive - RoHS Directive - UL 508 - FCC - KC |
| PROTECTION RATINGS | - IP54 (IEC 60529) |
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!
PATLLITE IP66 QUIANT EX ST-PA-LR6 ATEX IECx Zone1 Zone2 Zone21 Zone22 Explosion Proof Hazardous Area
Regular price $4,950.00 Sale price $2,250.00 Save $2,700.00ST-PA-LR6 series Explosion Proof Intrinsically Safe Hazardous Area LED Signal Tower Light.
World's First IP66 QUIANT-EX ST-PA-LR6 ATEX IECx Zone1 Zone2 Zone21 Zone22 Explosion Proof Intrinsically Safe Hazardous Area LED Multi Status Indicating LED Tower Light and Alarm Sounder. Highest Quality Engineering and Multi-Zone approval by World's most recognized testing agencies. ATEX / IECx / EAC Approvals. Global Leaders in Industrial Signal hardware manufacturing.
- The ST-PA-LR6 models are innovative LED maintenance-free Explosion-proof Signal Towers. Their robust design, along with pressure and flame-proof housing is ideal for use in potentially flammable and hazardous explosive environments, such as chemical, petrochemical, combustible dust, mineral/natural gas production; as well as for the food and beverage industries.
Product Features
- Housing: Aluminum alloy
- Glass: Borosilicate glass
- Terminals: Easy wire connection to the Signal Tower by opening the bottom.
- Mounting: Upright, Wall Mount, Vertical-mount, and Horizontal Mount.
- Voltage: 24V DC, 100-240V AC are available.
- Wire core size: 0.5mm2~2.5mm2, AWG20~AWG14
Model Specifications
| OPERATING VOLTAGES | - 02: 24V DC - M2: 100-240V AC |
|---|---|
| MOUNTING | - Vertical Mount - Horizontal Mount |
| BODY COLOR | - Enclosure: Grey - Signal tower : Off-white |
| STACKABLE TIERS | - 5-tier only |
| MODULE COLORS | - Red - Amber - Green - Blue - Clear |
| CONFORMITY STANDARDS | -  II 2G Ex db IIC T6/T5 Gb- II 2G Ex tb IIIC T120°C Db- EN 60079-0, EN 60079-1, EN 60079-31 - 2014/34/EU - CE |
| PROTECTION RATING | - IP66 |
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!
USB LED Indication Light for SACAT Retail Self Service Checkout Systems, Printing, Packaging, Medical Machines
Regular price $695.00 Sale price $250.00 Save $445.00LR6-USB Linux & Windows Compatible LED Signal Tower
Directly Triggered and Powered via USB interface. Compatible with Windows(R) and Linux.No1 LED Device brand in the World! PATLITE SIGNALFX LR6-USBW USB Powered LED Indicating Signal Tower Light with option of 1 to 5 Colours. Red, Yellow, Green, Blue, White, choose and combine with the LR6 LED Signal Tower Light Modules to create your any colour combination suited to your system or application. Suitable for any USB compatible computer system or Linux based hardware. Compatible with Linux or Windows OS. Contact us today with your application and requirement and we will do our best to support you for long term cooperation.
We have Volume QTY, OEM, Project, Reseller, Export discount programs & Competitor-Price-Beat Policy. Please contact us to discuss further. We look forward to working with you in near future.
| Products Overview | Product Categories |
Product Features
- Controlled by PC.
- Custom programming made easy with our free software library (.DLL).
- Open architecture makes it possible to control the device with other operating systems such as Linux.
- Supports HID class. No exclusive drivers necessary.
- Supports solid color, clear-globe, and 7-in-1 multi-color LED units.
- IP65 protection rating - High water and dust protection.
Model Specifications
| OPERATING VOLTAGES | - 5V DC (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard) |
|---|---|
| PROTOCOLS | - USB 2.0 - Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10 - Compatible with open-source software operating systems such as Linux |
| FUNCTIONS | - LED units and Buzzer is controlled by a PC via USB interface. |
| CONFORMITY STANDARDS | - UL - FCC - EMC Directive - RoHS - KC |
| PROTECTION RATINGS | - IP65 (IEC 60529), except when pole or wall mounted. - NEMA Type 4X, 13 |
Patlite & SignalFx Sales Support Contact Information
Australia, New Zealand, Pacific Regions
Phone. 03 9001 2000 Global: +61 3 9001 2000
Email. sales@patsig.com.au sales@signalfx.com.au
Address. L14 200 Queen St. Melbourne VIC 3000 AUSTRALIA
(BY APPOINTMENT ONLY)
For all sales, wholesale, distributor, OEM, project, accounts, support enquiries please consult your account manager or email Official distributor channel directly on admin@patsig.com.au
For all Quote requests please include application details, qty required, frequency, requirement along with your full contact information. You may also email the Official ANZ sales channel directly on admin@patsig.com.au
AFTER HOURS Sales Support SEND A TEXT (SMS) to Australia Ph. 0411277998 NZ & Global Ph. +61411277998 for a faster response time.
We thank you for visiting our website and looking forward to talking with you!
