'SAFE TO THE EYE' Standard, Water, Oil & Chemical Resistant LED Work lights for Electrical, Industrial, Scientific, Medical, Manufacturing, Meat, Food & Beverage Processing, CNC & Machine, Retail, Aviation, Oil and Gas, Mining, Vision Inspection, Machine Vision Industries + Public & Private Building Infrastructure.
CWA IP65 LED Lighting for Cabinets, Railway, Buildings CNC, Enclosures I Industrial Grade Australia & NZ I Factory Direct Call For Best Pricing.
Regular price $250.00 Sale price $115.00 Save $135.00REPLACE YOUR FLURO'S TODAY. SAVE ENERGY & REDUCE COSTS. USE PATLITE CWA LED WORK LIGHTS. THE ONLY INDUSTRIAL GRADE GLOBAL BRAND WITH CONSIDERATION TO ' LONG TERM EYE SAFETY'.
PATLITE SIGNALFX CWA IP65 LED Lighting for Electrical Cabinets, Food Cabinets, Machine Vision, CNC Machine LED Lighting, Food & Beverage Inspection, Cabinets, Industrial, Retail, vending Machines, Commercial, Transportation, Buildings, Aviation applications. Contact us for more information, OEM, distributor discounts.
-

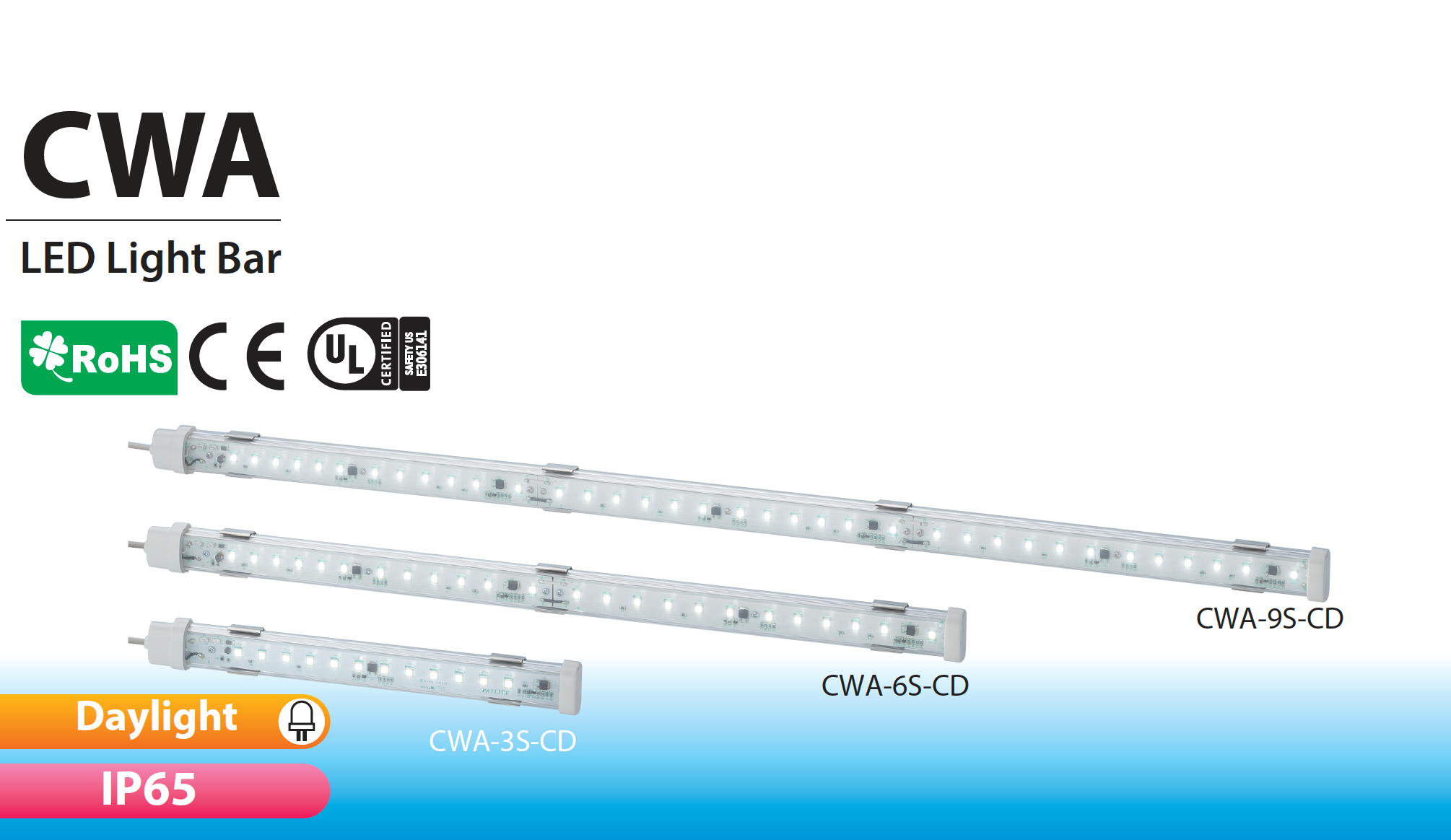

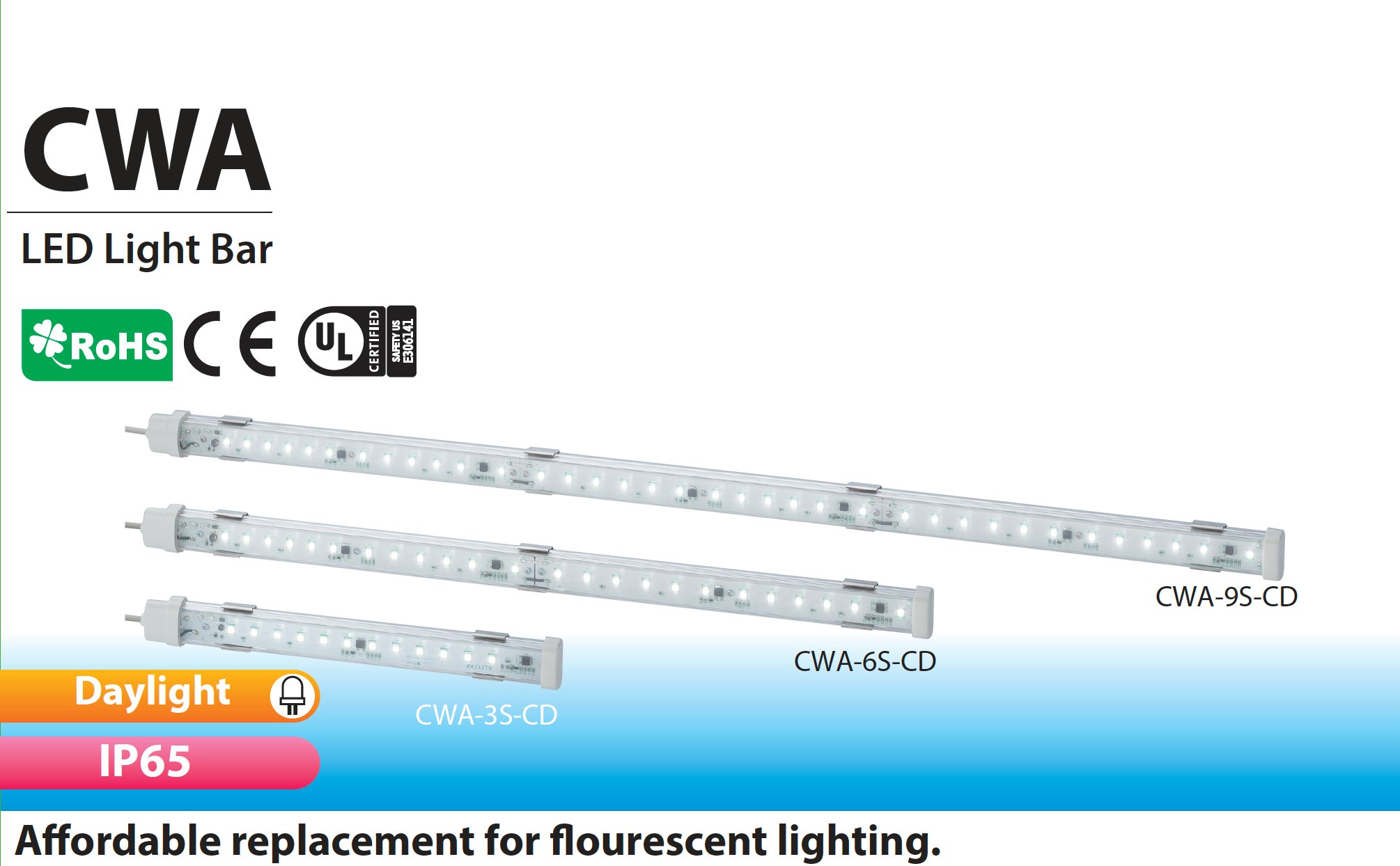

CWA LED Light Bar
- An affordable replacement, the slim LED light bar can outperform a conventional fluorescent lamp. The protection rating of IP65 is a standard which allows installation in most common environments.
Product Features
- Available for DC 24V applications
- Long-lasting LED’s greatly reduce maintenance costs
- Total luminous flux of 350lm, 100lx luminance at 1m (Voltage:DC24V)
- A set of two stainless-steel mounting brackets is a standard accessory
- Operating temperature range from -30 to +60 degrees C.
- LED color temperature is Daylight (6500K)
Model Specifications
DIMENSIONS | Lengths: - 300mm - 600mm - 900mm |
---|---|
OPERATING VOLTAGES | - 300mm Length: DC24V, 175mA, - 600mm Length: DC24V, 365mA - 900mm Length: DC24V, 550mA |
FUNCTIONS | - 300mm Length: 100 lux, 350 lum - 600mm Length: 200 lux, 700 lum - 900mm Length: 300 lux, 1050 lum |
MOUNTING | - Mount in any direction with the brackets included |
LIGHT SOURCE | - High power LED Array |
LENS MATERIAL | - Polycarbonate Resin |
CONFORMITY STANDARDS | - RoHS - CE - UL |
PROTECTION RATINGS | - IP65 (IEC 60529) |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

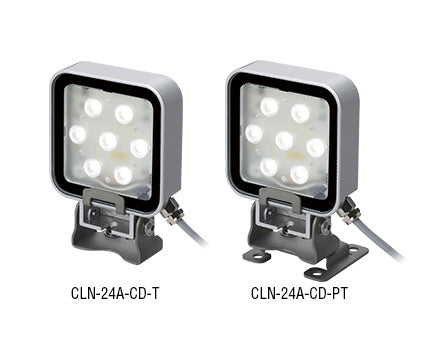

IP69K LED Lighting Water Oil Chemical Resistant Ultra-bright LED Worklight with IP66G, IP67G, IP69K I PATLITE SIGNALFX AUSTRALIA FACTORY DIRECT I CALL FOR BEST PRICE
Regular price $0.00 Save $0.00Oil, Water, Chemical Resistant IP Rated Ultra Bright Industrial LED Work Lights Lighting. IP69K Perfect for Meat, Food and Beverage Processing, Medicine Manufacturing, CNC Machinery, Retail, Semi-Conductor, Scientific Clean Room environments and more. Contact us today for QTY, OEM, distributor discounts.

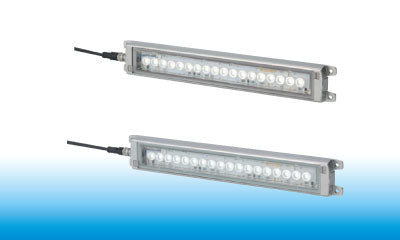

CLK-AG Worklight CLK Series
Water, Oil, Chemical Resistant, Ultra-bright LED Worklight with IP66G, IP67G, IP69K
Water, Oil and Chemical Resistant LED Light Bar with an illuminance of 2,100lx. (Measurement based on CLK6S-24AG-CD)
FEATURES
• Attained the IP69K standard for the meat, food processing, beverages and medicine manufacturing industries which demands the waterproofing performance. It also corresponds to IP66G/67G standards.
• Special design to reduce “Blinding Light” eff ect, reducing the risk of retinal damage (EN62471-2 for Photobiological Safety of Lamps and Lamp Systems).
• The product lineup includes three sizes (200mm, 300mm, 600mm), two colors (Daylight, Natural White), and diff erent series (Side-exit Cable;
M12 Quick-disconnect; Aluminum Alloy and Stainless Steel Body) for various applications.
• The operating temperature range from -40c to +60c allows installation in sub-freezing temperatures, such as walk-in freezers.
• Slim Profile
• Corresponds to Europe's RoHS Directive.
• Conforms to CE requirements.
• UL Listed (File No. E306141).
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Model Specifications
DIMENSIONS | - 200mm - 300mm - 600mm |
---|---|
VOLTAGES | - DC24V (Polarized) |
BODY STYLE | - Side-exiting Cable Series - M12 Quick Disconnect Series - M12 Daisy Link Quick Disconnect Series - Stainless Steel Body Series |
LENS MATERIAL | - Tempered Glass - Acrylic Resin Glass |
CONFORMITY STANDARDS | - CE - UL Listed (Side-exiting Cable Series) - UL Recognized Component (M12 Quick Disconnect Series) - IEC62471-2 - RoHS |
IP Rating | - IP66G - IP67G - IP69K |
Accessories
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

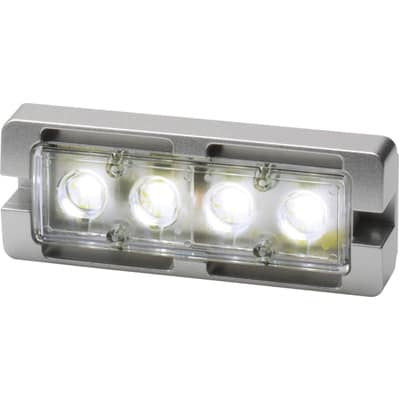

IP67, IP68, IP69, IP69K Oil Water Chemical Resistant IP69K Industrial LED Lighting I PATLITE SIGNALFX AUSTRALIA FACTORY DIRECT I CALL FOR BEST PRICE
Regular price $0.00 Save $0.00Oil Water Chemical Proof Resistant IP67, IP68, IP69, IP69K Rated Industrial LED Machine Lights Lighting. Perfect for CNC Machinery, Food & Beverage Processing, Macine Vision, Vision Inspection, Food & Beverage Cabinets, Retail, Scientific & Medical environments and more. Contact us today for QTY, OEM, distributor discounts.
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

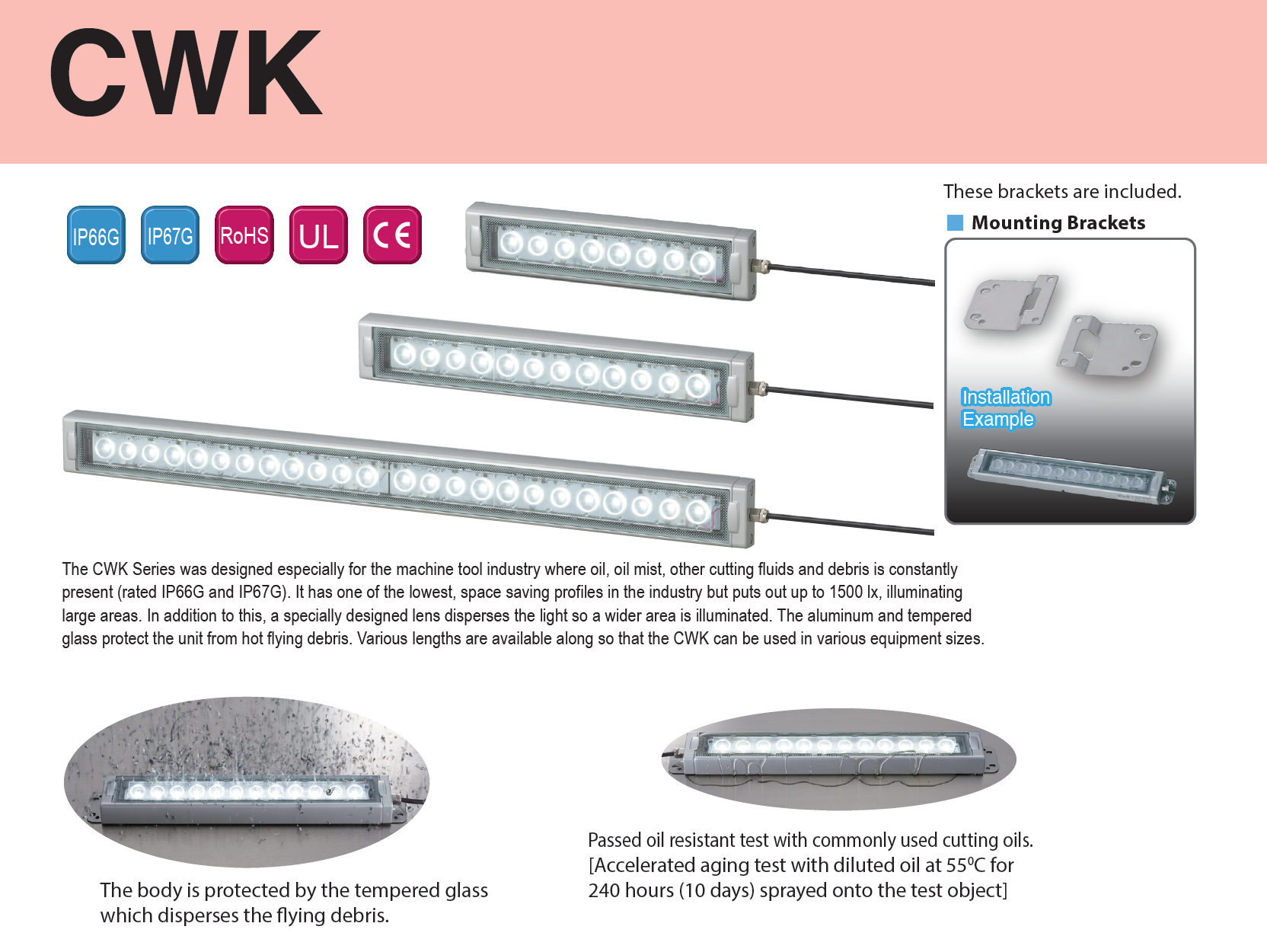

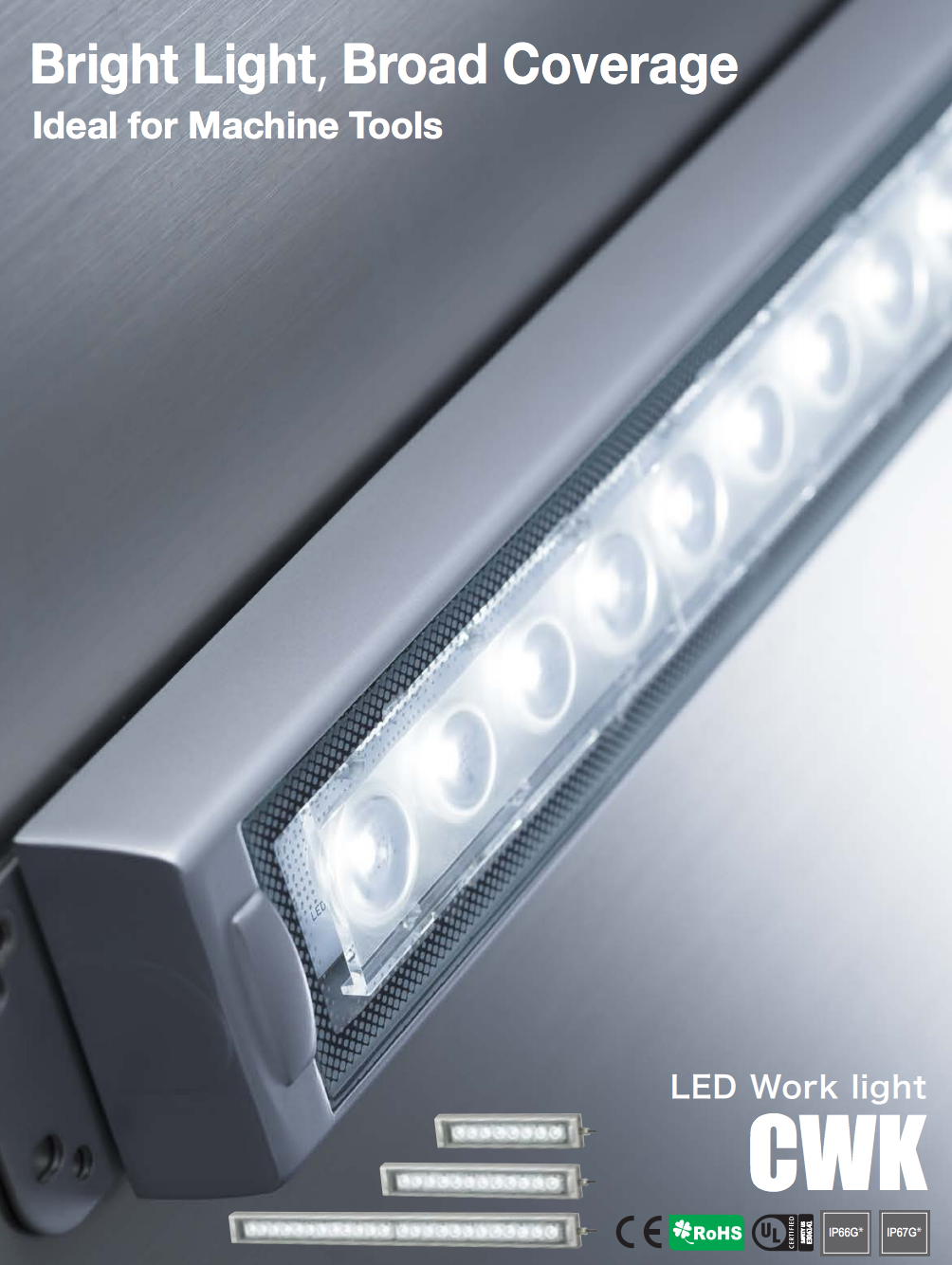

IP66G IP67G 6500K CWK LED Lighting Machine Vision. Perfect for CNC Tooling
Regular price $200.00 Save $-200.00- CWK LED CNC Machine Vision Inspection
- Water and Oil Resistant, long-life ultra-bright LED Worklight with IP66G and IP67G ratings designed exclusively for the machine tooling industry. With its compact and environmentally resistant design, its imperviousness to flying scrap metal and oils makes it a perfect solution for tooling machinery.
Product Features
- Impervious to Water and Oils
- Includes PATLITE's own 'Optimal Lens' design to widen light distribution.
- Available in three lengths of 200mm, 300mm and 600mm
- 3m oil resistant side cable available
- Designed especially for the Machine Tooling Industry
Model Specifications
DIMENSIONS |
- 200mm - 300mm - 600mm |
---|---|
OPERATING VOLTAGES | - DC24V (Polarized) |
BODY STYLE | - 3m Oil-resistant Side-exiting Cable - Aluminum Body |
LENS MATERIAL | - Tempered Glass |
CONFORMITY STANDARDS | - CE - UL - IEC62471-2 - RoHS |
PROTECTION RATINGS | - IP66G - IP67G |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!












ATEX CLN-EX Explosion-safe LED Work Light EX ATEX II 3GD Ex nA IIC T4 Gc, Ex tc IIIC T135ーC Dc IP65 I I PATLITE SIGNALFX AUSTRALIA FACTORY DIRECT I CALL FOR BEST PRICE
Regular price $1,850.00 Sale price $1,150.00 Save $700.00CLN-EX Explosion-safe LED Work Light
The newly-designed LED Work Light model CLN for Explosion-safe applications. With a thickness of 22.2mm, a brightness of 820lx, IP ratings of 66G/67G, 69K, LED Colors of Daylight (6500K) and mounting flexibility with a flexible angle adjustment of 180 degrees, and now for Explosion-safe applications, the CLN can be attached anywhere for ATEX applications.
CLICK HERE FOR CLN-EX PRODUCT LINK & PDF DOWNLOAD
Product Features
• Resistant to Water, Oil and Coolants
• Special design disperses heat radiation with illumination to surpass a 40W light bulb.
• Bracket options (Pan-tilt),
• Two directions (Up-down, Swivel) for attachment to adapt to various scenarios.
• Color (Daylight)
• Operating temperature range of -40 to +60°C allows installation in sub-freezing temperature environments, such as cold storage warehouses.
• Conforms to the CE requirements.
• II 3GD Ex nA IIC T4 Gc, Ex tc IIIC T135ーC Dc IP65
(This product is limited to a maximum allowable impact of 2 Joules (1kg dropped from 0.2m))
NOTE: THIS PRODUCT IS MADE TO ORDER AND CARRIES A LEAD TIME. PLEASE ENQUIRE WITH US TO CHECK SUITABILITY.
Model Specifications : CLN-24-CD-PT-EX
DIMENSIONS | - Refer to Specification Sheet |
---|---|
OPERATING VOLTAGES | - 24V DC ±10% |
BODY STYLE | - Aluminum Alloy |
LENS MATERIAL | - Tempered Glass |
CONFORMITY STANDARDS | - RoHS Conformity - UL Listed - IEC62471-2 - CE Conformity - Ex Conformity |
PROTECTION RATINGS | - IP66G/67G (JIS C0920) - 69K (DIN 40050 part9) |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!


















CLM CLM-24 LED Lighting Machine work Light Vision Inspection I PATLITE SIGNALFX AUSTRALIA FACTORY DIRECT
Regular price $595.00 Sale price $225.00 Save $370.00CLM LED Work Light
Patlite CLM-24 LED Lighting for Machines & Vision Inspection. Water and Oil Resistance. The CLM-24 super bright LED work light is resistant to weather, dust, oil and water.
Product Features
- Enhanced Illumination: 5 super-bright white LEDs.
- Installation: Direct mount with 1 screw, 1 or 2 point angle-mount.
- Mounting Parts: Corrosion resistant stainless steel bracket and mounting screws.
- Main Body: Impact resistant robust aluminum alloy body.
- Glass: Impact resistant tempered glass
To go to the web page, Click here
DIMENSIONS | - 85mm Diameter |
---|---|
OPERATING VOLTAGES | - 24V DC |
BODY COLOR | - Body: Silver |
LENS MATERIAL | - Glass |
CONFORMITY STANDARDS | - CE Marking - UL pending - RoHS |
PROTECTION RATINGS | - IP67f |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

CLE-24N LED Machine Inspection Light Industrial Grade Vision I PATLITE SIGNALFX AUSTRALIA FACTORY DIRECT
Regular price $495.00 Sale price $150.00 Save $345.00
-
PATLITE CLE-24N LED Machine Light Vision Inspection Work Light
-
The CLE Working Light series uses LEDs for illumination.
Product Features
·Enhanced Illumination: Use of ultra-bright LEDs.
· Extended product life even in harsh environment.
· Energy-Efficient: Low power consumption and less heat build-up.
· Installation: Upright, inverted, sideways.
Model Specifications
DIMENSIONS | - 71mm diameter |
---|---|
OPERATING VOLTAGES | - 24V DC |
FUNCTIONS | - Continuous Only |
MOUNTING | - Indoor, any direction - bracket-mount |
BODY STYLE | - Pre-assembled, pre-wired - Anodized aluminum - rust, corrosion & oil-proof |
BODY COLOR | - Body: Gray |
LIGHT SOURCE | - 24 LEDs, high luminosity - Color available in Clear (White) - Average Service Life (specified when brightness decreases to 70%): 40,000 hours |
LENS MATERIAL | - Reinforced shock resistant glass - Lens glass is frosted for CLE-24 - Lens is clear for CLE-24N |
CONFORMITY STANDARDS | - CE Marking |
PROTECTION RATINGS | - IP-65F |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!




CLE-24 LED Machine Inspection Light Industrial Grade Vision I PATLITE SIGNALFX AUSTRALIA FACTORY DIRECT
Regular price $495.00 Sale price $150.00 Save $345.00
-
PATLITE CLE-24 LED Machine Light Vision Inspection Work Light
-
The CLE Working Light series uses LEDs for illumination.
Product Features
- Enhanced Illumination: Use of ultra-bright LEDs.
- Extended product life even in harsh environment.
- Energy-Efficient: Low power consumption and less heat build-up.
- Installation: Upright, inverted, sideways.
Model Specifications
DIMENSIONS | - 71mm diameter |
---|---|
OPERATING VOLTAGES | - 24V DC |
FUNCTIONS | - Continuous Only |
MOUNTING | - Indoor, any direction - bracket-mount |
BODY STYLE | - Pre-assembled, pre-wired - Anodized aluminum - rust, corrosion & oil-proof |
BODY COLOR | - Body: Gray |
LIGHT SOURCE | - 24 LEDs, high luminosity - Color available in Clear (White) - Average Service Life (specified when brightness decreases to 70%): 40,000 hours |
LENS MATERIAL | - Reinforced shock resistant glass - Lens glass is frosted for CLE-24 - Lens is clear for CLE-24N |
CONFORMITY STANDARDS | - CE Marking |
PROTECTION RATINGS | - IP-65F |
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!




CLF10-24-C LED Machine Inspection Light Industrial Grade Vision I PATLITE SIGNALFX AUSTRALIA FACTORY DIRECT
Regular price $495.00 Sale price $150.00 Save $345.00PATLITE Vision Inspection IP Rated CLF10-24-C Industrial Grade Vision Systems LED illuminating Light Bar for Machinery
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

IP69K LED Lighting Work lights. Perfect for Vision Inspection, Food & Beverage, Machines, Cabinets, Processing I PATLITE SIGNALFX AUSTRALIA I CALL TODAY FOR OEM AND WHOLESALE PRICING PH 03 9001 2000
Regular price $395.00 Sale price $195.00 Save $200.00Product Features
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.
Specifications
DIMENSIONS | Overall dimensions without brackets ・ 124mm x 30mm x 19.5mm ・ 224mm x 30mm x 19.5mm ・ 324mm x 30mm x 19.5mm ・ 624mm x 30mm x 19.5mm ・ 924mm x 30mm x 19.5mm ・ 1224mm x 30mm x 19.5mm |
RATED VOLTAGE | 24V DC |
FUNCTIONS | Continuous Only |
MOUNTING | ・ Snap-in screw mounted bracket ・ Snap-in magnetic mounted bracket ・ Side mounted brackets ・ Indoor, any direction |
BODY STYLE | ・ Polycarbonate housing ・ Pre-assembled, pre-wired |
BODY COLOR | Body: Translucent-white |
LIGHT SOURCE | ・ High-intensity LED chip, Daylight ・ High-intensity LEDchip, Amber (324mm sizes only) ・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours |
LENS MATERIAL | Translucent-white Polycarbonate Resin |
CONFORMITY STANDARDS | ・ CE Marking ・ UL ・ RoHS |
PROTECTION RATING | ・ IP66 ・ IP67 ・ IP69K |
Movie
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!








CLA1S-24A-CD-30 100mm DC24V LED light bar, IP66, IP67, IP69k, polycarbonate body, Daylight White w/3m cable
Regular price $395.00 Sale price $195.00 Save $200.00No1 Global LED Signaling and Lighting Brand with Highest Industrial quality and Safety Standards.
CLA / CLA-A LED Machine Lights Light Bar. IP69K Conformity, Ultra-bright Uniform LED Illumination, six Different Sizes, Waterproof
CLA1S-24A-CD-30
100mm Length, DC24V, LED Lighting Work light bar,
Featuring
IP69K, IP68, IP67, IP66, IP65 - Highest Industrial Standard and Value.
3m Cable
6800K Daylight White
Polycarbonate
Conformity: CE, UL, ROHS. Designed to be 'SAFER' TO EYE.
Product Features
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.
Specifications
DIMENSIONS | Overall dimensions without brackets ・ 124mm x 30mm x 19.5mm ・ 224mm x 30mm x 19.5mm ・ 324mm x 30mm x 19.5mm ・ 624mm x 30mm x 19.5mm ・ 924mm x 30mm x 19.5mm ・ 1224mm x 30mm x 19.5mm |
RATED VOLTAGE | 24V DC |
FUNCTIONS | Continuous Only |
MOUNTING | ・ Snap-in screw mounted bracket ・ Snap-in magnetic mounted bracket ・ Side mounted brackets ・ Indoor, any direction |
BODY STYLE | ・ Polycarbonate housing ・ Pre-assembled, pre-wired |
BODY COLOR | Body: Translucent-white |
LIGHT SOURCE | ・ High-intensity LED chip, Daylight ・ High-intensity LEDchip, Amber (324mm sizes only) ・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours |
LENS MATERIAL | Translucent-white Polycarbonate Resin |
CONFORMITY STANDARDS | ・ CE Marking ・ UL ・ RoHS |
PROTECTION RATING | ・ IP66 ・ IP67 ・ IP69K |
Movie
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!








CLA1S-24A-CD 100mm DC24V LED light bar, IP66, IP67, IP69k, polycarbonate, 6800K Daylight
Regular price $395.00 Sale price $165.00 Save $230.00'SAFER FOR THE EYE". No1 Global LED Signaling and Lighting Brand with Highest Industrial Quality, Conformity, IP and Safety Standards.
CLA / CLA-A LED Machine Lights Light Bar. IP69K Conformity, Ultra-bright Uniform LED Illumination, six Different Sizes, Waterproof
Model: CLA1S-24A-CD
Description: 100mm Length, DC24V, LED Lighting Work light bar,
- IP69K, IP68, IP67, IP66, IP65
- 0.5m Cable
- 6800K Daylight White
- Polycarbonate
- Conformity: CE, UL, ROHS.
- Highest Industrial Standards, Conformity, Quality and Value.
Product Features
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.
Specifications
DIMENSIONS | Overall dimensions without brackets ・ 124mm x 30mm x 19.5mm ・ 224mm x 30mm x 19.5mm ・ 324mm x 30mm x 19.5mm ・ 624mm x 30mm x 19.5mm ・ 924mm x 30mm x 19.5mm ・ 1224mm x 30mm x 19.5mm |
RATED VOLTAGE | 24V DC |
FUNCTIONS | Continuous Only |
MOUNTING | ・ Snap-in screw mounted bracket ・ Snap-in magnetic mounted bracket ・ Side mounted brackets ・ Indoor, any direction |
BODY STYLE | ・ Polycarbonate housing ・ Pre-assembled, pre-wired |
BODY COLOR | Body: Translucent-white |
LIGHT SOURCE | ・ High-intensity LED chip, Daylight ・ High-intensity LEDchip, Amber (324mm sizes only) ・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours |
LENS MATERIAL | Translucent-white Polycarbonate Resin |
CONFORMITY STANDARDS | ・ CE Marking ・ UL ・ RoHS |
PROTECTION RATING | ・ IP66 ・ IP67 ・ IP69K |
Movie
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!








CLA2S-24A-CD 200mm DC24V LED light bar, IP66, IP67, IP69k, polycarbonate, 6800K Daylight
Regular price $395.00 Sale price $165.00 Save $230.00'SAFER FOR THE EYE". No1 Global LED Signaling and Lighting Brand with Highest Industrial Quality, Conformity, IP and Safety Standards.
Model: CLA2S-24A-CD
LED Vision Inspection Lighting Work light bar
- IP69K, IP68, IP67, IP66, IP65
- 200mm Length
- 6800K Daylight White
- DC 24V
- 0.5m Cable
- Polycarbonate
- Conformity: CE, UL, ROHS.
- Highest Industrial Standards, Conformity, Quality and Value.
CLA / CLA-A LED Machine Lights Light Bar. IP69K Conformity, Ultra-bright Uniform LED Illumination, six Different Sizes, Waterproof
Product Features
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.
Specifications
DIMENSIONS | Overall dimensions without brackets ・ 124mm x 30mm x 19.5mm ・ 224mm x 30mm x 19.5mm ・ 324mm x 30mm x 19.5mm ・ 624mm x 30mm x 19.5mm ・ 924mm x 30mm x 19.5mm ・ 1224mm x 30mm x 19.5mm |
RATED VOLTAGE | 24V DC |
FUNCTIONS | Continuous Only |
MOUNTING | ・ Snap-in screw mounted bracket ・ Snap-in magnetic mounted bracket ・ Side mounted brackets ・ Indoor, any direction |
BODY STYLE | ・ Polycarbonate housing ・ Pre-assembled, pre-wired |
BODY COLOR | Body: Translucent-white |
LIGHT SOURCE | ・ High-intensity LED chip, Daylight ・ High-intensity LEDchip, Amber (324mm sizes only) ・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours |
LENS MATERIAL | Translucent-white Polycarbonate Resin |
CONFORMITY STANDARDS | ・ CE Marking ・ UL ・ RoHS |
PROTECTION RATING | ・ IP66 ・ IP67 ・ IP69K |
Movie
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!








CLF20-24-C LED Machine Inspection Light Industrial Grade Vision I PATLITE SIGNALFX AUSTRALIA
Regular price $495.00 Sale price $150.00 Save $345.00PATLITE Vision Inspection IP Rated CLF20-24-C Industrial Grade Vision Systems LED illuminating Light Bar for Machinery
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!

IP69K CLK *C-AG LED Machine Cabinet Work lights with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Regular price Sale price $495.00 Save $-495.00IP69K CLK *C-AG LED Worklight with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Specifications
DIMENSIONS | ・ 200mm ・ 300mm ・ 600mm |
RATED VOLTAGE | 24V DC (Polarized) |
BODY STYLE | ・ M12 Quick Disconnect Series ・ M12 Daisy Link Quick Disconnect Series |
LENS MATERIAL | ・ Tempered Glass |
CONFORMITY STANDARDS | ・ CE ・ UL Recognized Component (M12 Quick Disconnect Series) ・ IEC62471-2 ・ RoHS |
PROTECTION RATING | ・ IP66G ・ IP67G ・ IP69K |
Accessories
|
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!




NO-GLASS CLK3C-24SA-CD LED Light Bar SUS316 Stainless Steel IP69K SA PMMA reinforced acrylic resin LED Machine Cabinet Work lights with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Regular price $1,395.00 Sale price $595.00 Save $800.00IP69K CLK *C-SA LED Worklight with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Model Specifications
DIMENSIONS | - 300mm |
---|---|
RATED VOLTAGE | - DC24V (Polarized) |
BODY STYLE | - M12 Quick Disconnect Series - Stainless Steel Body Series |
LENS MATERIAL | - Tempered Glass - PMMA Resin + PET Resin + Tempered Glass |
CONFORMITY STANDARDS | - CE - IEC62471-2 - RoHS |
PROTECTION RATING | - IP66G - IP67G - IP69K |
Accessories
|
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!






CLK3C-24SG-CD LED Light Bar SUS316 Stainless Steel IP69K Shock resistant Tempered Glass SG LED Machine Cabinet Work lights with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Regular price $1,995.00 Sale price $795.00 Save $1,200.00IP69K CLK *C-SA LED Worklight with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Model Specifications
DIMENSIONS | - 300mm |
---|---|
RATED VOLTAGE | - DC24V (Polarized) |
BODY STYLE | - M12 Quick Disconnect Series - Stainless Steel Body Series |
LENS MATERIAL | - Tempered Glass - PMMA Resin + PET Resin + Tempered Glass |
CONFORMITY STANDARDS | - CE - IEC62471-2 - RoHS |
PROTECTION RATING | - IP66G - IP67G - IP69K |
Accessories
|
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!






CLK3C-24SG-CN LED Light Bar SUS316 Stainless Steel IP69K Shock resistant Tempered Glass SG LED Machine Cabinet Work lights with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Regular price $1,995.00 Sale price $795.00 Save $1,200.00IP69K CLK *C-SA LED Worklight with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Model Specifications
DIMENSIONS | - 300mm |
---|---|
RATED VOLTAGE | - DC24V (Polarized) |
BODY STYLE | - M12 Quick Disconnect Series - Stainless Steel Body Series |
LENS MATERIAL | - Tempered Glass - PMMA Resin + PET Resin + Tempered Glass |
CONFORMITY STANDARDS | - CE - IEC62471-2 - RoHS |
PROTECTION RATING | - IP66G - IP67G - IP69K |
Accessories
|
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!






IP69K PATLITE CLK3CL-24AG-CN LED Machine Cabinet Work lights with M12 Aluminum Body I Water, Oil, Chemical Resistant, Ultra-bright LED IP65 IP66G, IP67G, IP69K
Regular price $995.00 Sale price $675.00 Save $320.00IP69K CLK *C-AG LED Worklight with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Specifications
DIMENSIONS | ・ 300mm ・ 600mm |
RATED VOLTAGE | 24V DC (Polarized) |
BODY STYLE | ・ M12 Quick Disconnect Series (CLK**C Model) ・ M12 Daisy Link Quick Disconnect Series (This Model) |
LENS MATERIAL | ・ Tempered Glass |
CONFORMITY STANDARDS | ・ CE ・ UL Recognized Component (M12 Quick Disconnect Series) ・ IEC62471-2 ・ RoHS |
PROTECTION RATING | ・ IP66G ・ IP67G ・ IP69K |
Accessories
|
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!




IP69K PATLITE CLK6CL-24AG-CN 600mm LED Machine Cabinet Light bar Work lights with M12 Daisy Chain Aluminum Body I Water, Oil, Chemical Resistant, Ultra-bright LED IP65 IP66G, IP67G, IP69k
Regular price $995.00 Sale price $495.00 Save $500.00IP69K CLK *C-AG LED Worklight with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Specifications
DIMENSIONS | ・ 200mm ・ 300mm ・ 600mm |
RATED VOLTAGE | 24V DC (Polarized) |
BODY STYLE | ・ M12 Quick Disconnect Series ・ M12 Daisy Link Quick Disconnect Series |
LENS MATERIAL | ・ Tempered Glass |
CONFORMITY STANDARDS | ・ CE ・ UL Recognized Component (M12 Quick Disconnect Series) ・ IEC62471-2 ・ RoHS |
PROTECTION RATING | ・ IP66G ・ IP67G ・ IP69K |
Accessories
|
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA
Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC
Address 3. South Melbourne Business Center.
(BY APPOINTMENT ONLY)
Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.
For all Quote requests include
1. Your Company and contact Details
2. Application Detail / QTY required / Frequency of Requirement
AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.
We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.
We thank you for visiting our website and looking forward to talking with you!




IP69K PATLITE CLK3S-24AG-CN 300mm 600mm LED Machine Cabinet Work lights with lead wires Aluminum Body I Water, Oil, Chemical Resistant, Ultra-bright LED IP65 IP66G, IP67G, IP69K
Regular price $995.00 Sale price $495.00 Save $500.00IP69K CLK *C-AG LED Worklight with M12 I Water, Oil, Chemical Resistant, Ultra-bright LED I IP66G, IP67G, IP69K
Product Features
- Impervious to Water, Oil, and Chemicals
- Includes PATLITE's own 'Micro-array Lens" design to even out light distribution
- Available in three lengths of 200mm, 300mm and 600mm
- Three different Body and Lens Material combinations available
- Uses the popular M12 Quick Disconnect
- Can connect in series with Daisy Links (Using M12 Connectors)
Specifications
DIMENSIONS | ・ 200mm ・ 300mm ・ 600mm |
RATED VOLTAGE | 24V DC (Polarized) |
BODY STYLE | ・ M12 Quick Disconnect Series ・ M12 Daisy Link Quick Disconnect Series |
LENS MATERIAL | ・ Tempered Glass |
CONFORMITY STANDARDS | ・ CE ・ UL Recognized Component (M12 Quick Disconnect Series) ・ IEC62471-2 ・ RoHS |
PROTECTION RATING | ・ IP66G ・ IP67G ・ IP69K |
Accessories
|
Patlite SignalFx Product Sales & Support
Australia, New Zealand, Pacific Region Contact Information
Phone. 03 9001 2000 +61 3 9001 2000
Email. info@patled.com.au sales@signalfx.com.au
Address1.
