CLA1S-24A-CD 100mm DC24V LED light bar, IP66, IP67, IP69k, polycarbonate, 6800K Daylight

Regular price $395.00 Sale price $165.00 Save $230.00
1 in stock

'SAFER FOR THE EYE".      No1 Global LED Signaling and Lighting Brand with Highest Industrial Quality, Conformity, IP and Safety Standards.

CLA / CLA-A LED Machine Lights Light Bar. IP69K Conformity, Ultra-bright Uniform LED Illumination, six Different Sizes, Waterproof

Model: CLA1S-24A-CD
Description: 100mm Length, DC24V, LED Lighting Work light bar,

  • IP69K, IP68, IP67, IP66, IP65
  • 0.5m Cable
  • 6800K Daylight White
  • Polycarbonate
  • Conformity: CE, UL, ROHS.
  • Highest Industrial Standards, Conformity, Quality and Value.

Product Features

The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.

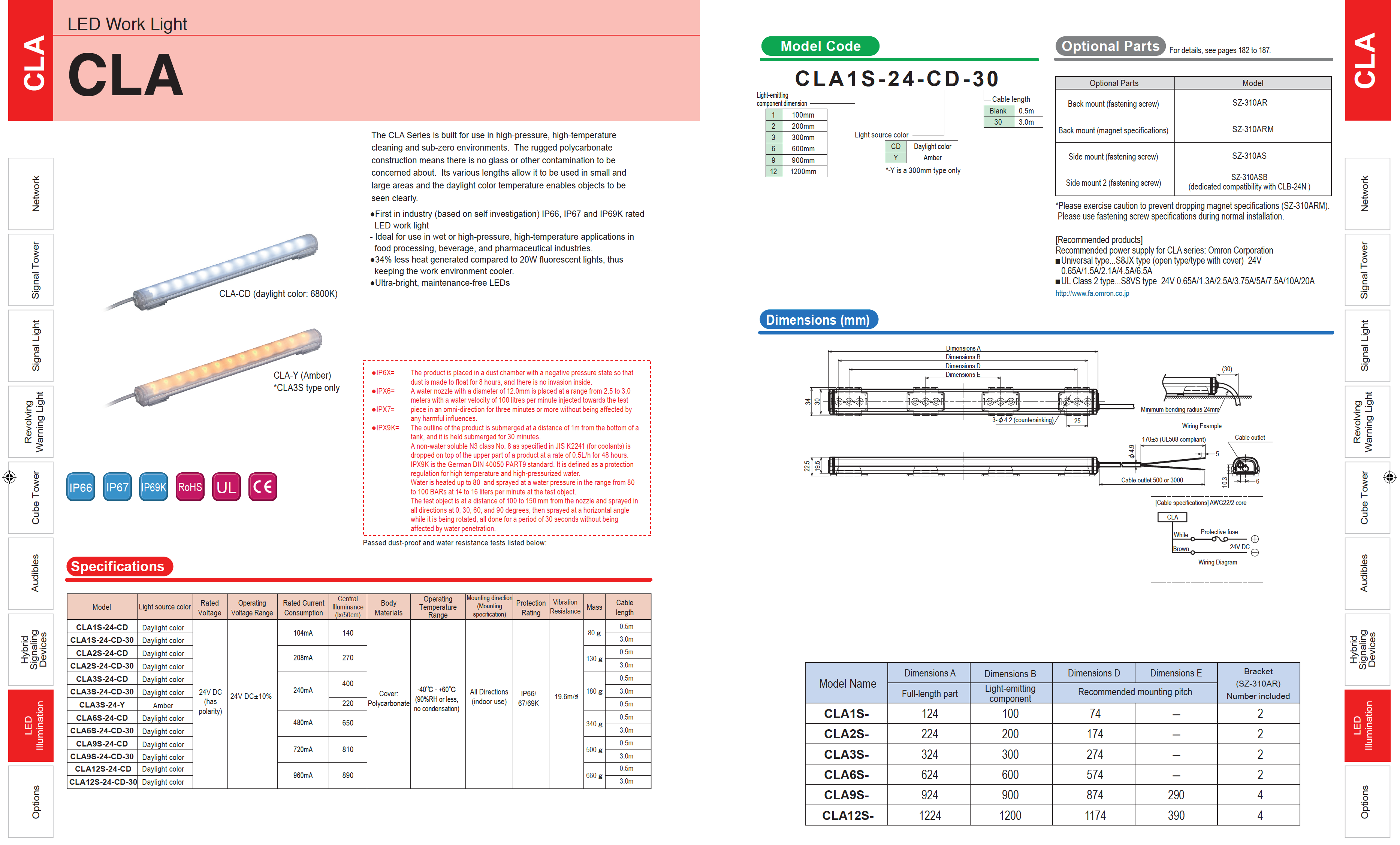

Specifications

DIMENSIONS Overall dimensions without brackets
・ 124mm x 30mm x 19.5mm
・ 224mm x 30mm x 19.5mm
・ 324mm x 30mm x 19.5mm
・ 624mm x 30mm x 19.5mm
・ 924mm x 30mm x 19.5mm
・ 1224mm x 30mm x 19.5mm
RATED VOLTAGE 24V DC
FUNCTIONS Continuous Only
MOUNTING ・ Snap-in screw mounted bracket
・ Snap-in magnetic mounted bracket
・ Side mounted brackets
・ Indoor, any direction
BODY STYLE ・ Polycarbonate housing
・ Pre-assembled, pre-wired
BODY COLOR Body: Translucent-white
LIGHT SOURCE ・ High-intensity LED chip, Daylight
・ High-intensity LEDchip, Amber (324mm sizes only)
・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours
LENS MATERIAL Translucent-white Polycarbonate Resin
CONFORMITY STANDARDS ・ CE Marking
・ UL
・ RoHS
PROTECTION RATING ・ IP66
・ IP67
・ IP69K
