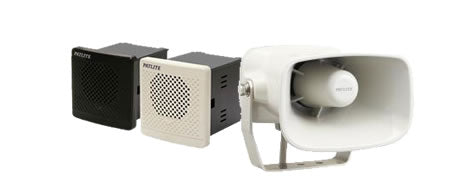

Voice, Alarm, MP3 Playback

All-in-one Built-in AMP with Alarm, Melody, Voice. Customizable MP3 version optional.

29 products

Sort

Sale

Ultra Thin! Voice Annunciator BSV - MP3 Recordable. Voice Sound Playback

$450.00 $225.00 Save $225.00

BKV Voice Annunciator Recordable MP3 Sound speaker

$0.00

Sale

PATLITE EWS EWHS Ew EWH EWS-100KA-Y EWS-100KA EWHS-100A-J Horn Speaker Alarm Melody Siren

PATLITE EWS EWHS Industrial Horn Speaker Alarm Melody Warning Sounder

$350.00 $325.00 Save $25.00

Sale

Patlite EWS Horn Speaker Alarm Melody Australia Europe USA NZ UK

Patlite EWS EWS-200KA-J Horn Speaker Alarm Warning Sounder

$795.00 $375.00 Save $420.00

Sale

PATLITE EWS EWHS Ew EWH EWS-100KA-Y EWS-100KA EWHS-100A-J Horn Speaker Alarm Melody Siren USA UK Australia Thailand Japan

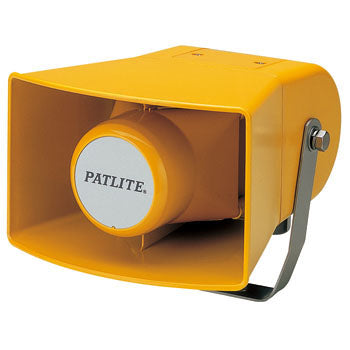

Patlite EWS EWS-100KA-Y Horn Speaker Alarm Buzzer Warning Sounder

$799.00 $295.00 Save $504.00

Sale

Patlite EWS EWS-100KA-J Horn Speaker Alarm Buzzer

$799.00 $425.00 Save $374.00

Sale

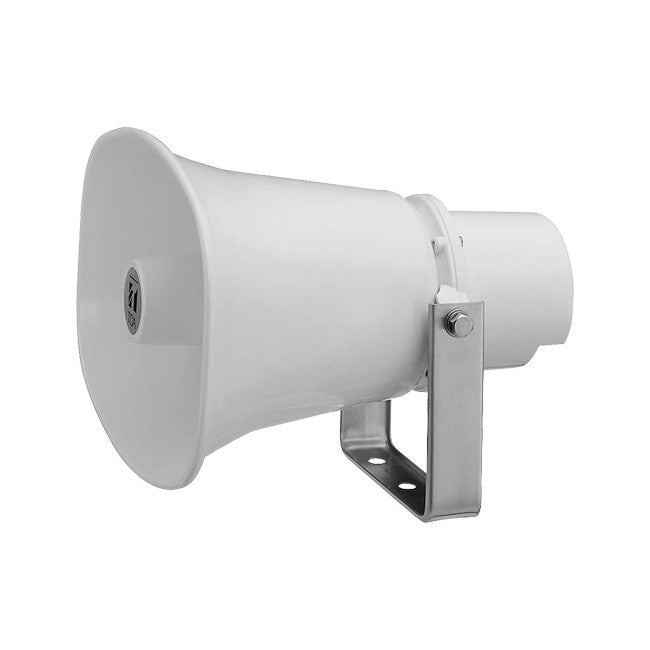

TOA SC630 SC-630 30W 8ohm Horn Speaker Paging Horn Speaker PA

TOA SC630 SC-630 30W 8ohm Horn Speaker Paging Horn PA

$150.00 $72.60 Save $77.40

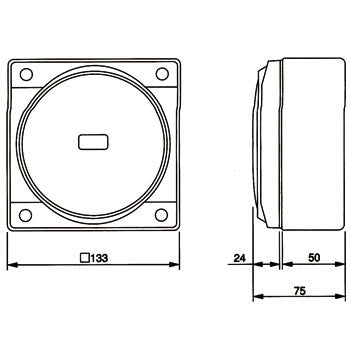

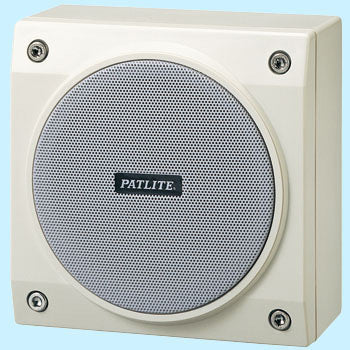

PATLITE EB-24LQ Compact Electronic Sounder Horn Speaker

$195.00

PATLITE EB-100KA Compact Electronic Sounder Horn Speaker

$195.00

PATLITE EB-24LS Compact Electronic Sounder Horn Speaker

$195.00

Sale

Application Monitoring PATLITE SignalFx NHL-3FV1 Australia New Zealand Singapore Nework Monitoring LED Signal Tower Facial Recognition Asset management Software NEC Fujitsu Cisco Palo Alto Fortinet Trend Micro Symantec HP SNMP PHN PHS CC-Link Fieldbus modbus ethernet etherCAT NHL

PATLITE SIGNALFX NHL-3FV1N Network Monitor Signal Tower with MP3 Custom Message & LED Light Status Indication

$2,999.00 $1,250.00 Save $1,749.00

Sale

Apple Industrial Patlite PES LED Steady Static Continuous Flashing LED Warning Light Beacon Indicating Lights Scurity Maintenance Indication Lamp Flashing Machine

PES LED Beacon Steady Static Flashing Warning Indicating Lights I PATLITE SIGNALFX Wholesale Direct I Australia NZ

$275.00 from $135.00 Save $140.00

Sale

PATLITE PEW LED Beacon Light Built-in Sounder Static Flashing

$295.00 from $195.00 Save $100.00

Sale

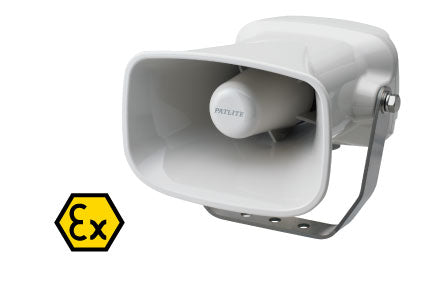

Patlite EHS-EX Hazardous Area Snpeaker Horn Alarm MP3 sigalfx australia explosion proof atex ex

Patlite SignalFx EHS-EX Explosion Proof Hazardous Area Horn Speaker MP3 Melody Alarm

$3,500.00 $1,750.00 Save $1,750.00

Sale

patlite lhe led tower light status indication signalfx

LHE-302AFB Mullti Colour Indication LED Tower Light Buzzer Flashing

$695.00 from $395.00 Save $300.00

Sale

Patlite LHE-402AFB Mullti Colour Indication LED Tower Light Buzzer Flashing

$695.00 from $395.00 Save $300.00

Sale

PATLITE LHE-502AFB Mullti Colour Indication LED Tower Light Buzzer Flashing

$695.00 $495.00 Save $200.00

Sale

Patlite LME-202FB-RY LME-202AFB-RY Tower Light Red, Yellow 24v

$450.00 $225.00 Save $225.00

Sale

PATLITE WME-302A-RYG LED Indicating Light Wall Mounting Multi Colour Indicating Light

$995.00 $495.00 Save $500.00

Sale

LR4 LED SIGNAL TOWER LIGHT MULTI COLOUR MACHINE INDICATING 3YR LED WARRANTY

$799.00 from $105.00 Save $694.00

Sale

patlite lr6 lrw-wc lr6-02wc lr6-302wcnw-ryg lr6-302wcbw-ryg led signal tower light australia new zealand machine indication smart factory m12 connector npt bracket pole red amber green yellow signalfx

Patlite LR6-302WCBW-RYG M12 Quick Connector Built-in NPT Bracket

$895.00 from $225.00 Save $670.00

Sale

LS7 LED SIGNAL TOWER LIGHT I PATLITE LS7-502SFBWH-RYGBC IP Rated and BEST for Clean rooms, Food & Beverage, CNC Machinery

$950.00 from $435.00 Save $515.00

Sale

PATLITE PS Series High Grade Static Indicating Beacon Light

$195.00 $95.00 Save $100.00

Sale

PATLITE PHE-3FB1-RYG RS-232C IT Network Monitoring LED Alarm Notification Signal Light Tower System Indication Warning MADE IN JAPAN

$995.00 $450.00 Save $545.00

Sale

Microsoft AZURE IoT Certified NHL-3FV2W Cloud Gateway with Cloud Application Monitoring + LED and Audio Warning Functionality

$2,950.00 from $1,395.00 Save $1,555.00

Sale

NHL-3FV2W LED Voice Warning Device for Network Monitoring Printing NID SIEMS Facial Recognition Software and hardware

$2,950.00 from $1,395.00 Save $1,555.00

Sale

NHL-3FV2W FUJI XEROX Networking Printer, Cloud Application Monitoring with LED and Audio Warning I PATLITE SIGNALFX AUSTRALIA CALL 03 9001 2000 for Enterprise Projects

$2,950.00 from $1,395.00 Save $1,555.00

Sale

NHL-3FV2W - FUJITSU Certified Network Cloud Application Monitoring, Audio Visual Warning Device I PATLITE SIGNALFX AUSTRALIA CALL 03 9001 2000 for Enterprise Projects

$2,950.00 from $1,395.00 Save $1,555.00

Sale

NHL-3FV2 NHP-2FV2 Network Monitoring LED and MP3 Alerting LED Signal Tower Light

$2,950.00 from $1,395.00 Save $1,555.00

Ultra Thin! Voice Annunciator BSV - MP3 Recordable. Voice Sound Playback

$450.00 $225.00 Save $225.00

Voice Annunciator BSV

The new slim-designed BSV is an MP3 voice annunciator which produces excellent sound quality from pre-recorded MP3 files. The compact size allows panel mounting for even tight-fitting panels, with the integrated look for most any application and programming it is easily accomplished with Patlite's SD card (sold separate) and Patlite's free (downloadable) programming software. Product Information & Brochure download link: http://www.patlite.com/product/detail0000000199.html

Product Features

・Thin Design
Our thinnest to match the miniaturization of production line equipment, with a compact design having a depth of only 19.9mm. A maximum sound of 87 dB (at 1m) can be reached with such a thin shape. The volume adjustment is easily accessible from the front panel, and a low power of 3.5W (max.) takes an extra load off the power supply.
・Easy Installation
With only the need to access it from the front, the cover is easily removable for installation and volume adjustment, which can reduce labor time for maintenance, etc.
・Message Rewriting
The SD card slot, as a standard accessory, allows the rewriting of MP3 data with an SD card. In addition to message rewriting with the exclusive application software, it is possible to change MP3 data file names or rewrite it without the application software.
・Extended Playback
The newly released BSV-L model allows 520 seconds (at a standard bit rate of 64kb/s) of message playback. This added feature can be used for extended messages where details are necessary, or for cases in which a message is done in multi-languages.
- Long Play Model: Approximate Recording Time: 520 seconds (Bit rate=64k/s)
- Standard Model: Approximate Recording Time: 63 seconds (Bit rate=64k/s)

Model Specification

OPERATING VOLTAGES	- DC12/24V
MOUNTING	- Panel mount in the Upright Position
BODY COLOR	- Dark Gray - Off White - Silver
VOLUME	- Maximum 87dB at 1 meter (For Panel Mount) - Maximum 85dB at 1 meter (For Wall Mount)
SOUND STORAGE	- Long Play Model: Approximate Recording Time: 520 seconds (Bit rate=64k/s) - Standard Model: Approximate Recording Time: 63 seconds (Bit rate=64k/s)
CHANNEL SELECTION	- Bit Input: 5 (Sound Reduction Mode: 4) - Binary Input: 31 (Sound Reduction Mode: 7)
CONFORMITY STANDARDS	- CE Marking - UL - RoHS
PROTECTION RATINGS	- Panel Mount: IP54 (Upright Only) - Wall Mount: IP20
FUNCTIONS	- Normal Playback - Hold Playback - Priority Input Playback - Memory Playback
REMARKS	- PNP Transistor - NPN Transistor
OPTIONS	- Playlist Editor 2 (Free Software Version) - SDV-128P: SD Card (for mp3 file transfer and storage)* *Other SD cards not guaranteed to work

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

BKV Voice Annunciator Recordable MP3 Sound speaker

$0.00

BKV Voice Annunciator BKV

The BKV is an MP3 voice annunciator which produces excellent sound quality from pre-recorded MP3 files. The panel mounting style results in a clean, integrated look for most any application and programming it is easily accomplished with Patlite's SD card (sold separate) and Patlite's free (downloadable) programming software.

Product Information & Brochure download link: http://www.patlite.com/product/detail0000000193.html

Product Features

· Only embedded mounting style available.
· Able to produce a loud sound of up to 95 dB (at 1m) despite its compact size
· A volume control on the front panel provides an easy way to adjust the sound volume.
· The use of an SD card allows message changes without dis-mounting the device.
· Environmentally friendly since the unit complies with the EU RoHS Directives.
· Several playback modes are available for various applications.
· Includes binary input as a standard option for selecting up to 31 messages.
· Supports input selection using NPN open-collector transistor.
· The unit complies with EU Directives and includes the CE mark (BKV-31JF only)
· Two colors are available for selecting the best color match for the installation.
· Protection rating: IP54 (only the front when flush mounted)

Model Specifications

DIMENSIONS	- 120mm x 120mm x 62.8mm
OPERATING VOLTAGES	- DC12/24V - AC100V* *Special Order Item
MOUNTING	- Panel Mount - Vertical mounting angle only - Indoor: Upright, upside-down, sideways - Outdoor: Upright only
BODY COLOR	- Dark Gray - Beige
VOLUME	- Maximum 95dB at 1 meter - Adjustable volume control
SOUND STORAGE	- Approximate Recording Time: 63 seconds (Bit rate=64k/s)
CHANNEL SELECTION	- Bit Mode: Select from 1 to 5 channels available with a signal input - Binary Mode: Select from 1 to 31 channels available with a signal input
CONFORMITY STANDARDS	- CE Marking - RoHS - MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
PROTECTION RATINGS	- IP-54 (Upright Only)
FUNCTIONS	- Momentay Input: Message plays once - Sustained Input: Message repeats until input is open
REMARKS	- Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN only)
OPTIONS	- Playlist Editor Program (for mp3 file arrangement)* - SDV-128P:SDCard (for mp3 file transfer and storage)** Available from Patlite with purchase of BKV unit *Other SD cards not guaranteed to work

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

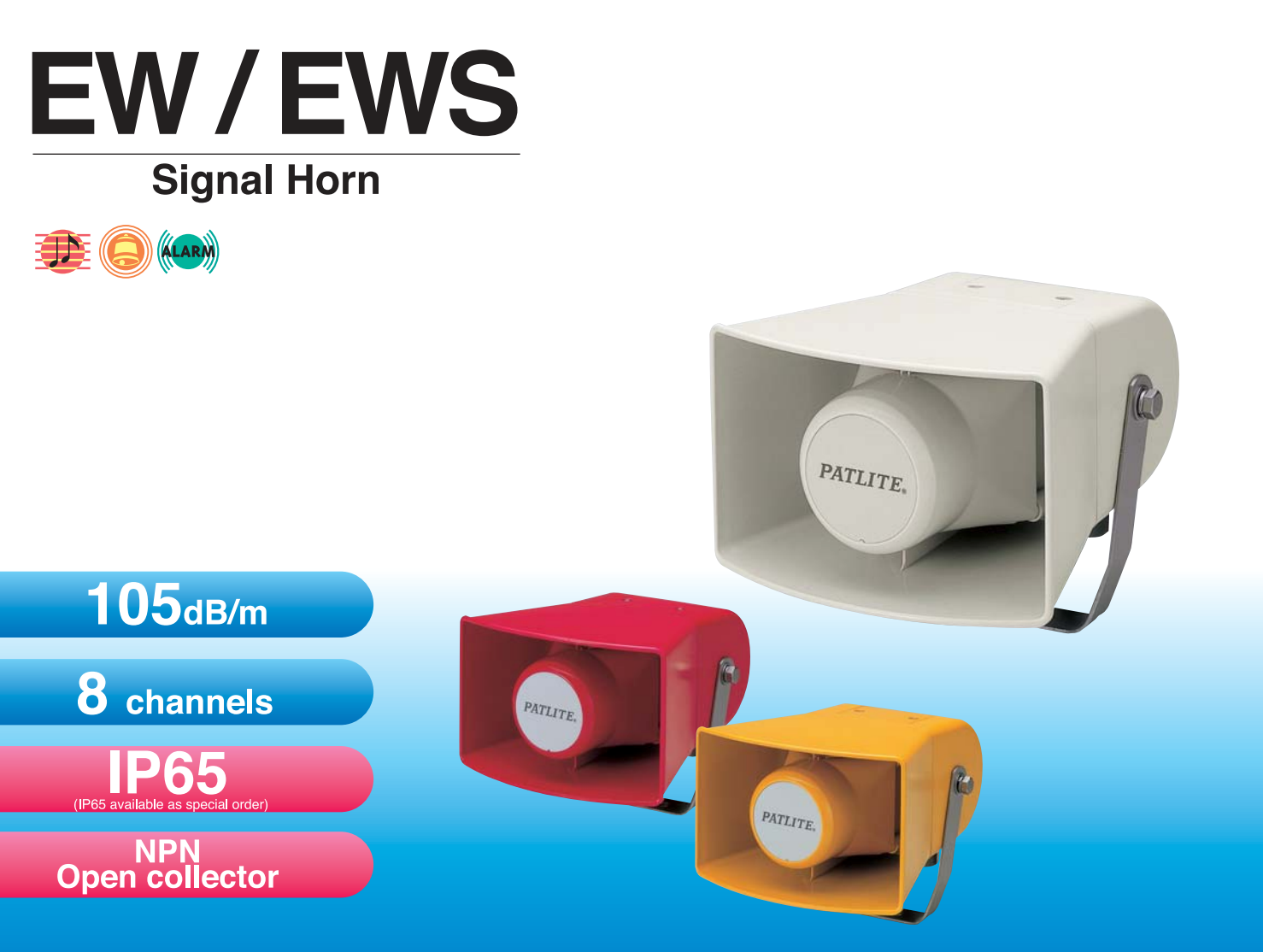

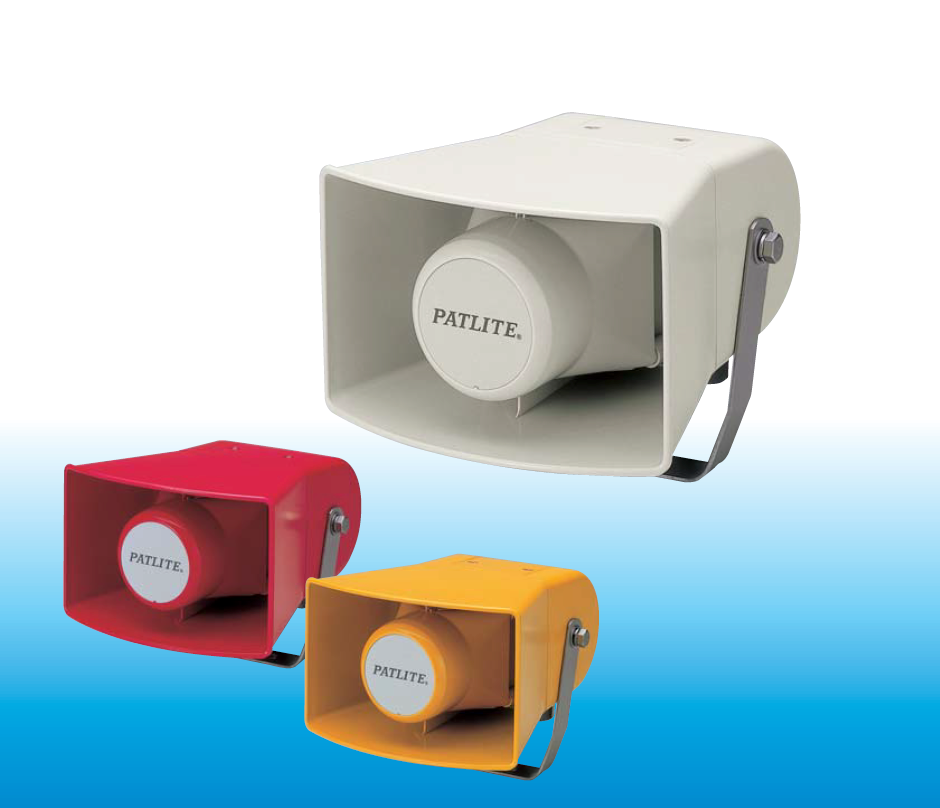

PATLITE EWS EWHS Industrial Horn Speaker Alarm Melody Warning Sounder

$325.00

EWS PATLITE EWS Industrial Horn Speaker Alarm
8 sounds, 1 Channel - Switched Internally on speaker box.

: The model EWHS contains 8 pre-recorded sounds in one unit, with only one channel for applications needing power "ON/OFF" control, etc. The EWHS has an originally designed wide horn producing a clear, high-volume sound. The DIP Switch sound selection makes the EWHS ideal for automated applications that needs only one input to separate its warning from other machines in the factory.

Product Features

· 8 sounds are pre-recorded in one unit.
· For enhanced durability and safety in the work environment.
· Built-in Alarm: Adjustable audible sound up to 105dB at 1m with volume control.
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only. (Do not install the horn facing upward).
· Easy Installation: With anti-corrosive stainless steel mounting bracket.
· NPN Compatible: 24V type only (EWH series only).
· CE Compliant: 24V AC/DC only.
· Available: PNP as special order.

Model Specifications

DIMENSIONS	- 186mm x 230mm x 122mm (not including mounting bracket)
OPERATING VOLTAGES	- 12-24V AC/DC - 100-120V AC - 200V AC
AUDIBLE STYLE	- Alarms - Chimes - Melodies
MOUNTING	- Universal mounting bracket permits easy installation in any location - Indoors: vertical(any direction) or horizontal - Outdoors: upright only with horn facing downward
BODY COLOR	- Style: Wide horn - Color: Beige, Yellow, Red
VOLUME	- Maximum 105dB at 1 meter - Adjustable volume control
CHANNEL SELECTION	- Dip switch setting selects sound to be played - sound plays when power is applied
CONFORMITY STANDARDS	- CE Marking (AC/DC12-24V only)
PROTECTION RATINGS	- IP-53
REMARKS	- Dry contact closure, such as switches or relay contacts - Open-collector transistor, NPN only, DC12-24V only

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

Patlite EWS EWS-200KA-J Horn Speaker Alarm Warning Sounder

$795.00 $375.00 Save $420.00

Industrial Grade Speaker Horn with Built-in All-in-one Alarm Tone & Pre-AMP. Single Channel 8 Tone Speaker, Designed & Engineered in JAPAN.

200-240v

12-24v, 100v options available*

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

Patlite EWS EWS-100KA-J Horn Speaker Alarm Buzzer

$799.00 $425.00 Save $374.00

Industrial Grade Speaker Horn with Built-in All-in-one Alarm Tone & Pre-AMP. Single Channel 8 Tone Speaker, Designed & Engineered in JAPAN. No1 Global Signaling Manufacturer.

90V -110V - 12-24v, 220v, 240V options available* Enquire Today.

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

TOA SC630 SC-630 30W 8ohm Horn Speaker Paging Horn PA

$150.00 $72.60 Save $77.40

High Quality SC SERIES TOA HORN SPEAKERS

285X 205MM, 113DB Public Address Paging Speaker Horn

Designed and Engineered in JAPAN.

TOA's SC series paging horn speakers are a compact aluminium reflex horn speaker designed for general applications.

The SC series benefits from the flexibility of highor low impedance connections and is available in 10W, 15W,and 30W models.

TOA's SC Series Paging Horn Speakers are designed for both indoor and outdoor applications. The lineup includes six models rated at 10W (SC-610 and SC-610M), 15W (SC-615 and SC-615M) and 30W (SC-630 and SC-630M). The "M"- type models are designed for use in high-impedance (70V/100V lines) systems and standard models for low impedance (8Ω) systems. This wide product lineup permits selection of the ideal speaker for most applications.
SC Series speakers feature newly developed diaphragms employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. High speaker efficiency has also been realized by minimizing the gap produced when the diaphragm bobbin is installed in the magnetic circuitry slit. The aluminum foil bobbin also features excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.
All speakers feature TOA's unique oval shape, which enhances excellent speech clarity.
The mounting brackets and all external hardware (screws, bolts) are made of stainless steel. The horn itself is treated with 50-micron thick powder paint coating, which is about three times thicker than that of the conventional horns.All of these factors combine to ensure the speaker's excellent weatherproofing and corrosion resistance. In addition, the external horn flare is made of aluminum which is more shockresistant than resin. High-impedance models are equipped with an input impedance selector switch (4 steps for 100V line, and 5 steps for 70V line) which facilitates impedance settings without requiring disassembly. The switch is also equipped with an OFF position to prevent speaker damage resulting from incorrect impedance settings.

FEATURES:

Both high-impedance (70V/100V lines) models and low impedance (8Ω) models available.
Three power ratings: 10W, 15W and 30W.
Stainless steel brackets and hardware (screws, bolts), and powder-coated horn ensure superb weatherproofing and corrosion-resistance.
Shock-resistant aluminum oval horn.
Panel-mounted input impedance selector on high impedance models facilitates input impedance matching.
Unobtrusive off-white color (corresponding to RAL 9010) helps speakers blend in with surroundings.
Compliance with IP65.

SPECIFICATIONS:

	SC-610	SC-610M
Rated Input	10 W (Mobile Mount use: 5W)	10 W
Line Voltage	N/A	100 V line or 70 V line
Rated Impedance	8 Ω	100V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W), 70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sound Pressure Level	110 dB (1 W, 1 m at 500 to 2,500 Hz peaklevel)
Frequency Response	315 – 12,500 Hz
Sensitivity when used as Microphone (0 dB = 1 mW/10 dynes/cm2)	-24 dB at 1 kHz
IP Code	IP 65
Polarity	Hot: Black, Com: White
Operating Temperature	-20°C to +55°C (must be free from dew condensation)
Finish	Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, Screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
Dimensions	172 (W) x 161 (H) x 188 (D) mm
Weight	1 kg	1.2 kg
Option	Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)

	SC-615	SC-615M
Rated Input	15 W (Mobile Mount use: 10W)	15 W
Line Voltage	N/A	100 V line or 70 V line
Rated Impedance	8 Ω	100V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sound Pressure Level	112 dB (1 W, 1 m at 500 to 2,500 Hz peaklevel)
Frequency Response	280 – 12,500 Hz
Sensitivity when used as Microphone (0 dB = 1 mW/10 dynes/cm2)	-22 dB at 1 kHz
IP Code	IP 65
Polarity	Hot: Black, Com: White
Operating Temperature	-20°C to +55°C (must be free from dew condensation)
Finish	Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, Screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
Dimensions	222 (W) x 179 (H) x 234 (D) mm
Weight	1.1 kg	1.3 kg
Option	Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)

	SC-630	SC-630M
Rated Input	30 W (Mobile Mount use: 15W	30 W
Line Voltage	N/A	100 V line or 70 V line
Rated Impedance	8 Ω	100V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
Sound Pressure Level	113 dB (1 W, 1 m at 500 to 2,500 Hz peaklevel)
Frequency Response	250 – 10,000 Hz
Sensitivity when used as Microphone (0 dB = 1 mW/10 dynes/cm2)	-20 dB at 1 kHz
IP Code	IP 65
Polarity	Hot: Black, Com: White
Operating Temperature	-20°C to +55°C (must be free from dew condensation)
Finish	Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, Screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
Dimensions	285 (W) x 227 (H) x 277 (D) mm
Weight	1.7 kg	2 kg
Option	Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

PATLITE EB-24LQ Compact Electronic Sounder Horn Speaker

$195.00

8 Sound Channels, 90db Sound Output Volume, adjustable volume

Sound Type: Melody + Alarm Tone Variant x 8

Dimension: (WxHxD) 133mm x 133mm x 75mm

AC/DC 24v (20~26v)

External Contact (mA): 5+

Switch (8P 1Bit)

Manufactured by PATLITE Corporation

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

PATLITE EB-100KA Compact Electronic Sounder Horn Speaker

$195.00

8 Sound Channels, 90db Sound Output Volume, adjustable volume

Sound Type: Alarm Tone Variant x 8

Dimension: (WxHxD) 133mm x 133mm x 75mm

AC/DC 100v (90~110v)

External Contact (mA): 5+

Switch (8P 1Bit)

Manufactured by PATLITE Corporation

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

PATLITE EB-24LS Compact Electronic Sounder Horn Speaker

$195.00

8 Sound Channels, 90db Sound Output Volume, adjustable volume

Dimension: (WxHxD) 133mm x 133mm x 75mm

AC/DC 24v (20~26v)

External Contact (mA): 5+

Switch (8P 1Bit)

Manufactured by PATLITE Corporation

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

PATLITE SIGNALFX NHL-3FV1N Network Monitor Signal Tower with MP3 Custom Message & LED Light Status Indication

$2,999.00 $1,250.00 Save $1,749.00

PATLITE Signalfx IPS NHL-NHL-3FB1 NHL-FV1 network security monitoring software led signal tower light Oracle Trend Micro Fujitsu Fortinet Palo Alto

NHL-3FV1N Network Monitoring Signal Tower with Custom MP3 Messages, Melody, Alarm Tones.
Network monitoring signal tower with MP3 Voice alerts, LAN connectivity, and input/outputs and line out for additional network functions.

PING Monitoring & Quick Notification
Monitor & be notified of any NODE irregularities instantly by LED Warning Light and custom MP3 Voice messages. Actively Monitors system, software, device status and abnormalities.

SNMP TRAP Monitoring SNMPv1 SNMPv2c
Receive SNMP TRAP, quickly alerting the administrator or support with Clearly visibility LED Modular lights and Custom Sound. Catch notificaitons even when away from your screen.

APPLICATION Monitoring
Monitor Application status and be notified on any process or intrusion by creating custom commands to trigger the tower light.

SOCKET Communication
PHN PNS Command Compatibility

RSH
Trigger using RSH from Network Monitoring Software, IPS, other devices. Assign trigger to particular sounds, custom messages or LED colour module.

SLMP Seamless Message Protocal / MC Protocol Compatibility
Easy Connection to CC-Link IE Field Network systems in Industrial & IoT Automation applications

PNS Manager
Central Management Software for multiple tower lights on the same network.

EMAIL Notification System Built-in for Remote monitoring SNMP v2c
Auomatically forward logs and event information to upto 8 email address for remote monitoring of systems, software, hardware.

Model Specifications

DIMENSIONS	- Tower diameter: 60mm - Overall dimensions: 113mm x 154mm x 350mm
OPERATING VOLTAGES	- 24V DC
PROTOCOLS	- Physical Layer: 10 BASE-T/100 BASE-TX - Data Link Layer: CSMA/CD - Network Layer: IP/ICMP/B6 - Transport Layer: TCP/UDP - Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP
FUNCTIONS	- Ping Device monitor - Digital Input and Output - RSH command - SNMP v1・v2C - Application monitor - SOCKET - E-mail Transmission - Line Out - Easy Access Volume Control - Preset Sound: Buzzer; 4 Selections Chime; 3 Selections Message; 3 Selections
BODY STYLE	Interface converter: - Low profile steel casing - Bumper pads installed to protect surface finish Tower: - Pre-assembled, mounted to converter base - LED modules are interchangeable
BODY COLOR	- Interface Converter Base: Off-white - Tower: Beige
STACKABLE TIERS	- 3 tiers only
MODULE COLORS	- LED source Color: Red/Amber/Green (only) - Lens Color: clear Lens
AUDIBLE STYLE	- Audio File Formal: MPEG1-Audio Layer Ⅲ (MP3) Sampling Frequency 44.1kHz - Bite Rate: 32kbit/s, 64kbit/s (Standard Rate), 128kbit/s Constant Bit Rate (CBR) Only - Number of Playback Messages: USB Memory Transfer Package: 30 kinds Web Setup Tool Registrations: 30 kinds Preset Registrations: 10 kinds
CONFORMITY STANDARDS	- CE Marking - UL 1638, CAN/ULC-S526 - RoHS (EN50581) - FCC Part 15 Subpart B Class A - EMC Directive (EN 55032 (Class A), EN 55024)
PROTECTION RATINGS	- IP20 (IEC 60529)

Accessories

NH-WST2
Wall-mount Bracket

ADP-001
AC Adaptor

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

PATLITE SignalFx NHL-3FV1 Australia New Zealand Singapore Nework Monitoring LED Signal Tower Facial Recognition Asset management Software NEC Fujitsu Cisco Palo Alto Fortinet Trend Micro Symantec HP SNMP PHN PHS CC-Link Fieldbus modbus ethernet etherCAT NHL

PES LED Beacon Steady Static Flashing Warning Indicating Lights I PATLITE SIGNALFX Wholesale Direct I Australia NZ

$275.00 $135.00 Save $140.00

PES-A 82MM HIGH GRADE STATIC AND FLASHING LED BEACON

STEADY STATIC CONTINUOUS OR FLASHING LED WARNING LIGHT BEACON: The dome shape of the PES-A provides increased visibility from the top and sides, while the LEDs provide years of maintenance-free operation with three different flash rates to choose from.

Product Features

· Newly Developed Triple-reflection System: For enhanced visibility and low power consumption.
· Flashing Cycles: 3 patterns —60/120/180 fpm, selectable by a switch.
· Maintenance-free: LED’s power consumption is approx. half of incandescent bulb type (100V/200V AC).
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only.
· Dome: Superior weather resistant and light translucent acrylic resin.
· IP55 (with optional rubber gasket SZ-210, IP23 without SZ-210).
· CE Compliance: 24V AC/DC type ONLY.
· Available Colors: Red, Amber, Green, Blue

Model Specifications

SIZE	- 82mm diameter
OPERATING VOLTAGES	- 24V DC - 100V AC - 120V AC - 200V AC - 230V AC
FUNCTIONS	- Continuous - Flashing - Three selectable flash rates
MOUNTING	- Direct mount - Indoor only (upright, upside down, horizontal)
BODY STYLE	- Round Base - Round Top, colored Dome - pre-assembled for LED Color specified, pre-wired - Optional SZ-210 gasket to increase the IP Rating
BODY COLOR	- Body: Beige
LIGHT SOURCE	- Light source: LED - LED Colors: Red / Amber / Green / Blue - Dome Colors: Corresponding to LED Color
GLOBE MATERIAL	- Acrylic Resin
CONFORMITY STANDARDS	- CE - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS
PROTECTION RATINGS	- without SZ-210 gasket: IP-23 - with SZ-210 gasket: IP-54
OPTIONS	- SZ-210

Accessories

SZ-007
Wall Mount Bracket

SZ-210
Rubber Gasket

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

PATLITE PEW LED Beacon Light Built-in Sounder Static Flashing

$350.00 $235.00 Save $115.00


Industrial Grade PEW-A 82mm diam. LED Indicating light Built-in Sounder. Adjustable Volume Adjustable Flash rate + light STEADY ON feature.: The dome shape of the PEW provides increased visibility from the top and sides, while the LEDs provide years of maintenance-free operation with three different flash rates to choose from. The unit offers an optional alarm function.

Product Features

· Newly Developed Triple-reflection System: For enhanced visibility and low power consumption.
· Flashing Cycles: 3 patterns —60/120/180 fpm, selectable by a switch.
· PEW-B type: Built-in audible alarm with adjustable volume up to 85dB at 1m.
· Maintenance-free: LED’s power consumption is approx. half of incandescent bulb type (100V/200V AC).
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only.
· Dome: Superior weather resistant and light translucent acrylic resin.
· PEW: IP54 (IP23 : Using the side wire exit); PES: IP55 (with optional rubber gasket SZ-210, IP23 without SZ-210).
· CE Compliance: 24V AC/DC type ONLY.
· Available Colors: Red, Amber, Green, Blue

Model Specifications

SIZE	- 82mm diameter
OPERATING VOLTAGES	- 24V DC - 100V AC - 120V AC - 200V AC - 230V AC
FUNCTIONS	- Continuous - Flashing - Three selectable flash rates
MOUNTING	- Direct mount - Indoor only (upright, upside down, horizontal)
BODY STYLE	- Round Base - Round Top, colored Dome - pre-assembled for LED Color specified, pre-wired
BODY COLOR	- Body: Beige
LIGHT SOURCE	- Light source: LED - LED Colors: Red / Amber / Green / Blue - Dome Colors: Corresponding to LED Color
GLOBE MATERIAL	- Acrylic Resin
CONFORMITY STANDARDS	- CE - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS
PROTECTION RATINGS	- IP-54 (Upright Only)

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

Patlite SignalFx EHS-EX Explosion Proof Hazardous Area Horn Speaker MP3 Melody Alarm

$3,500.00 $1,750.00 Save $1,750.00

ehs-ex-explosion-proof-hazardous-area

EHS-EX

Explosion-safe Melody/Alarm HornPatlite’s new Melody/Alarm Horn now features Explosion-safe conformity for Zone 2 and Zone 22, with the same features for Industrial applications with its unbelievably compact design and a sound output of 110dB (at 1m)!
New mode selection features, including a sound synthesizer mode to be heard easier in Factory and Public Address applications. Endures vibration resistance up to 4.5G’s.

Product Features

- Explosion-Safe for gas and dust, Suitable for Zone 2 and Zone 22.
- A 30% decrease in size in comparison to our current model (EWH) for a more compact design.
- Stronger vibration resitant characteristics to withstand up to 4.5G force.
- EHS-EX comes with 32 preloaded melody and alarm sounds with adjustable volume up to 110dB (@ 1m).
- Now offers a selection between Cable connection or Terminal connection.
- 4 playback modes in combination with commands available to be setup for the right application.
Playback Modes: Normal Playback; Input Priority Playback; Hold Playback; Memory Playback
Command Modes: Sound Reduction; Factory; Public Address; Bit/Binary; Forced Playback; Group Selection
Terminal Assignment Modes: Playback; STOP; CLEAR; Sound Reduction
- Can be used with either PNP or NPN transistor driven inputs.
- It complies with Europe's environment-friendly RoHS Directive.
- Protection Rating of IP65.
- Listed by Underwriters Laboratories Inc. (EHV-M1 Only)
- Ideal for plant-wide notification, public address and process control.
- CE Compliance in accordance to ATEX.
- CE, RoHS Compliant (EHS-M1 and EHV-M1 Only).
- UL464, CSA-C22.2 NO.205-M1983, FCC Part 15 Subpart B Class 4.

Model Specifications

OPERATING VOLTAGES	- DC 12 - 24V
AUDIBLE STYLE	- 32 Sounds
MOUNTING	- Bracket Mount Included
BODY COLOR	- Off-white
SOUND STORAGE	- up to 110dB at 1m
CHANNEL SELECTION	- A total of 32 sounds stored (See Specifications for list) - 4 Playback modes available to match the environment
SOUND CHART	- Bit Mode: Select from 8 channels available with a signal input - Binary Mode: Select from 32 channels available with a signal input
CONFORMITY STANDARDS	- Directive 94/9/EC (ATEX) - CE Ex Group II Category 3GD, Ex nA IIC T4 Gc, Ex tc IIIC T85oC Dc IP65 - UL464 - CSA-C22.2 No. 205-M1983 - FCC Part 15 Subpart B Class 4 - CE (EHS-M1 Only) - RoHS Compliant
PROTECTION RATINGS	- IP65
REMARKS	- Sound Reduction - 32 pre-loaded sounds - Terminal or Cable connection option - NPN or PNP Input compatability - MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
FUNCTIONS	- Vibration Resistance of 4.5G

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

LHE-302AFB Mullti Colour Indication LED Tower Light Buzzer Flashing

$695.00 $395.00 Save $300.00

LHE-AFB LED Tower Light Satus Indication System with Built-in LED Lights, 2 Tone Buzzer, Volume Control, Flashing. 3 LED Module Version with Optional Red, Amber, Green, Blue, Clear Colours. AC/DC 24v Type.

70mmWith a protection rating of IP 54 (IP65 for no alarm version), the LHE Signal Tower design can adapt to wet environments.

Model Specifications

DIMENSIONS	- 70mm diameter
OPERATING VOLTAGES	- 24V AC/DC - 100V AC - 200V AC
FUNCTIONS	- Continuous Only - Continuous, Flashing, Alarms
BODY STYLE	- Up to 5 modules can be stacked
BODY COLOR	- Red - Amber - Green - Blue - Clear
AUDIBLE STYLE	- Selectable two-tone alarm, 90dB (at 1m)
CONFORMITY STANDARDS	- CE Marking - UL (Special Order )
PROTECTION RATINGS	- IP65

Accessories

SZ-007
Wall Mount Bracket

SZ-017
Wall Mount Bracket

SZ-018
Wall Mount Bracket

SZ-020
Wall Mount Bracket

SZ-50L
Pre-assembled Mounting Pole

SZ-50T
Pre-assembled Mounting Pole

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

Patlite LHE-402AFB Mullti Colour Indication LED Tower Light Buzzer Flashing

$695.00 $395.00 Save $300.00

LHE-AFB LED Tower Light Satus Indication System with Built-in LED Lights, 2 Tone Buzzer, Volume Control, Flashing. 4 LED Module Version with Optional Red, Amber, Green, Blue, Clear Colours. AC/DC 24v Type.

70mmWith a protection rating of IP 54 (IP65 for no alarm version), the LHE Signal Tower design can adapt to wet environments.

Model Specifications

DIMENSIONS	- 70mm diameter
OPERATING VOLTAGES	- 24V AC/DC - 100V AC - 200V AC
FUNCTIONS	- Continuous Only - Continuous, Flashing, Alarms
BODY STYLE	- Up to 5 modules can be stacked
BODY COLOR	- Red - Amber - Green - Blue - Clear
AUDIBLE STYLE	- Selectable two-tone alarm, 90dB (at 1m)
CONFORMITY STANDARDS	- CE Marking - UL (Special Order )
PROTECTION RATINGS	- IP65

Accessories

SZ-007
Wall Mount Bracket

SZ-017
Wall Mount Bracket

SZ-018
Wall Mount Bracket

SZ-020
Wall Mount Bracket

SZ-50L
Pre-assembled Mounting Pole

SZ-50T
Pre-assembled Mounting Pole

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

PATLITE LHE-502AFB Mullti Colour Indication LED Tower Light Buzzer Flashing

$695.00 $495.00 Save $200.00

LHE-AFB LED Tower Light Satus Indication System with Built-in LED Lights, 2 Tone Buzzer, Volume Control, Flashing. 5 LED Module Version with ALL of Red, Amber, Green, Blue, Clear Colours. AC/DC 24v Type.

70mmWith a protection rating of IP 54 (IP65 for no alarm version), the LHE Signal Tower design can adapt to wet environments.

Model Specifications

DIMENSIONS	- 70mm diameter
OPERATING VOLTAGES	- 24V AC/DC - 100V AC - 200V AC
FUNCTIONS	- Continuous Only - Continuous, Flashing, Alarms
BODY STYLE	- Up to 5 modules can be stacked
BODY COLOR	- Red - Amber - Green - Blue - Clear
AUDIBLE STYLE	- Selectable two-tone alarm, 90dB (at 1m)
CONFORMITY STANDARDS	- CE Marking - UL (Special Order )
PROTECTION RATINGS	- IP65

Accessories

SZ-007
Wall Mount Bracket

SZ-017
Wall Mount Bracket

SZ-018
Wall Mount Bracket

SZ-020
Wall Mount Bracket

SZ-50L
Pre-assembled Mounting Pole

SZ-50T
Pre-assembled Mounting Pole

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

Patlite LME-202FB-RY LME-202AFB-RY Tower Light Red, Yellow 24v

$450.00 $225.00 Save $225.00

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

LR4 LED SIGNAL TOWER LIGHT MULTI COLOUR MACHINE INDICATING 3YR LED WARRANTY

$799.00 $155.00 Save $644.00

LR4 LED SIGNAL TOWER LIGHT I PATLITE MULTI COLOUR MACHINE INDICATING WITH OPTIONAL BUILT-IN ALARM, STEADY, FLASHING FEATURES

LR4 Series

40mm LED Signal Tower LightsNext generation signal tower series featuring ultra-bright LEDs, a modular design, and a wide-selection of options to take on the most challenging applications.

Product Features

Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
Available in DC24V and AC100-240V (Off-white only).
Available in Off-white and Silver bodies.

Available with Clear lens (special order).

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

Patlite LR6-302WCBW-RYG M12 Quick Connector Built-in NPT Bracket

$895.00 $350.00 Save $545.00

Product Features

8-pin M12 Connector
Direct mount through 30mm mounting hole or pole mount with ½” NPT pipe
Rated voltage: DC24V
Off-white body

patlite lr6 lr6-wc wc m12 connection connector quick connect cable pls australia led signal tower light iio-link iolink smart factory industry 4.0 iot iiot nz anz new zealand machine warning safety indication light

Model Specifications

DIMENSIONS	- 60mm diameter
RATED VOLTAGE	- 24V DC
BODY COLOR	- Off-white
MODULE COLORS	- Red - Amber - Green
CONFORMITY STANDARDS	- CE - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS - FCC - KC
PROTECTION RATING	- IP65(IEC 60529) / NEMA TYPE 4X,13
SIZE	1

Accessories

Patlite SignalFx Product Sales & Support

Australia, New Zealand, Pacific Region Contact Information

Phone. 03 9001 2000 +61 3 9001 2000

Email. info@patled.com.au sales@signalfx.com.au

Address1. 200 Queen St. Melbourne VIC 3000 AUSTRALIA

Address 2. Waterman Group Complex / Corporate Meeting Facility 44 Lakeview Drive , Scorsby, VIC

Address 3. South Melbourne Business Center.

(BY APPOINTMENT ONLY)

Sales, wholesale, distributor, OEM, project support for ANZ region please contact 03 9001 2000. For other regions please contact your regional rep.

For all Quote requests include

1. Your Company and contact Details

2. Application Detail / QTY required / Frequency of Requirement

AFTER HOURS (SMS) AUSTRALIA Ph. 0411277998 +61411277998 for a faster response time.

We can attend to URGENT delivery requests to meet WORK SAFE Regulations, and or after hours requests with an additional charge.

We thank you for visiting our website and looking forward to talking with you!

Physical
Case/Package	Module
Color	Green , Red , Yellow
Lens Color	Green , Red , Orange
Technical
Current Rating	26.6 mA
Max Operating Temperature	55 °C
Min Operating Temperature	-10 °C
Operating Supply Voltage	24 V
Power Rating	3.3 W
Dimensions
Height	188 mm
Length	188 mm
Compliance
IP Rating	IP65
REACH SVHC	Unknown
RoHS	Compliant

Business Info

Contact us

Business Info

Contact us

Voice Annunciator BSV

Product Features

Model Specification

BKV Voice Annunciator BKV

Product Features

Model Specifications

Product Features

Model Specifications

High Quality SC SERIES TOA HORN SPEAKERS

285X 205MM, 113DB Public Address Paging Speaker Horn

FEATURES:

SPECIFICATIONS:

Model Specifications

Accessories

STEADY STATIC CONTINUOUS OR FLASHING LED WARNING LIGHT BEACON

Product Features

Model Specifications

Accessories

Industrial Grade PEW-A 82mm diam. LED Indicating light Built-in Sounder. Adjustable Volume Adjustable Flash rate + light STEADY ON feature.

Product Features

Model Specifications

Product Features

Model Specifications

LHE-AFB LED Tower Light Satus Indication System with Built-in LED Lights, 2 Tone Buzzer, Volume Control, Flashing. 3 LED Module Version with Optional Red, Amber, Green, Blue, Clear Colours. AC/DC 24v Type.

70mmWith a protection rating of IP 54 (IP65 for no alarm version), the LHE Signal Tower design can adapt to wet environments.

Model Specifications

Accessories

LHE-AFB LED Tower Light Satus Indication System with Built-in LED Lights, 2 Tone Buzzer, Volume Control, Flashing. 4 LED Module Version with Optional Red, Amber, Green, Blue, Clear Colours. AC/DC 24v Type.

70mmWith a protection rating of IP 54 (IP65 for no alarm version), the LHE Signal Tower design can adapt to wet environments.

Model Specifications

Accessories

LHE-AFB LED Tower Light Satus Indication System with Built-in LED Lights, 2 Tone Buzzer, Volume Control, Flashing. 5 LED Module Version with ALL of Red, Amber, Green, Blue, Clear Colours. AC/DC 24v Type.

70mmWith a protection rating of IP 54 (IP65 for no alarm version), the LHE Signal Tower design can adapt to wet environments.

Model Specifications

Accessories

Technical Specifications

Product Features

Product Features

Model Specifications

Accessories
