Description

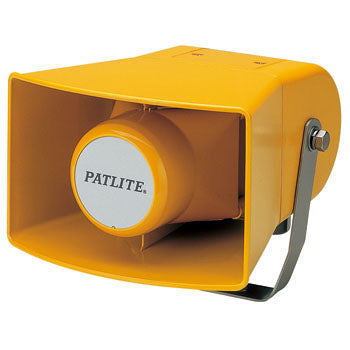

- EWS PATLITE EWS Industrial Horn Speaker Alarm
- 8 sounds, 1 Channel - Switched Internally on speaker box.
- The model EWHS contains 8 pre-recorded sounds in one unit, with only one channel for applications needing power "ON/OFF" control, etc. The EWHS has an originally designed wide horn producing a clear, high-volume sound. The DIP Switch sound selection makes the EWHS ideal for automated applications that needs only one input to separate its warning from other machines in the factory.
Product Features
· 8 sounds are pre-recorded in one unit.
· For enhanced durability and safety in the work environment.
· Built-in Alarm: Adjustable audible sound up to 105dB at 1m with volume control.
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only. (Do not install the horn facing upward).
· Easy Installation: With anti-corrosive stainless steel mounting bracket.
· NPN Compatible: 24V type only (EWH series only).
· CE Compliant: 24V AC/DC only.
· Available: PNP as special order.
Model Specifications

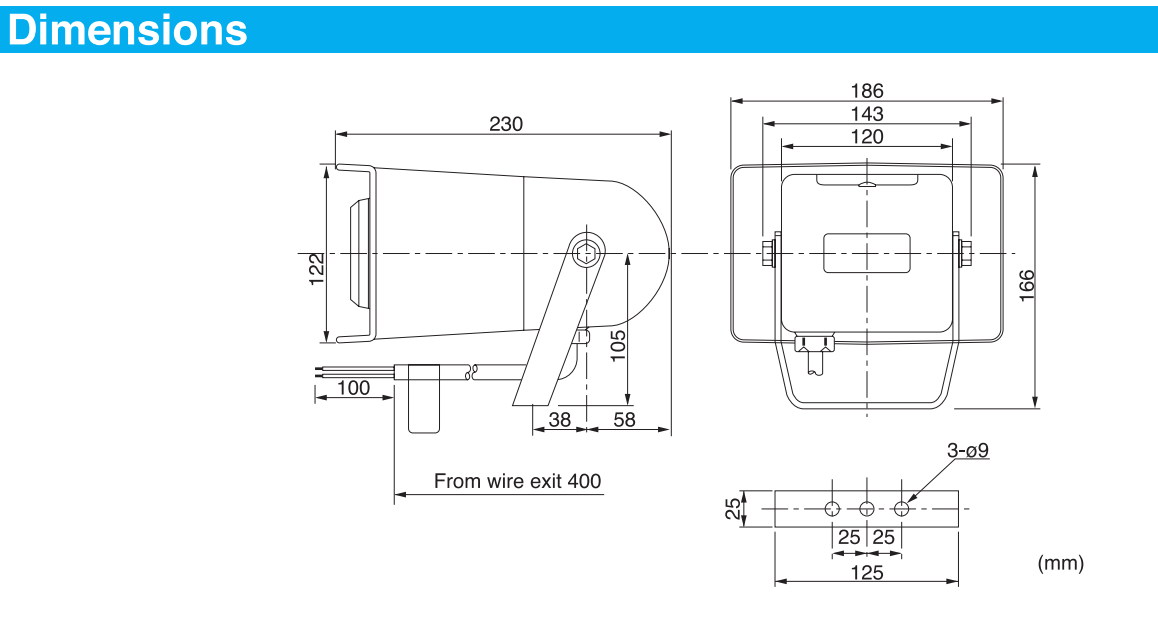

| DIMENSIONS | - 186mm x 230mm x 122mm (not including mounting bracket) |
|---|---|
| OPERATING VOLTAGES | - 12-24V AC/DC - 100-120V AC - 200V AC |
| AUDIBLE STYLE | - Alarms - Chimes - Melodies |
| MOUNTING | - Universal mounting bracket permits easy installation in any location - Indoors: vertical(any direction) or horizontal - Outdoors: upright only with horn facing downward |
| BODY COLOR | - Style: Wide horn - Color: Beige, Yellow, Red |
| VOLUME | - Maximum 105dB at 1 meter - Adjustable volume control |

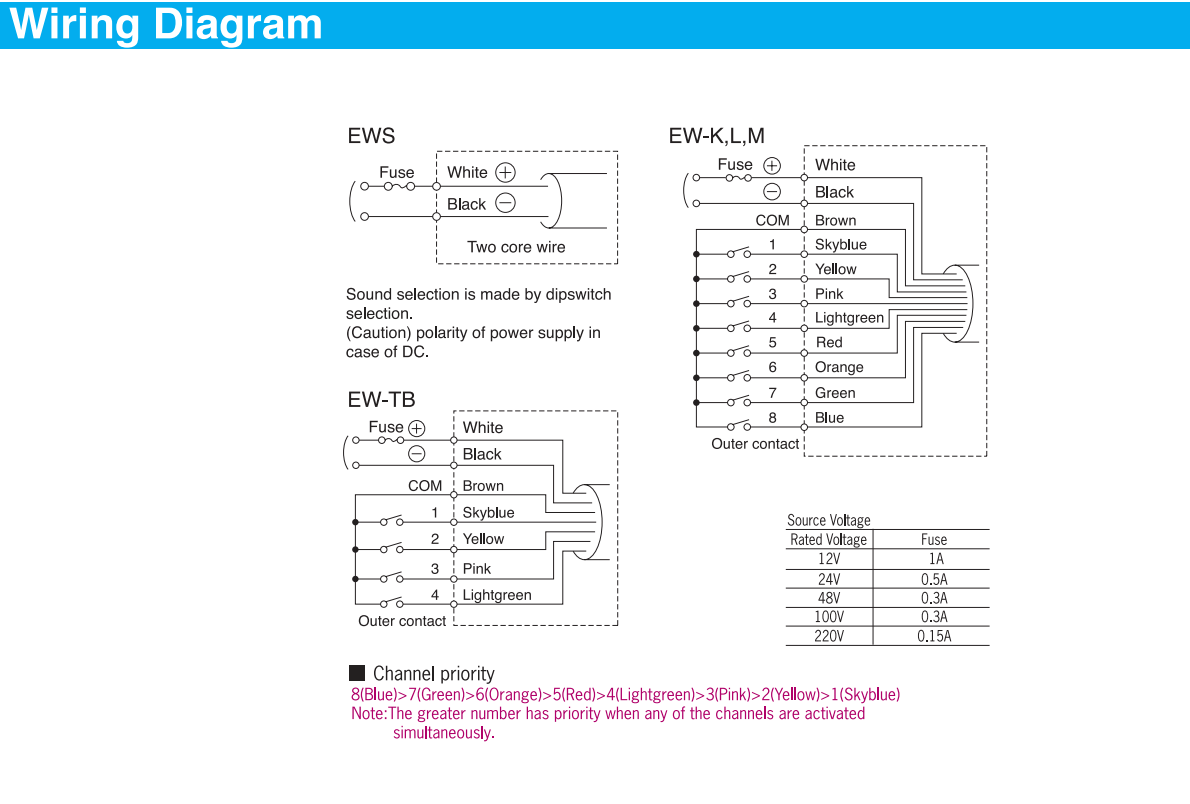

| CHANNEL SELECTION | - Dip switch setting selects sound to be played - sound plays when power is applied |
| CONFORMITY STANDARDS | - CE Marking (AC/DC12-24V only) |
| PROTECTION RATINGS | - IP-53 |
| REMARKS | - Dry contact closure, such as switches or relay contacts - Open-collector transistor, NPN only, DC12-24V only |
