Description

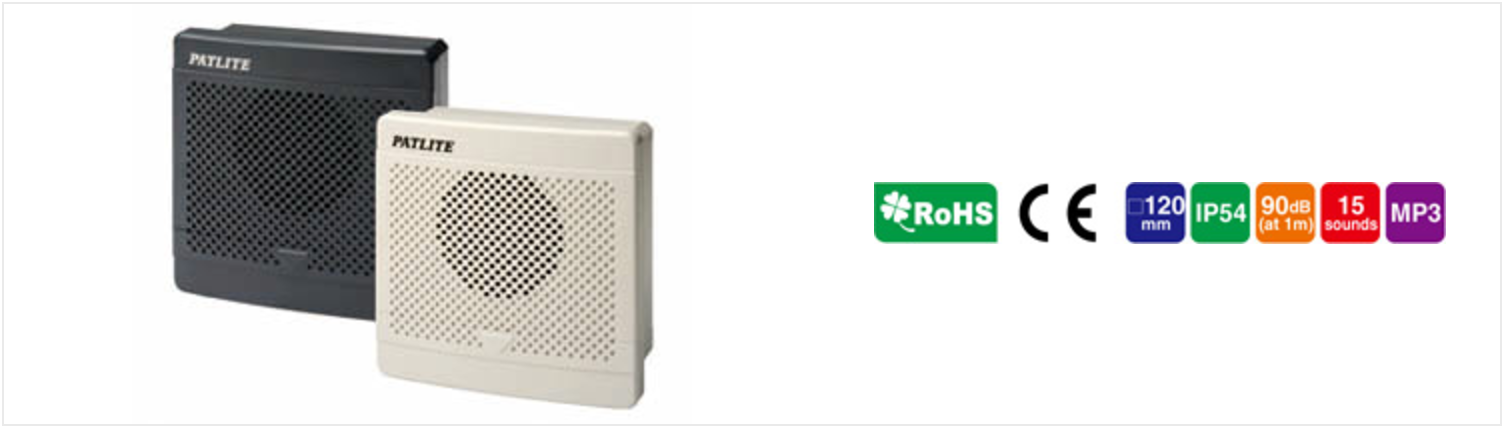

BKV Voice Annunciator BKV
- The BKV is an MP3 voice annunciator which produces excellent sound quality from pre-recorded MP3 files. The panel mounting style results in a clean, integrated look for most any application and programming it is easily accomplished with Patlite's SD card (sold separate) and Patlite's free (downloadable) programming software.
- Product Information & Brochure download link: http://www.patlite.com/product/detail0000000193.html
Product Features
· Only embedded mounting style available.
· Able to produce a loud sound of up to 95 dB (at 1m) despite its compact size
· A volume control on the front panel provides an easy way to adjust the sound volume.
· The use of an SD card allows message changes without dis-mounting the device.
· Environmentally friendly since the unit complies with the EU RoHS Directives.
· Several playback modes are available for various applications.
· Includes binary input as a standard option for selecting up to 31 messages.
· Supports input selection using NPN open-collector transistor.
· The unit complies with EU Directives and includes the CE mark (BKV-31JF only)
· Two colors are available for selecting the best color match for the installation.
· Protection rating: IP54 (only the front when flush mounted)
Model Specifications
| DIMENSIONS | - 120mm x 120mm x 62.8mm |
|---|---|
| OPERATING VOLTAGES | - DC12/24V - AC100V* *Special Order Item |
| MOUNTING | - Panel Mount - Vertical mounting angle only - Indoor: Upright, upside-down, sideways - Outdoor: Upright only |
| BODY COLOR | - Dark Gray - Beige |
| VOLUME | - Maximum 95dB at 1 meter - Adjustable volume control |
| SOUND STORAGE | - Approximate Recording Time: 63 seconds (Bit rate=64k/s) |
| CHANNEL SELECTION | - Bit Mode: Select from 1 to 5 channels available with a signal input - Binary Mode: Select from 1 to 31 channels available with a signal input |
| CONFORMITY STANDARDS | - CE Marking - RoHS - MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing |
| PROTECTION RATINGS | - IP-54 (Upright Only) |
| FUNCTIONS | - Momentay Input: Message plays once - Sustained Input: Message repeats until input is open |
| REMARKS | - Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN only) |
| OPTIONS | - Playlist Editor Program (for mp3 file arrangement)* - SDV-128P:SDCard (for mp3 file transfer and storage)** *Available from Patlite with purchase of BKV unit **Other SD cards not guaranteed to work |
