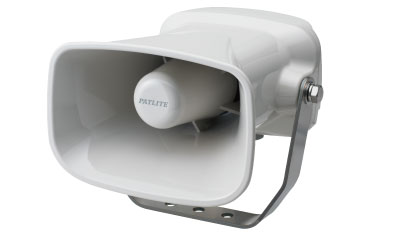

PATLITE EHV IP65 SPEAKER HORN CUSTOM AUDIO PLAY BACK SYSTEM LARGE HORN SPEAKER EHS EWH EWHS
Roll over image to zoom in Click on image to zoom
PATLITE EHV IP65 SPEAKER HORN CUSTOM AUDIO PLAY BACK SYSTEM LARGE HORN SPEAKER EHS EWH EWHS

PATLITE EHV IP65 SPEAKER HORN CUSTOM AUDIO PLAY BACK SYSTEM LARGE HORN SPEAKER EHS EWH EWHS

Save $680.00
PATLITE & SIGNALFX
Voltage: DC 12 - 24v
Price:
$820.00 AUD $1,500.00 AUD

Description

MP3 Voice Announcer
EHV MP3 Custom Programmable Voice and Audio playback speaker with built-in amp.  Simply apply power to play back your own custom audio, sound or music.

Patlite’s new custom audio programmable MP3 Player speaker horn with built-in pre amp for Industrial applications.
Highest quality, compact design with a loud sound output of 110dB at 1m.

New mode selection features, including a sound synthesizer mode to be heard easier in Factory and Public Address applications. Endures vibration resistance up to 4.5G.
Suitable industrial, mining, manufacturing, machine applications.  With high vibration resistant construction this speaker is also suitable for Forklifts and AGV.

Available in both low DC 12 / 24v, 48v and AV 220, 240v options.

MP3 Voice Annunciator Horn
EHV



The EHV MP3 Voice Annunciator Horn delivers an industry-leading sound output of 110 dB at 1 m, making it ideal for noisy industrial settings. Users can select between two sound profiles—Signal Mode for high-impact alerts or Information Mode for softer messaging. Designed with high vibration resistance, it features three volume levels, terminal block and cable types, and four playback modes for versatile applications. The M1 version supports both NPN and PNP transistor outputs, and an SD card allows easy message and melody updates (up to 220 seconds).



  • I/O Control
  • MP3 Annunciator
  • Tones
  • Melody
  • Voice
  • 110dB
  • Indoor
  • Outdoor
  • IP65

    • Product Features

    • 30% More Compact compared to the previous EWH model, allowing for space-efficient installation.
    • Enhanced Vibration Resistance rated up to 4.5G.
    • Delivers sound output up to 110 dB at a distance of 1 meter, despite its reduced size.
    • Supports both Cable Connection and Terminal Block Connection options.
    • Equipped with 4 Playback Modes, selectable via input signal configuration:
    • Compatible with both PNP and NPN transistor-driven inputs.
    • RoHS compliant in accordance with European environmental directives.
    • IP65-rated enclosure for dust and water protection (refer to manual for application details).
    • Messages are stored and managed via SD card, allowing on-site updates.
    • UL Listed for safety (certified by Underwriters Laboratories).
    • CE marking applies to DC-powered models.



    Playback Modes

    • Normal
    • Input Priority
    • Hold
    • Memory

    Command Modes

    • Sound Reduction
    • Factory
    • Public Address
    • Bit/Binary
    • MP3 ON/OFF
    • Forced Playback
    • Group Selection

    Terminal Input Assignment

    • Playback
    • Stop
    • Clear
    • Sound Reduction



    Video

    Specifications

    Rated Voltage - 12–24 V DC
    - 12–48 V DC
    - 100–240 V AC
    Audible Output - 63 selectable tones
    Mounting Method - Bracket mount (included)
    Body Color - Light gray
    Sound Pressure Level - Up to 110 dB at 1 m
    Sound Storage - Up to 63 sounds (refer to specifications)
    - 4 selectable playback modes
    Channel Selection - Bit Mode: 8-channel input
    - Binary Mode: 63-channel input
    Certifications - UL 464
    - CSA C22.2 No. 205-M1983
    - FCC Part 15 Subpart B Class A
    - CE (DC models)
    - RoHS compliant
    Ingress Protection - IP65
    Key Functions - Sound attenuation
    - MP3 file playback (SD card based)
    - Terminal block or cable interface
    - PNP/NPN input support
    - Uses MPEG Layer-3 audio codec licensed from Fraunhofer IIS and Thomson
    Remarks - Vibration tolerance: 4.5G
