'SAFER FOR THE EYE". No1 Global LED Signaling and Lighting Brand with Highest Industrial Quality, Conformity, IP and Safety Standards.
LED Vision Inspection Lighting Work light bar
- IP69K, IP68, IP67, IP66, IP65
- 200mm Length
- 6800K Daylight White
- DC 24V
- 0.5m Cable
- Conformity: CE, UL, ROHS.
- Highest Industrial Standards, Conformity, Quality and Value.

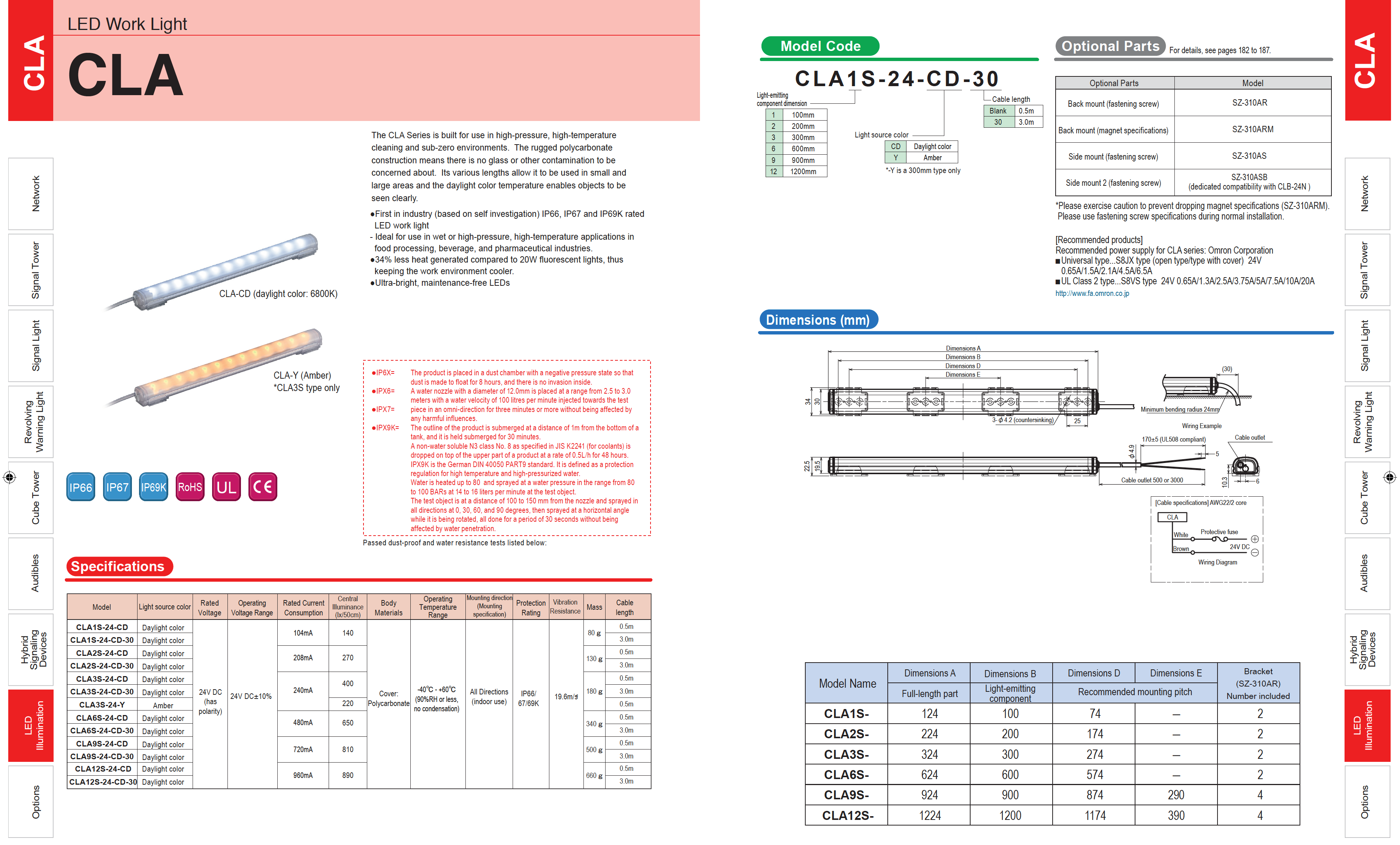

CLA / CLA-A LED Machine Lights Light Bar. IP69K Conformity, Ultra-bright Uniform LED Illumination, six Different Sizes, Waterproof
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.
|DIMENSIONS||Overall dimensions without brackets
・ 124mm x 30mm x 19.5mm
・ 224mm x 30mm x 19.5mm
・ 324mm x 30mm x 19.5mm
・ 624mm x 30mm x 19.5mm
・ 924mm x 30mm x 19.5mm
・ 1224mm x 30mm x 19.5mm
|RATED VOLTAGE||24V DC|
|MOUNTING||・ Snap-in screw mounted bracket
・ Snap-in magnetic mounted bracket
・ Side mounted brackets
・ Indoor, any direction
|BODY STYLE||・ Polycarbonate housing
・ Pre-assembled, pre-wired
|BODY COLOR||Body: Translucent-white|
|LIGHT SOURCE||・ High-intensity LED chip, Daylight
・ High-intensity LEDchip, Amber (324mm sizes only)
・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours
|LENS MATERIAL||Translucent-white Polycarbonate Resin|
|CONFORMITY STANDARDS||・ CE Marking
|PROTECTION RATING||・ IP66
