REPLACE YOUR FLURO'S TODAY. SAVE ENERGY & REDUCE COSTS. USE PATLITE CWA LED WORK LIGHTS. THE ONLY INDUSTRIAL GRADE GLOBAL BRAND WITH CONSIDERATION TO ' LONG TERM EYE SAFETY'.
PATLITE SIGNALFX CWA IP65 LED Lighting for Electrical Cabinets, Food Cabinets, Machine Vision, CNC Machine LED Lighting, Food & Beverage Inspection, Cabinets, Industrial, Retail, vending Machines, Commercial, Transportation, Buildings, Aviation applications. Contact us for more information, OEM, distributor discounts.

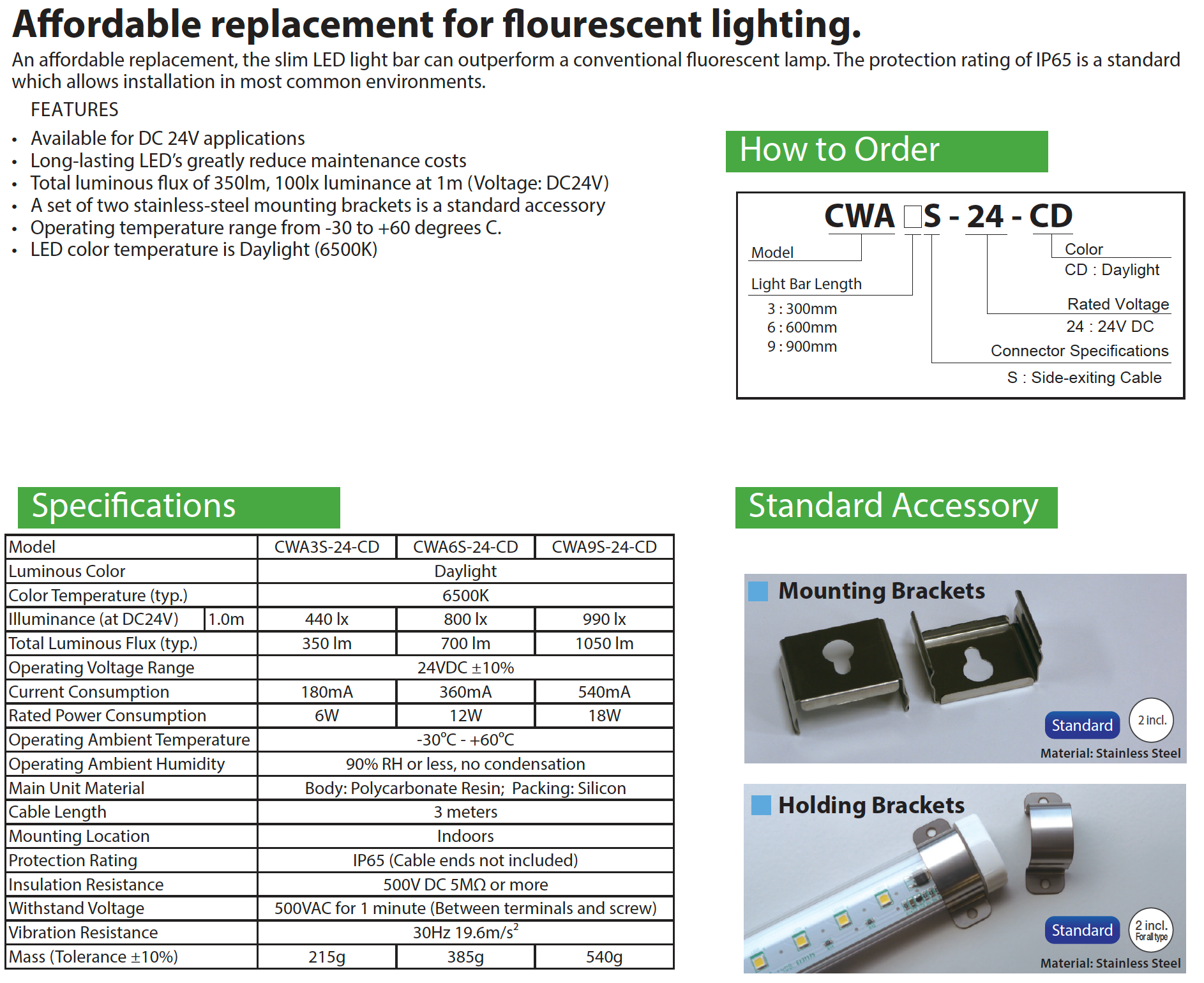

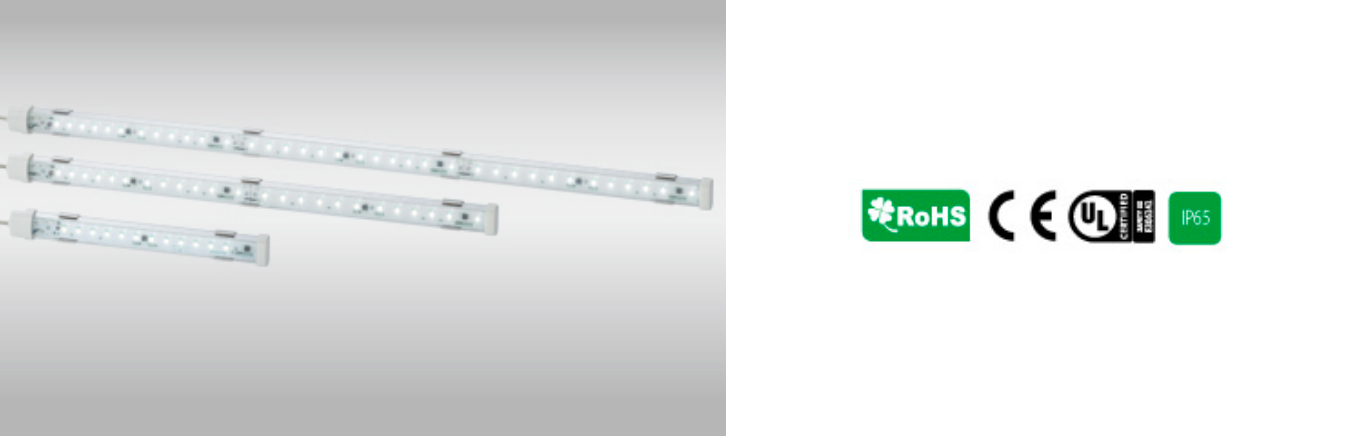

CWA LED Light Bar
- An affordable replacement, the slim LED light bar can outperform a conventional fluorescent lamp. The protection rating of IP65 is a standard which allows installation in most common environments.
- Available for DC 24V applications

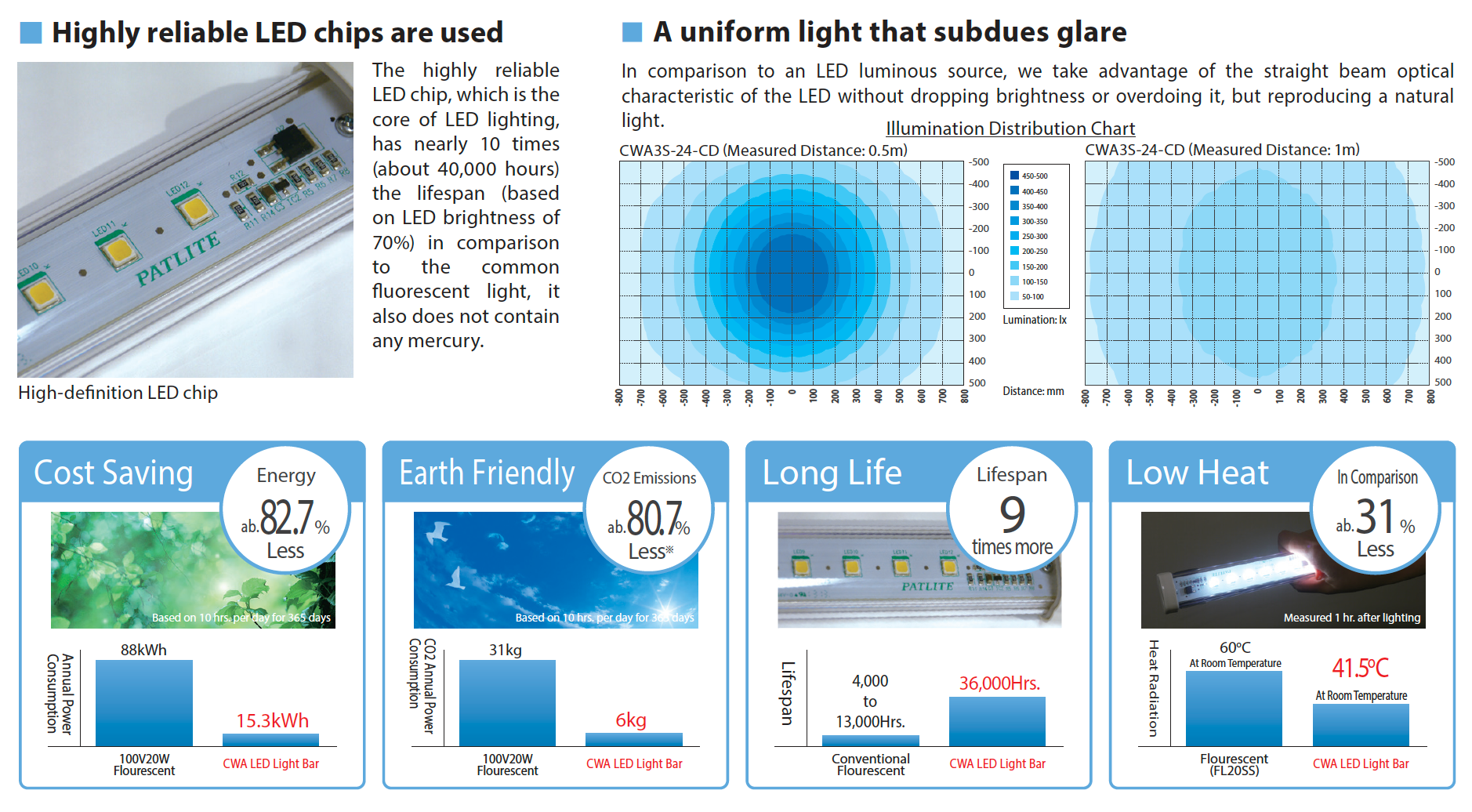

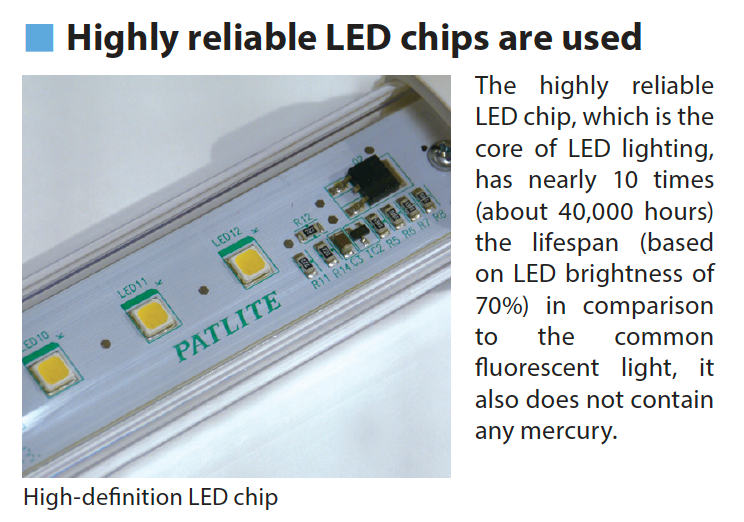

- Long-lasting LED’s greatly reduce maintenance costs
- Total luminous flux of 350lm, 100lx luminance at 1m (Voltage:DC24V)
- A set of two stainless-steel mounting brackets is a standard accessory
- Operating temperature range from -30 to +60 degrees C.
- LED color temperature is Daylight (6500K)
|OPERATING VOLTAGES||- 300mm Length: DC24V, 175mA,
- 600mm Length: DC24V, 365mA
- 900mm Length: DC24V, 550mA
|FUNCTIONS||- 300mm Length: 100 lux, 350 lum
- 600mm Length: 200 lux, 700 lum
- 900mm Length: 300 lux, 1050 lum
|MOUNTING||- Mount in any direction with the brackets included|
|LIGHT SOURCE||- High power LED Array|
|LENS MATERIAL||- Polycarbonate Resin|
|CONFORMITY STANDARDS||- RoHS
|PROTECTION RATINGS||- IP65 (IEC 60529)|
