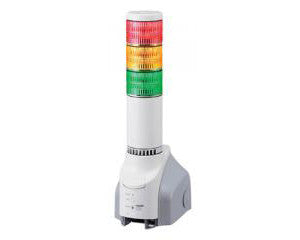

PATLITE SIGNALFX NHL-3FV1N Network Monitor Signal Tower with MP3 Custom Message & LED Light Status Indication

Regular price $2,999.00 Sale price $1,250.00 Save $1,749.00
1 in stock
PATLITE Signalfx IPS NHL-NHL-3FB1 NHL-FV1 network security monitoring software led signal tower light Oracle Trend Micro Fujitsu Fortinet Palo Alto

NHL-3FV1N Network Monitoring Signal Tower with Custom MP3 Messages, Melody, Alarm Tones.
Network monitoring signal tower with MP3 Voice alerts, LAN connectivity, and input/outputs and line out for additional network functions.

PING Monitoring & Quick Notification
Monitor & be notified of any NODE irregularities instantly by LED Warning Light and custom MP3 Voice messages. Actively Monitors system, software, device status and abnormalities.
SNMP TRAP Monitoring SNMPv1 SNMPv2c
Receive SNMP TRAP, quickly alerting the administrator or support with Clearly visibility LED Modular lights and Custom Sound. Catch notificaitons even when away from your screen.
APPLICATION Monitoring
Monitor Application status and be notified on any process or intrusion by creating custom commands to trigger the tower light.
SOCKET Communication
PHN PNS Command Compatibility
RSH
Trigger using RSH from Network Monitoring Software, IPS, other devices. Assign trigger to particular sounds, custom messages or LED colour module.
SLMP Seamless Message Protocal / MC Protocol Compatibility
Easy Connection to CC-Link IE Field Network systems in Industrial & IoT Automation applications
PNS Manager
Central Management Software for multiple tower lights on the same network.
EMAIL Notification System Built-in for Remote monitoring SNMP v2c
Auomatically forward logs and event information to upto 8 email address for remote monitoring of systems, software, hardware.


PING SNMP APPLICATION Monitoring Digital input NHL-3FV1 MP3 Voice Playback LED Warning light Patlite Signalfx Network Security Monitoring Notificaiton System LED Signal Tower Light modbus tcp ip

PING SNMP APPLICATION Monitoring Digital input NHL-3FV1 MP3 Voice Playback LED Warning light Patlite Signalfx Network Security Monitoring Notificaiton System LED Signal Tower Light modbus tcp ip

PING SNMP APPLICATION Monitoring Digital input NHL-3FV1 MP3 Voice Playback LED Warning light Patlite Signalfx Network Security Monitoring Notificaiton System LED Signal Tower Light modbus tcp ip

Model Specifications

DIMENSIONS - Tower diameter: 60mm
- Overall dimensions: 113mm x 154mm x 350mm

OPERATING VOLTAGES - 24V DC
PROTOCOLS - Physical Layer: 10 BASE-T/100 BASE-TX
- Data Link Layer: CSMA/CD
- Network Layer: IP/ICMP/B6
- Transport Layer: TCP/UDP
- Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP

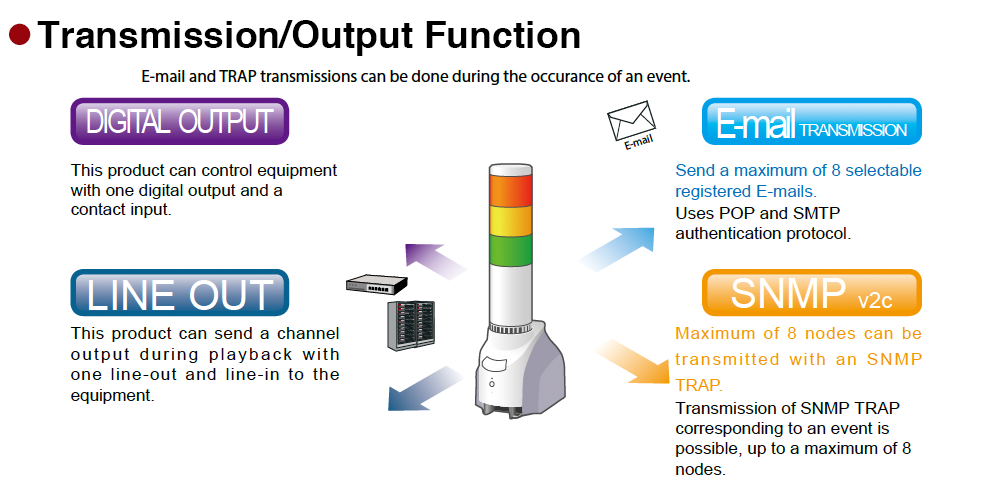

FUNCTIONS - Ping Device monitor
- Digital Input and Output
- RSH command
- SNMP v1・v2C
- Application monitor
- SOCKET
- E-mail Transmission
- Line Out
- Easy Access Volume Control
- Preset Sound: Buzzer; 4 Selections
Chime; 3 Selections
Message; 3 Selections
BODY STYLE Interface converter:
- Low profile steel casing
- Bumper pads installed to protect surface finish

Tower:
- Pre-assembled, mounted to converter base
- LED modules are interchangeable
BODY COLOR - Interface Converter Base: Off-white
- Tower: Beige
STACKABLE TIERS - 3 tiers only
MODULE COLORS - LED source Color: Red/Amber/Green (only)
- Lens Color: clear Lens
AUDIBLE STYLE - Audio File Formal: MPEG1-Audio Layer Ⅲ (MP3) Sampling Frequency 44.1kHz
- Bite Rate: 32kbit/s, 64kbit/s (Standard Rate), 128kbit/s
Constant Bit Rate (CBR) Only
- Number of Playback Messages: USB Memory Transfer Package: 30 kinds
Web Setup Tool Registrations: 30 kinds
Preset Registrations: 10 kinds
CONFORMITY STANDARDS - CE Marking
- UL 1638, CAN/ULC-S526
- RoHS (EN50581)
- FCC Part 15 Subpart B Class A
- EMC Directive (EN 55032 (Class A), EN 55024)
PROTECTION RATINGS - IP20 (IEC 60529)

Accessories

 Wall-mount Bracket
NH-WST2
Wall-mount Bracket
