PATLITE LA6-POE LA6-5DSNWB-POE Network POE Ethernet LED Signal Tower Light

Regular price $2,000.00 Sale price $900.00 Save $1,100.00
0 in stock

LA6-POE TCP/IP Modbus Network LAN Network Signal Tower for the Smart Factory, Retail, Information Technology, Security, System environment.

World's No1 LED Status and Process Signal Tower Light Brand. Revolutionary LA6 Series Signal Tower!

Change from the Traditional Simple 'STATUS DISPLAY' to 'PROCESS & TIME DISPLAY'.  The LA6 can display gradual colour patterns and sounds reflecting Level Indication, Time Indication, Temperature Indication, Remote-Mirroring, Count Down Timer. Program your own Colours and patterns to create a LED Signal Tower Light that suits your application and environment. Every system is unique, and LA6 can adapt to suit your particular needs. Easily access via USB or over the Network for remote programming and triggering. This is the LED Indicating Signal Tower Light of the future!

Programmable over the Network, Modbus, TCP/IP, Ethernet, Mirroring-Function, Power Over Ethernet (POE), Built-in Countdown Timer, 21 Colours, 11 Alarm Sounds.

We have Price-Beat, Volume, Reseller, OEM, Project, Export discount programs. Contact us 'Request Quote' button below. We look forward to working with you in near future.

Request a quote patlite signalfx australia new zealand singapore thailand europe uk france malaysia indonesia japan usa

  Products Overview

Product Features

This product has a new "Smart Mode" function; in addition to the"Signal Tower Mode", which can directly control the LED and buzzer like a standard signal tower. In the "Smart Mode", various displays can be shown, such as a slow flashing rate, simulating that of a firefly and a display that can be used as a level meter. In addition to the signal line input control, since it is compatible with the Power over Ethernet (henceforth, PoE), it can be operated through a LAN Cable, using Modbus/TCP protocol, to acquire signal tower status conditions via the network, and control it in the Signal Tower Mode or Smart Mode. Also, this product can use the mirroring function, in which one signal tower can show the same status as the other, but in a different location.
Since the Signal Tower is the LA6, the dedicated application software, "EDITOR for LA series" can be used to reflect the setting data via the network.

Model Specifications

DIMENSIONS - 60mm Diameter
OPERATING VOLTAGES - 24V DC
Power over Ethernet (PoE): 48V DC
FUNCTIONS Operational Method:
- Signal Wire Control
- Command Control

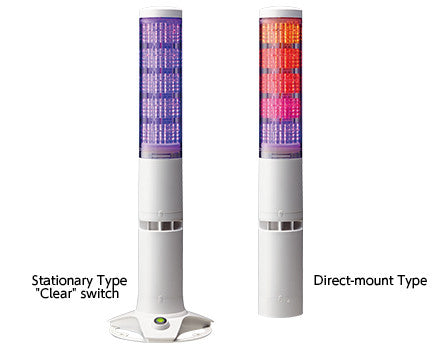

BODY STYLE - TN : Direct Mount Type
- SN : Stationary Type
BODY COLOR - Off-white Only
STACKABLE TIERS - 5 Tier Only
MODULE COLORS Display Color Variations
- Signal Tower Mode: 9 Colors
- Smart Mode: 21 Colors
AUDIBLE STYLE - 11 alarm sounds available
CONFORMITY STANDARDS - EMC Directive
- RoHS Directive
- UL 508
- FCC
- KC
PROTECTION RATINGS - IP54 (IEC 60529)

Accessories


NH-WST2
Wall-mount Bracket

SZK-003W/U/K
Wall-mount Bracket



SZW-060W
Installation Bracket
