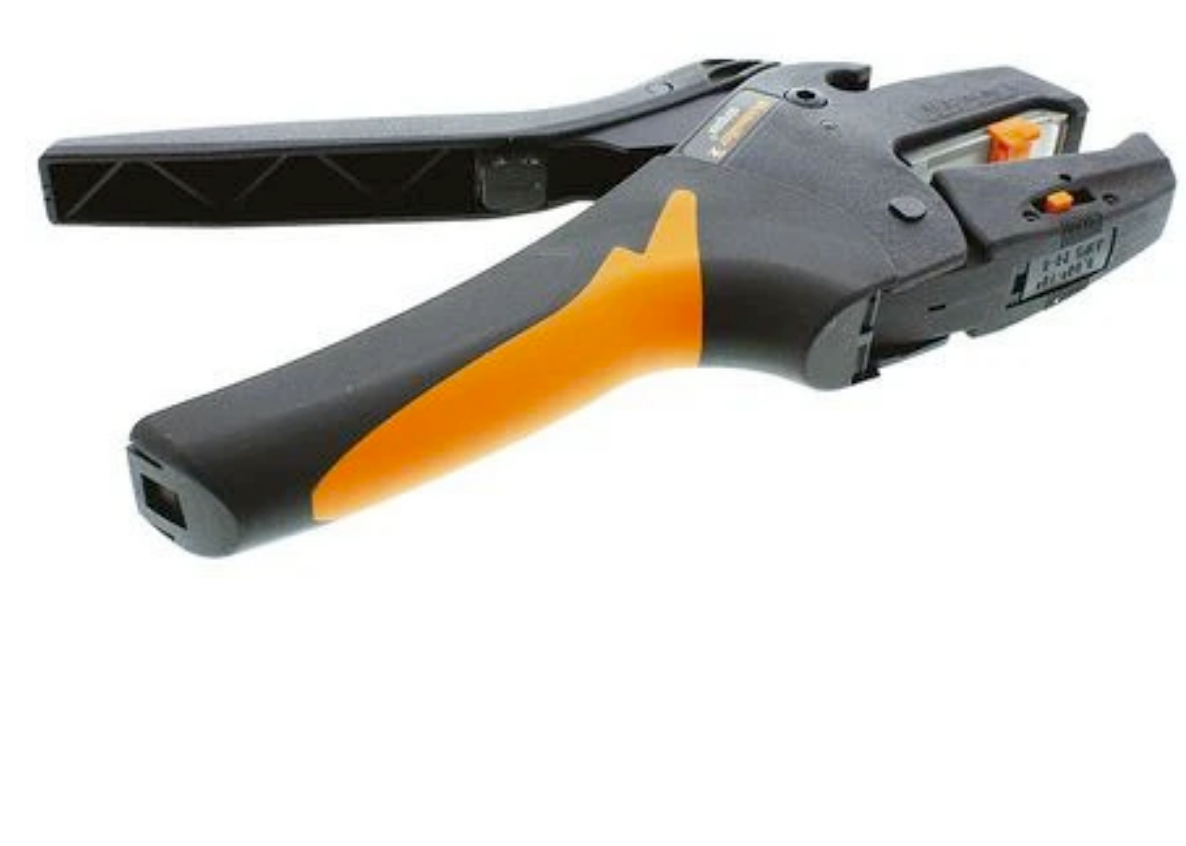

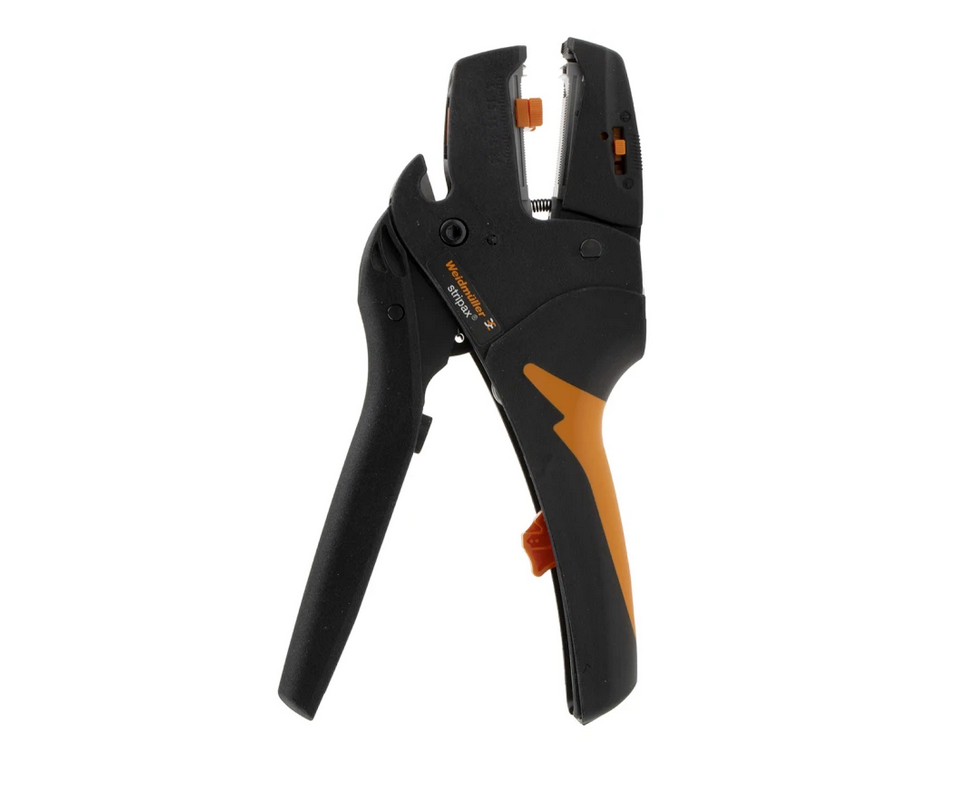

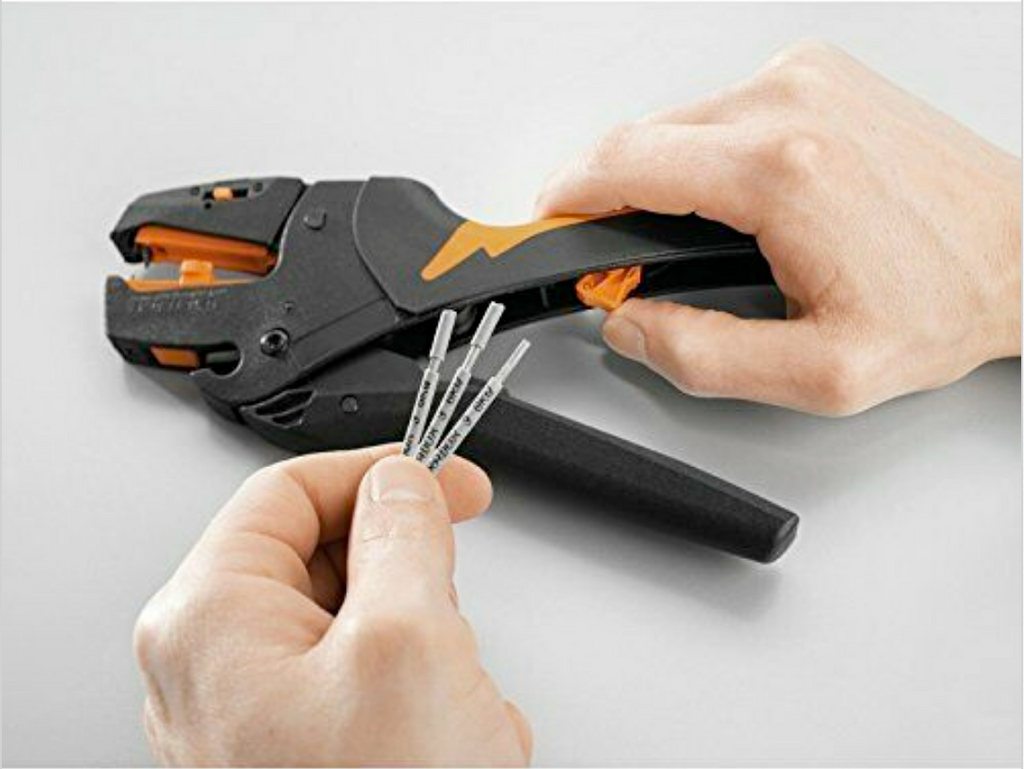

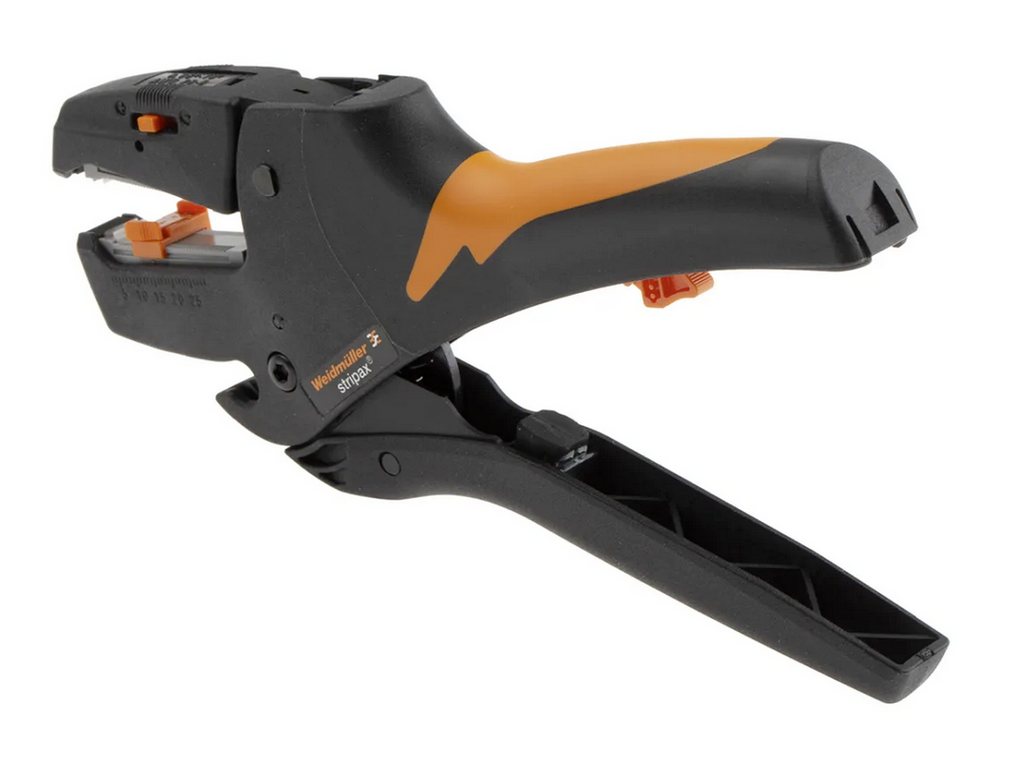

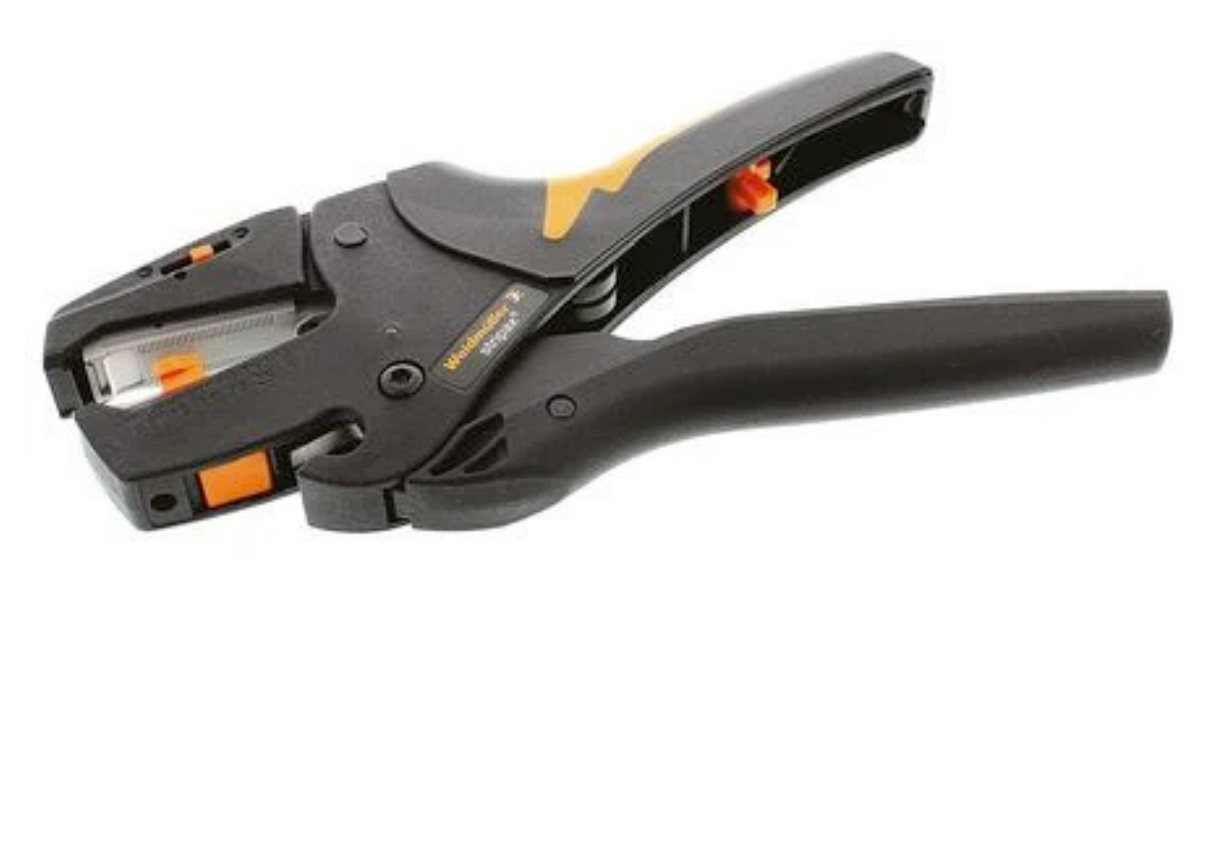

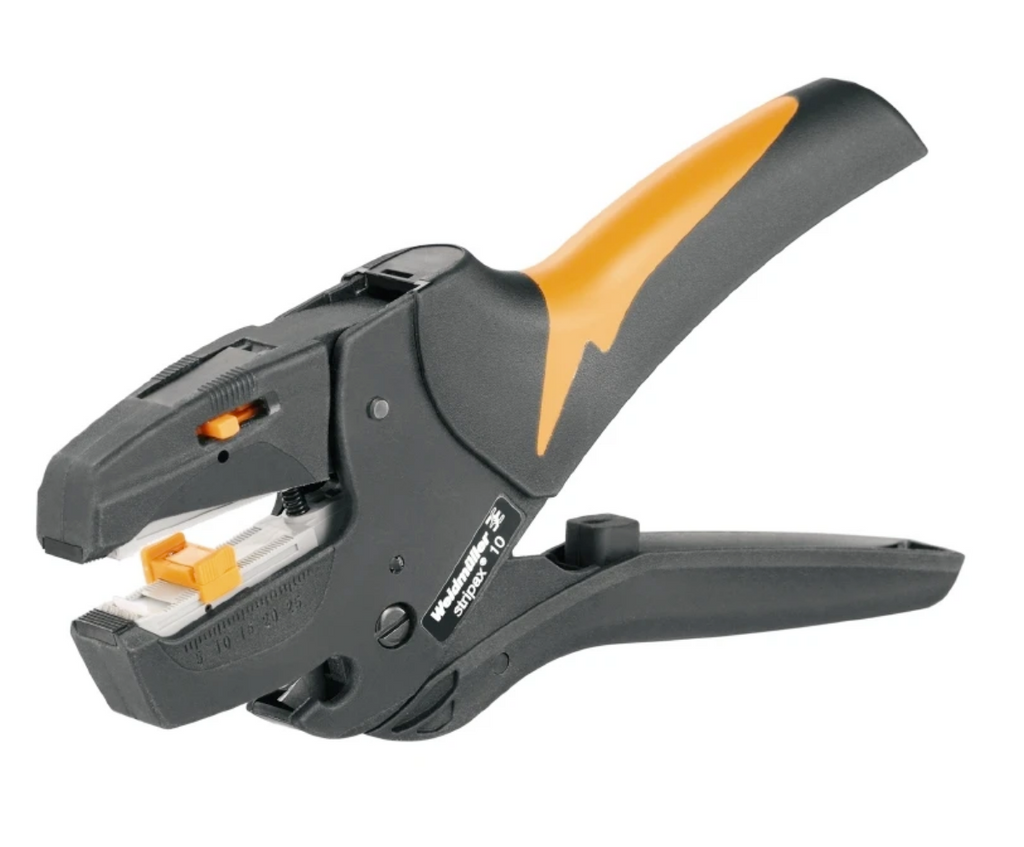

Weidmuller STRIPAX World's No1 Automatic Wire Stripping Tool


Price:
$135

Description

STRIPAX - World's No1 Automatic Wire Stripping and Cutter Tool

Stripax Automatic Stripper and Cutter Weidmuller

Stripping and cutting tool, Flexible and solid conductors with PVC insulation, 10mm², 25mm

  • Stripping tools with automatic self-adjustment
  • For flexible and solid conductors
  • Ideally suitable for mechanical and plant engineering, railway and rail traffic, wind energy, robot technology, explosion protection as well as marine, offshore and ship building sectors

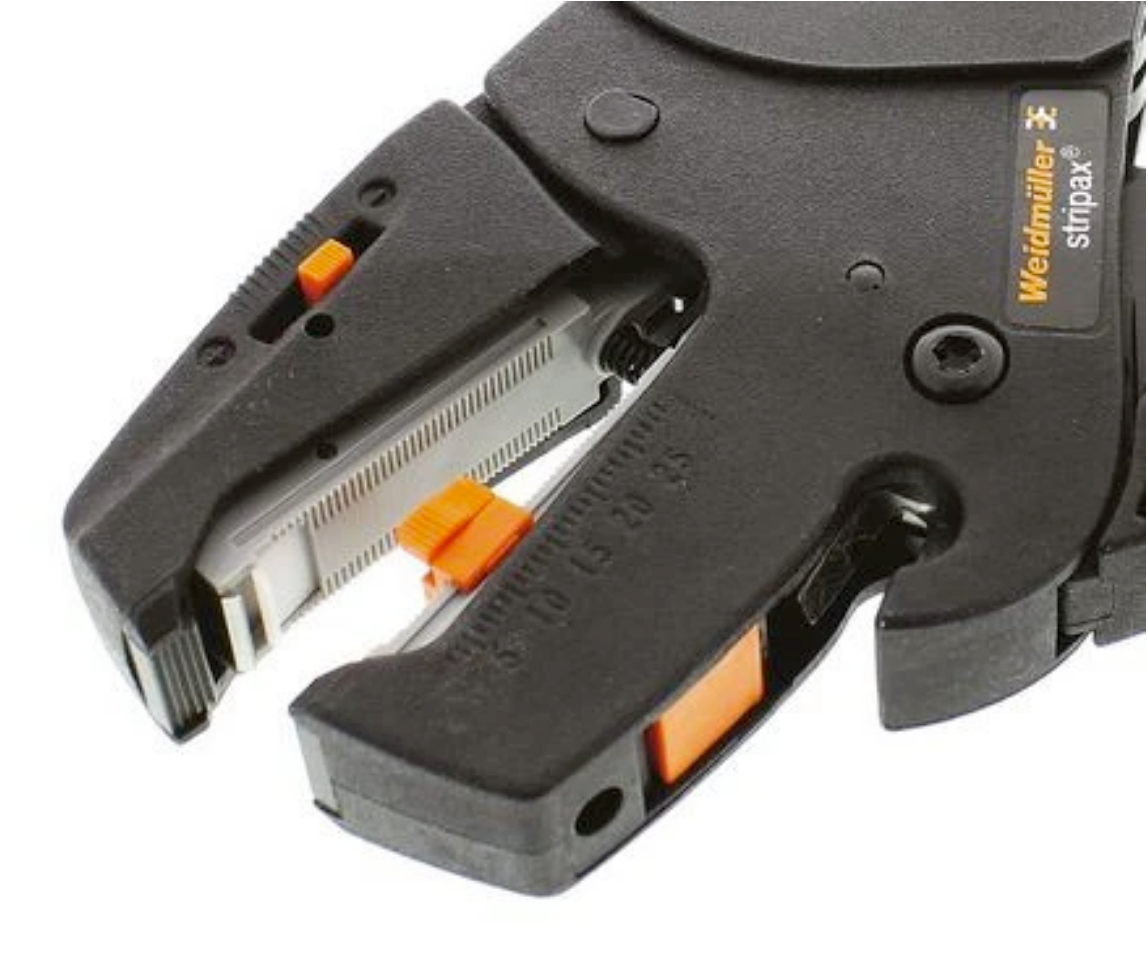

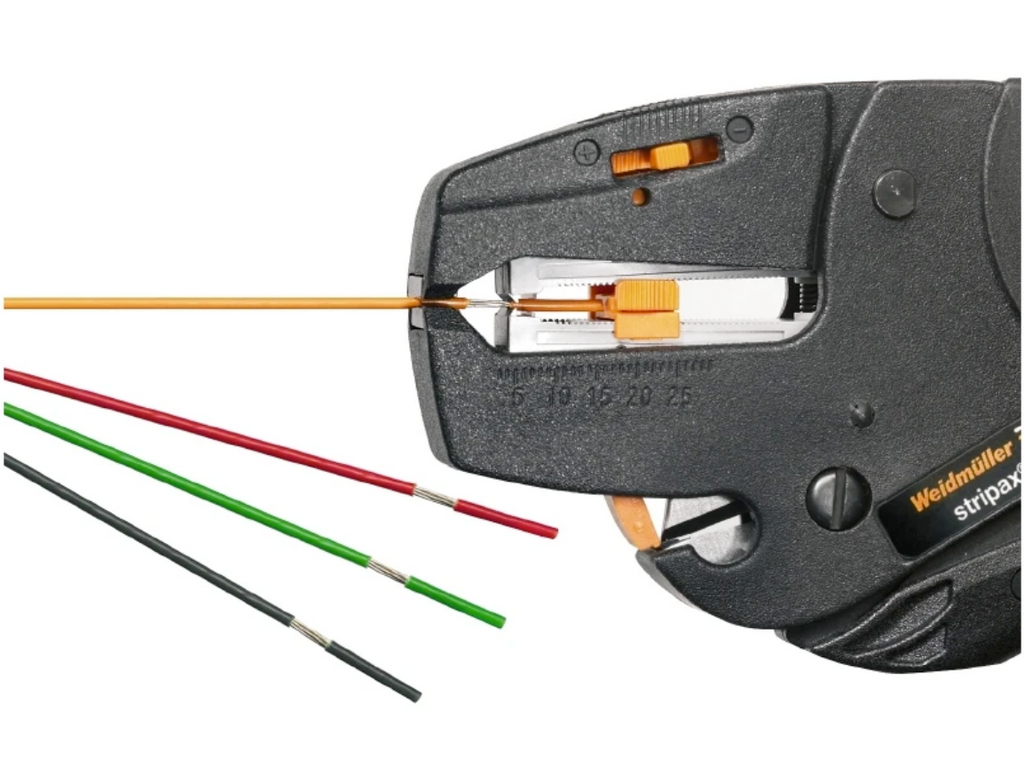

  • Stripping length adjustable via end stop

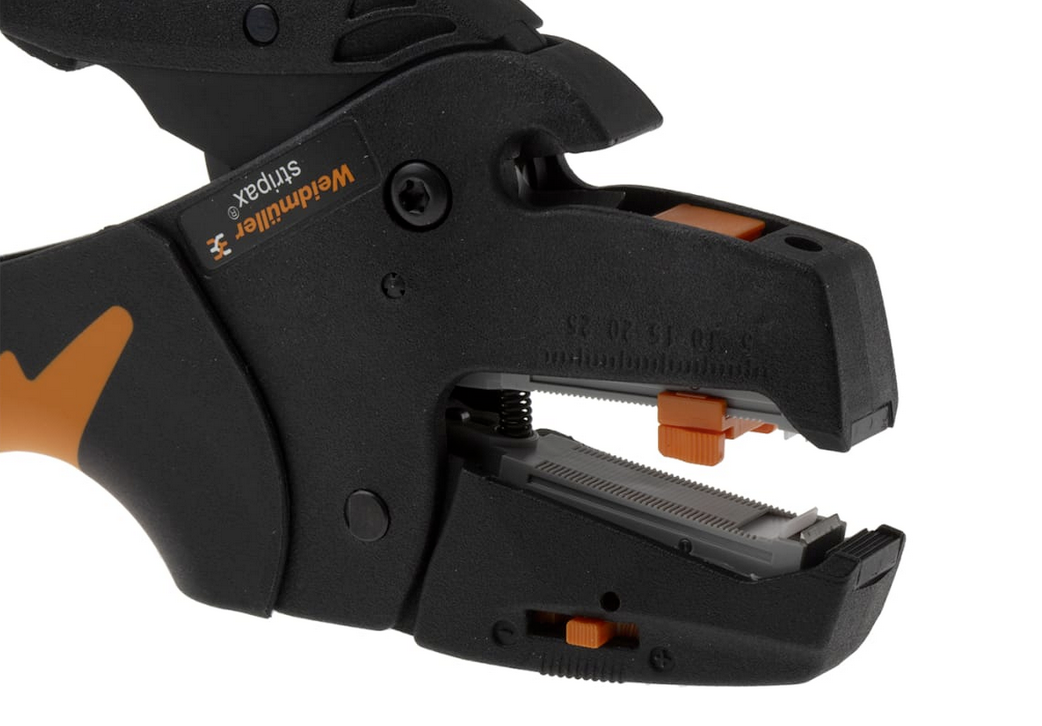

  • Automatic opening of clamping jaws after stripping
  • No fanning-out of individual conductors
  • Adjustable to diverse insulation thicknesses
  • Double-insulated cables in two process steps without special adjustment
  • No play in self-adjusting cutting unit
  • Long service life
  • Optimised ergonomic design

Code 9005000000

Product Specifications

Cable type Flexible and solid conductors with PVC insulation
Conductor cross-section (cutting capacity) 6 mm²
Conductor cross-section, max. 10 mm²
Conductor cross-section, min. 0.08 mm²
Conductor cross-section, min. AWG AWG 28
Stripping length, max. 25 mm
Stripping range, min. 0.08 mm²
Approvals EAC
ROHS Conform
