Description

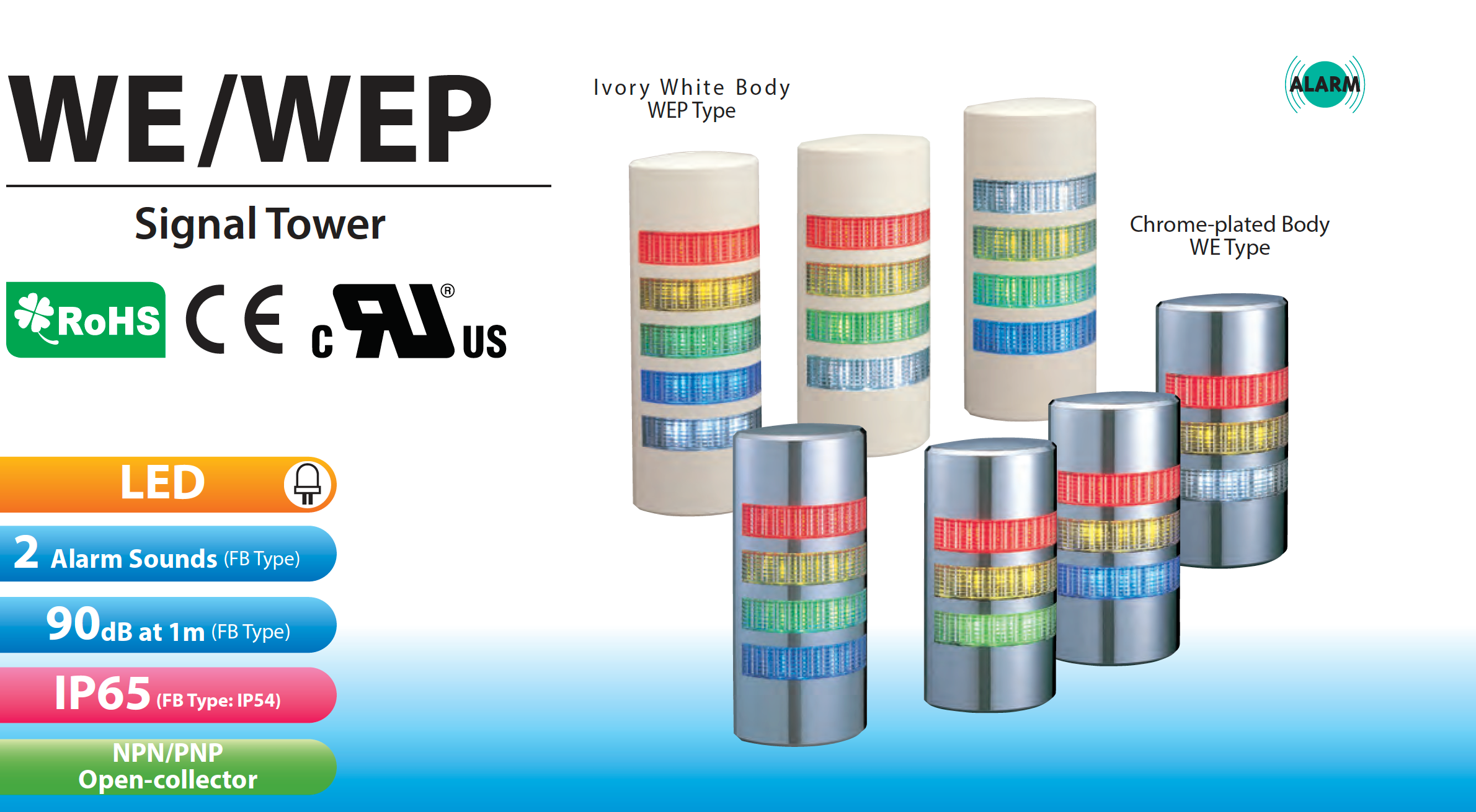

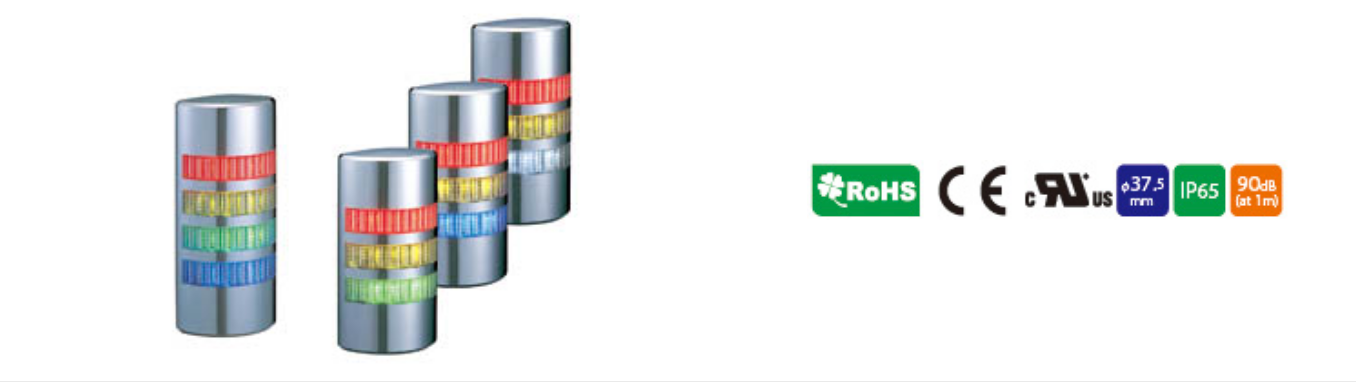

HIGH GRADE PATLITE SIGNALFX 'Christmas Tree' Crane Safety Lights External Load Capacity Indication Warning LED Tower Light

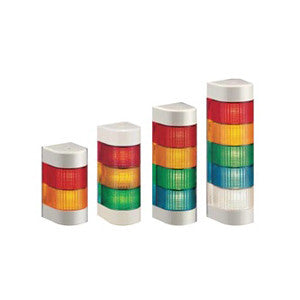

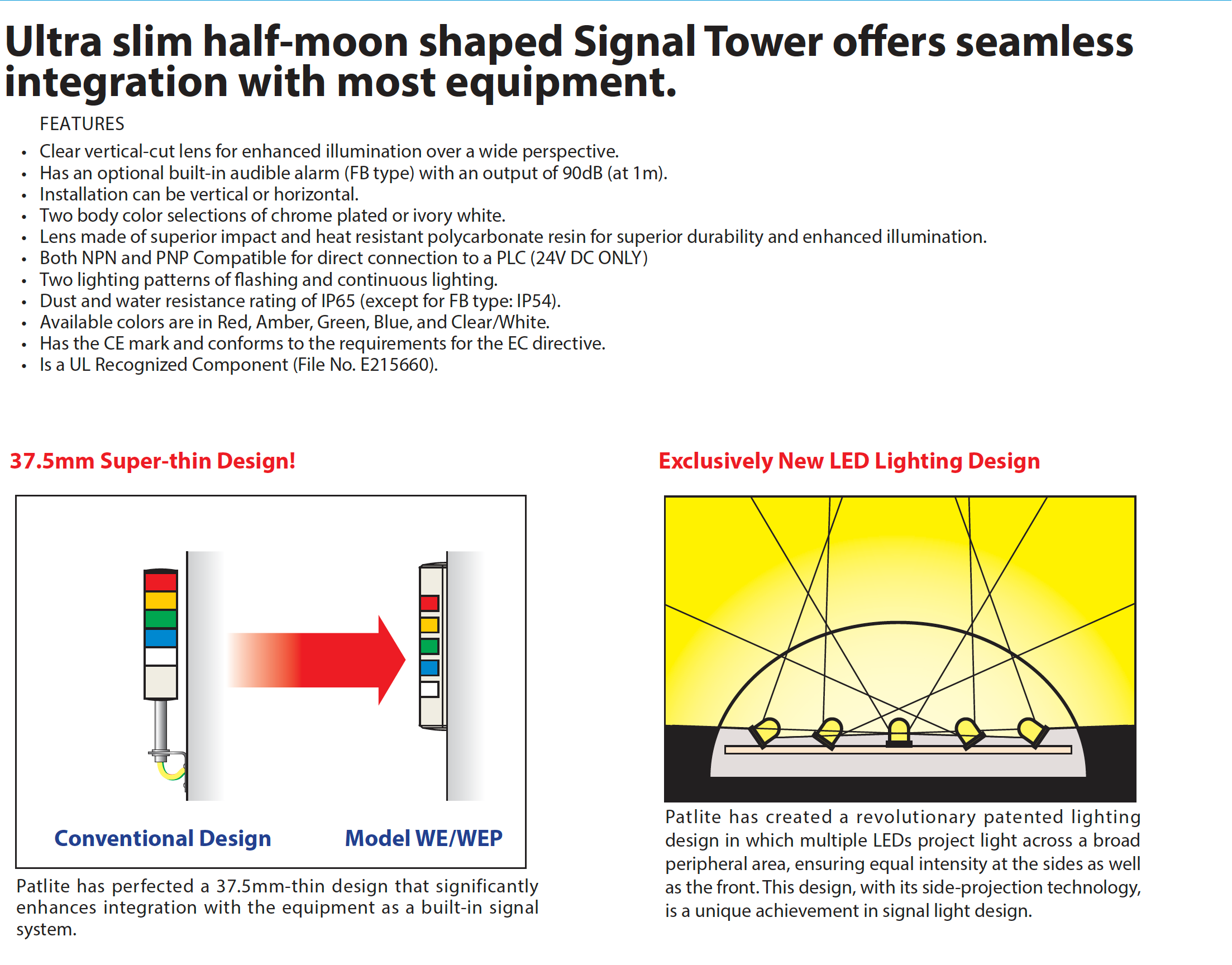

Ultra slim half-moon shaped Signal Tower offers seamless
integration with most equipment.
FEATURES

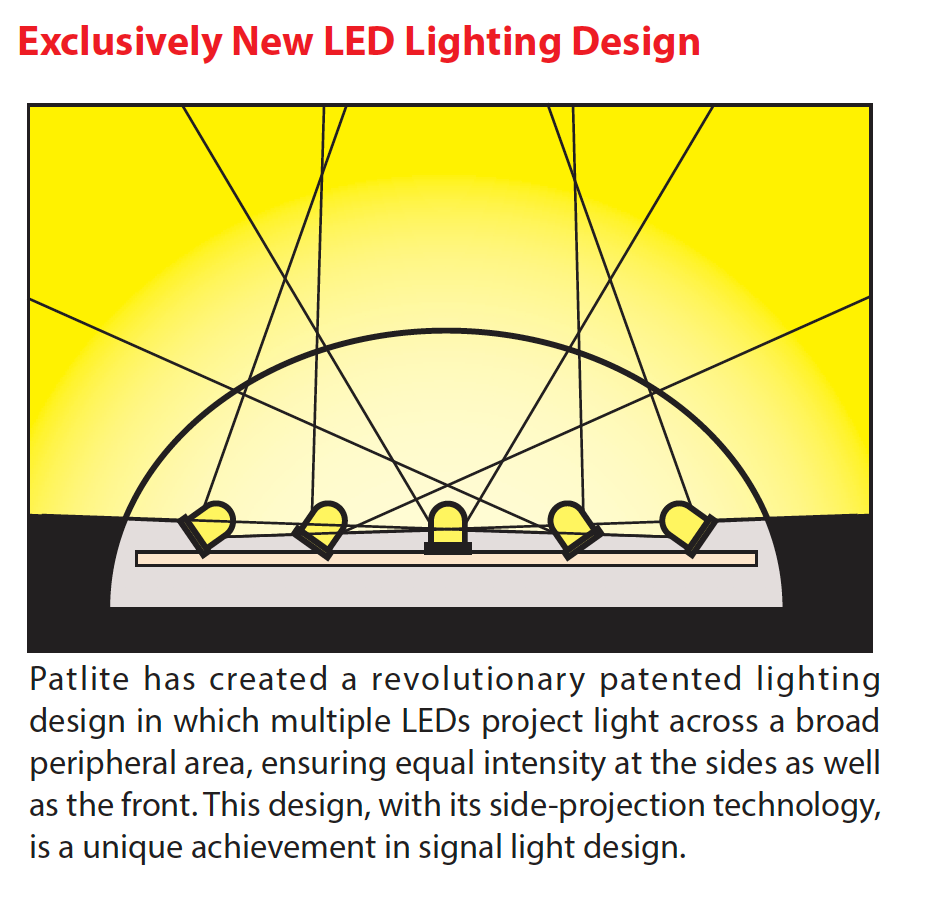

• Clear vertical-cut lens for enhanced illumination over a wide perspective.
• Has an optional built-in audible alarm (FB type) with an output of 90dB (at 1m).
• Installation can be vertical or horizontal.
• Two body color selections of chrome plated or ivory white.
• Lens made of superior impact and heat resistant polycarbonate resin for superior durability and enhanced illumination.
• Both NPN and PNP Compatible for direct connection to a PLC (24V DC ONLY)
• Two lighting patterns of flashing and continuous lighting.
• Dust and water resistance rating of IP65 (except for FB type: IP54).
• Available colors are in Red, Amber, Green, Blue, and Clear/White.
• Has the CE mark and conforms to the requirements for the EC directive.
• Is a UL Recognized Component (File No. E215660).
Model Specifications

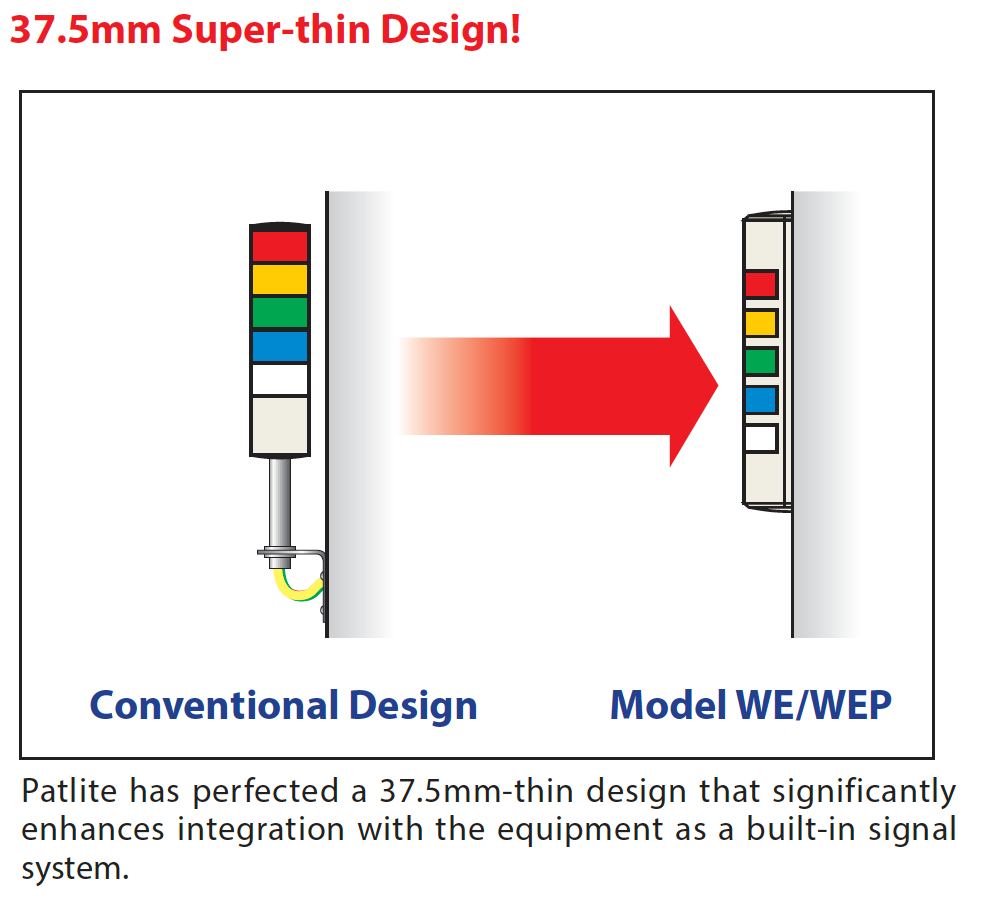

| DIMENSIONS | - 37.5mm profile |
|---|---|
| OPERATING VOLTAGES | - 24V AC/DC |
| FUNCTIONS | - Continuous Only - Continuous, Alarms |
| MOUNTING | - Wall Mount |
| BODY STYLE | - Pre-assembled, pre-wired |
| BODY COLOR | - Body: Chrome Plated |
| STACKABLE TIERS | - Available from 3 to 5 tier versions |
| MODULE COLORS | - Red - Amber - Green - Blue - Clear |
| AUDIBLE STYLE | - Alarm 1: Selectable, single-tone, intermittent (fast beep) alarm; 85dB (at 1m) - Alarm 2: Selectable, single tone, intermittent (slow beep) alarm; 85dB (at 1m) |
| CONFORMITY STANDARDS | - UL Listed (E215660) |
| PROTECTION RATINGS | - IP65 / IP54 (FB Alarm Version) |
