Description
Built to the Traditional PATLITE Japan Standard
Engineered and manufactured in Japan, the PATLITE SKP Series represents the traditional industrial quality that helped establish PATLITE as a trusted name in visual warning and signalling equipment.

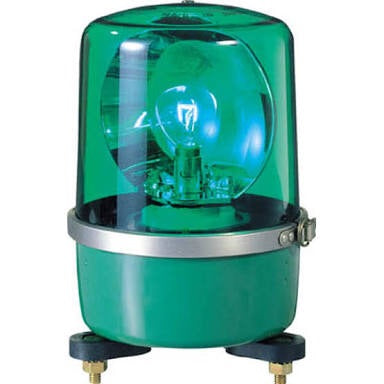

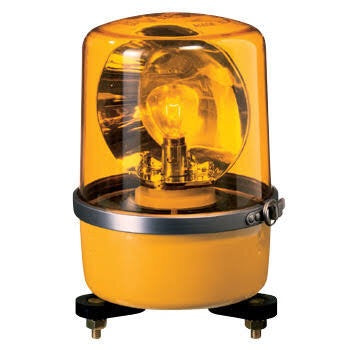

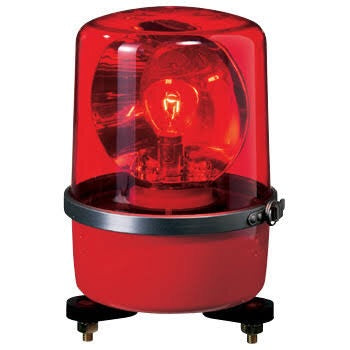

The SKP-120A combines a heavy-duty metal casing, corrosion-resistant SUS304 stainless steel lens mounting fixture, impact-resistant polycarbonate dome and precision gear-driven rotating mechanism. It was designed for dependable industrial operation rather than minimum manufacturing cost.
Classic PATLITE rotating beacons can still be seen operating on industrial machinery, manufacturing equipment, processing plant, construction machinery and mining equipment after many years of service. Their robust construction and stable mechanical operation have earned the trust of maintenance teams, machine builders and industrial operators.
This is traditional PATLITE engineering from an era when industrial equipment was built to last.
Indoor & Outdoor Use
Suitable for fixed industrial installations both indoors and outdoors. Indoor installation may be upright, inverted or sideways. For outdoor installations, mount the beacon upright in accordance with the PATLITE installation requirements.
Industrial-Grade Construction
Japanese Industrial Engineering
Engineered and manufactured in Japan to the classic PATLITE standard for dependable industrial operation.
Heavy-Duty Metal Casing
Robust metal construction provides a substantial industrial housing that is considerably stronger than lightweight plastic economy beacons.
Precision Gear-Driven Mechanism
The gear-driven rotary mechanism provides stable warning-light rotation under vibration and demanding operating conditions.
Impact-Resistant Dome
High-grade polycarbonate dome provides excellent impact and heat resistance for demanding industrial installations.
Corrosion-Resistant Hardware
SUS304 stainless steel lens mounting hardware supports dependable service in industrial and correctly mounted outdoor installations.
Proven Long Service Life
A classic rotating beacon design that can still be seen operating on machinery and industrial equipment after many years of service.
Industrial Applications

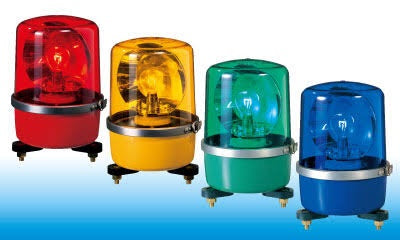

Available Lens Colours

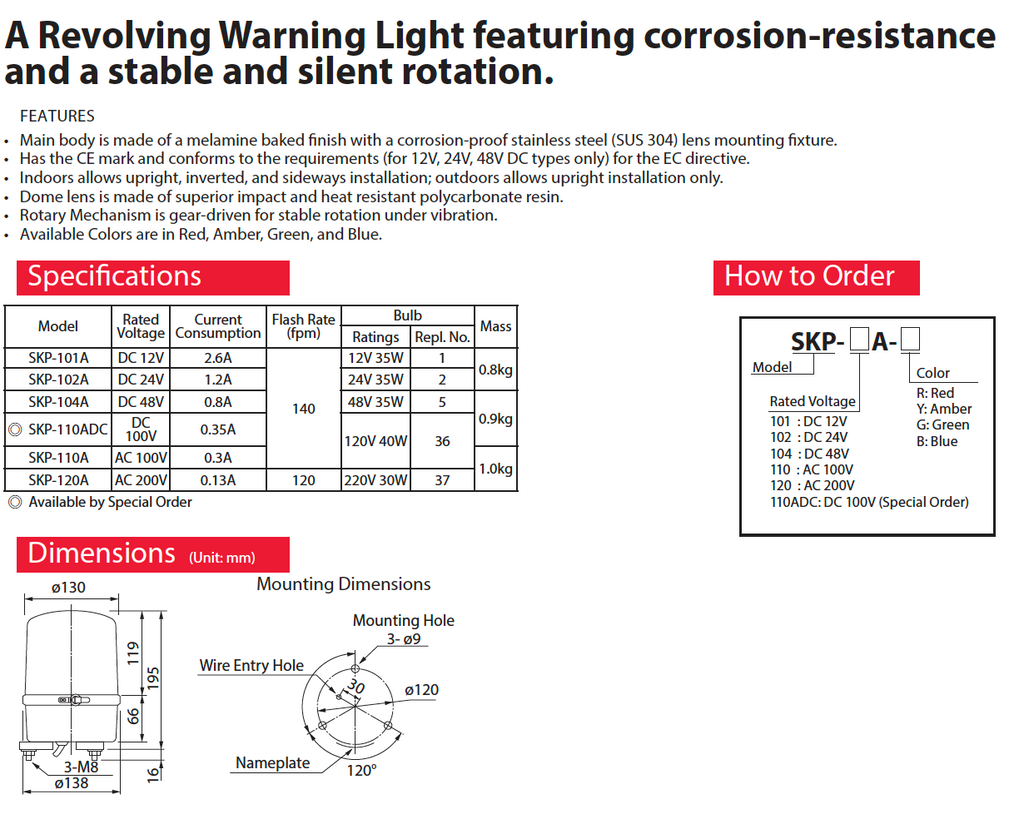

SKP-120A Engineering Specifications
| Specification | PATLITE SKP-120A |
|---|---|
| Model | SKP-120A |
| Voltage Edition | 200–240V AC edition |
| Catalogue Rating | 200V AC nominal |
| Current Consumption | 0.13A |
| Light Source | 220V 30W incandescent bulb |
| Replacement Bulb | No. 37 / D22003024-F1 |
| Beacon Diameter | 138mm |
| Rotation Rate | Approximately 120 rpm |
| Signal Function | Motor-driven rotating visual warning signal |
| Body Construction | Heavy-duty metal casing with melamine baked finish |
| Lens Mounting Fixture | Corrosion-resistant SUS304 stainless steel |
| Dome Material | Impact and heat-resistant polycarbonate resin |
| Mounting | Direct surface mount |
| Indoor Installation | Upright, inverted or sideways |
| Outdoor Installation | Upright installation only |
| Available Colours | Red, Amber, Green or Blue |
| Approximate Mass | 1.0kg |
| Protection Rating | IP Rated |
SKP-120A Model Numbers
Optional Accessories
Wall Mount Bracket
Optional wall mounting bracket for compatible PATLITE warning-light installations.
Wall Mount Bracket
Optional mounting solution for compatible PATLITE rotating beacon installations.

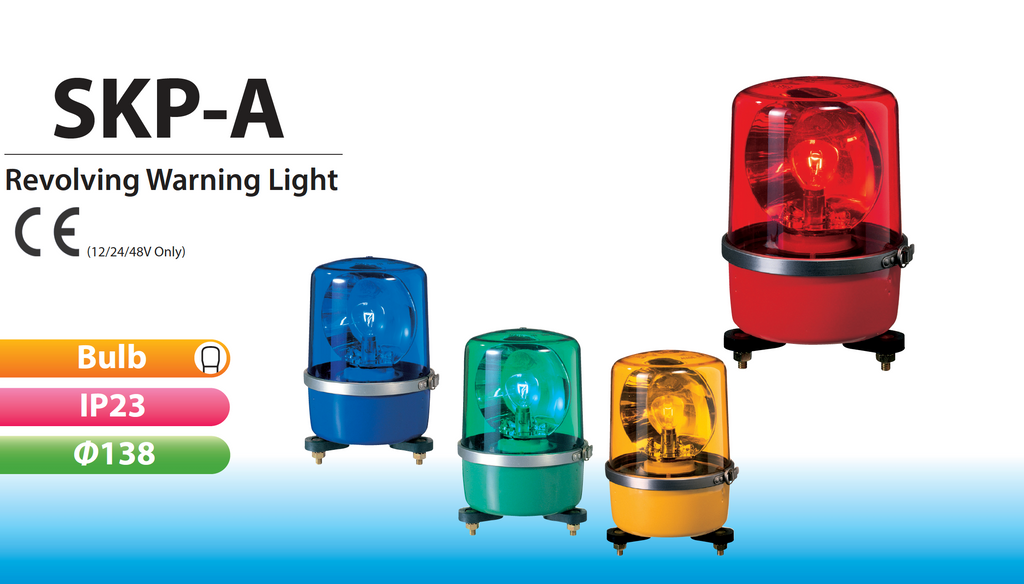

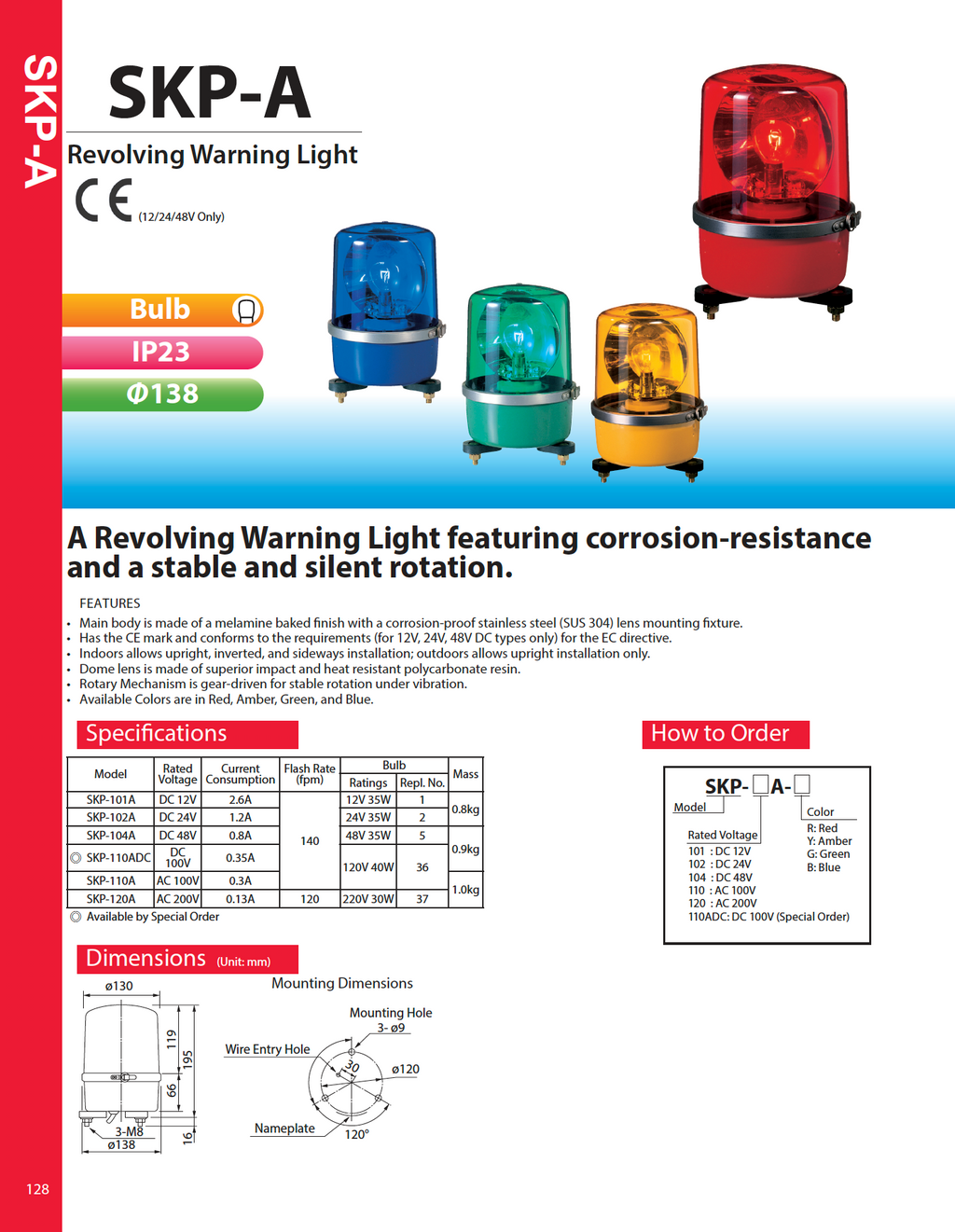

PATLITE SKP-A Series Model Reference
PATLITE SKP-A Series rotating beacon and revolving warning light model numbers:
The PATLITE SKP-A Series includes 12V DC, 24V DC, 48V DC, 100V AC and 200V AC nominal rotating warning lights. These industrial revolving beacons are suitable for machinery, manufacturing facilities, processing equipment, construction equipment, fixed plant, mining equipment and indoor or outdoor safety signalling throughout Australia, Japan, New Zealand and international markets.
