Description
<Replaced by the upgraded WME-D>

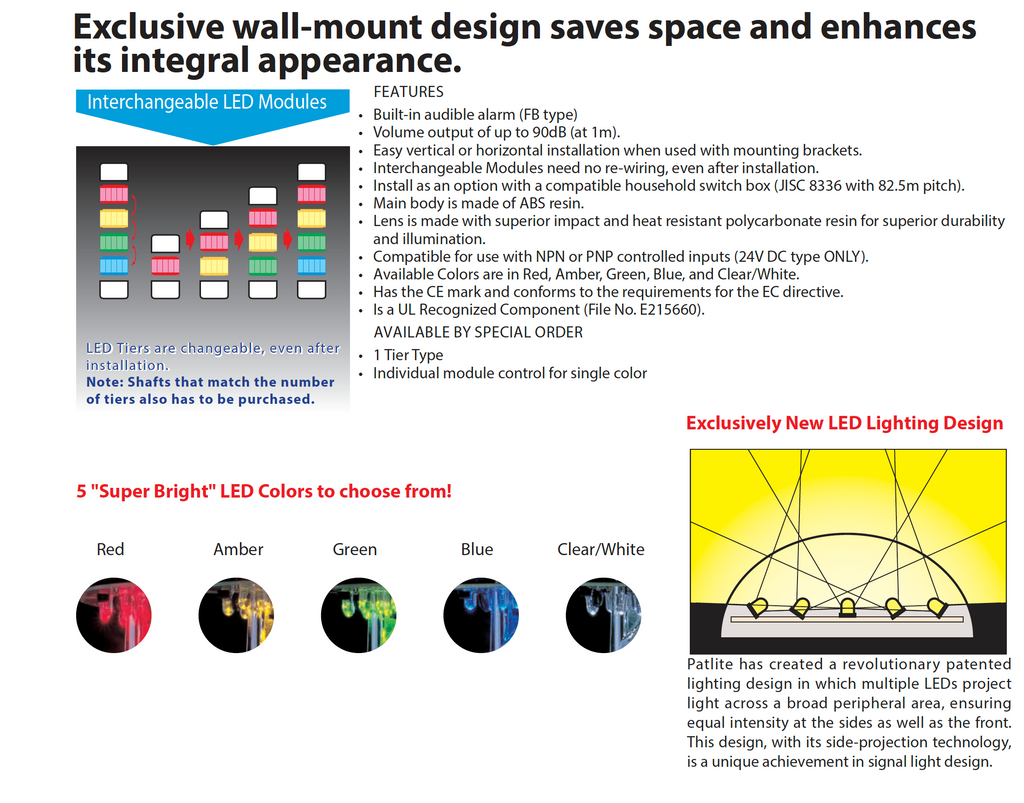

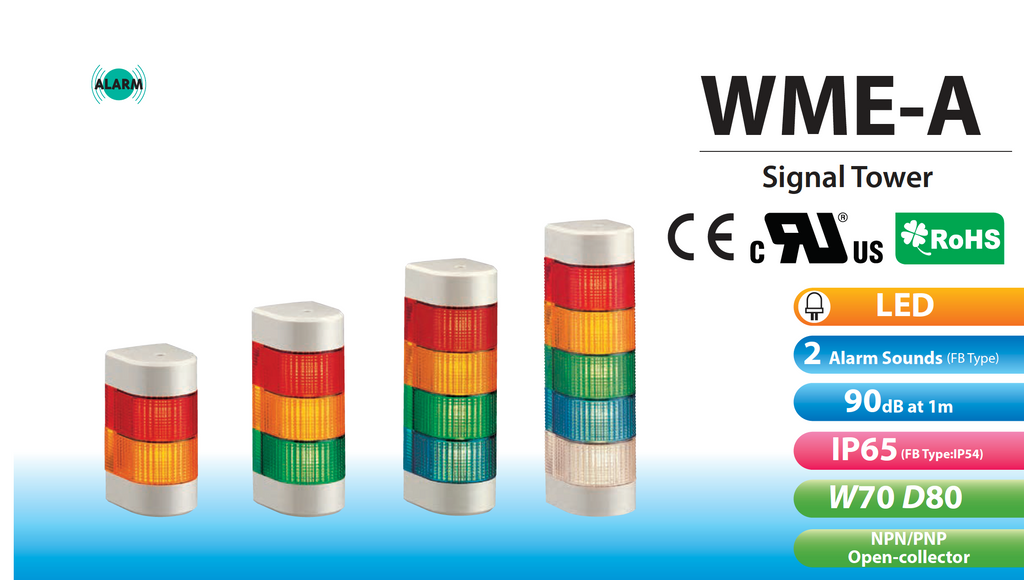

The WME-A Series offers an LED Signal Tower that is designed to save space and enhance its integral appearance.
Features:
- Built-in audible alarm (FB type).
- Volume output up to 90dB (at 1m).
- Easy vertical or horizontal installation when used with mounting brackets.
- body is constructed of ABS resin with superior resistance to impact and heat.
- is made with superior impact and heat resistant polycarbonate resin for superior durability and illumination.
- Compatible for use with NPN or PNP controlled inputs (24V DC type ONLY).
- Available : Red, Amber, Green, Blue, and Clear/White.
- Has the CE mark and conforms to the requirements for the EC directive.
- Is a UL recognized Component (File No. E215660).
Technical Specifications
|
Physical
|
|
| Case/Package | Module |
| Color | Yellow |
| Lens Color | Orange |
|
Technical
|
|
| Current Rating | 26.6 mA |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Operating Supply Voltage | 24 V |
| Power Rating | 3.3 W |
|

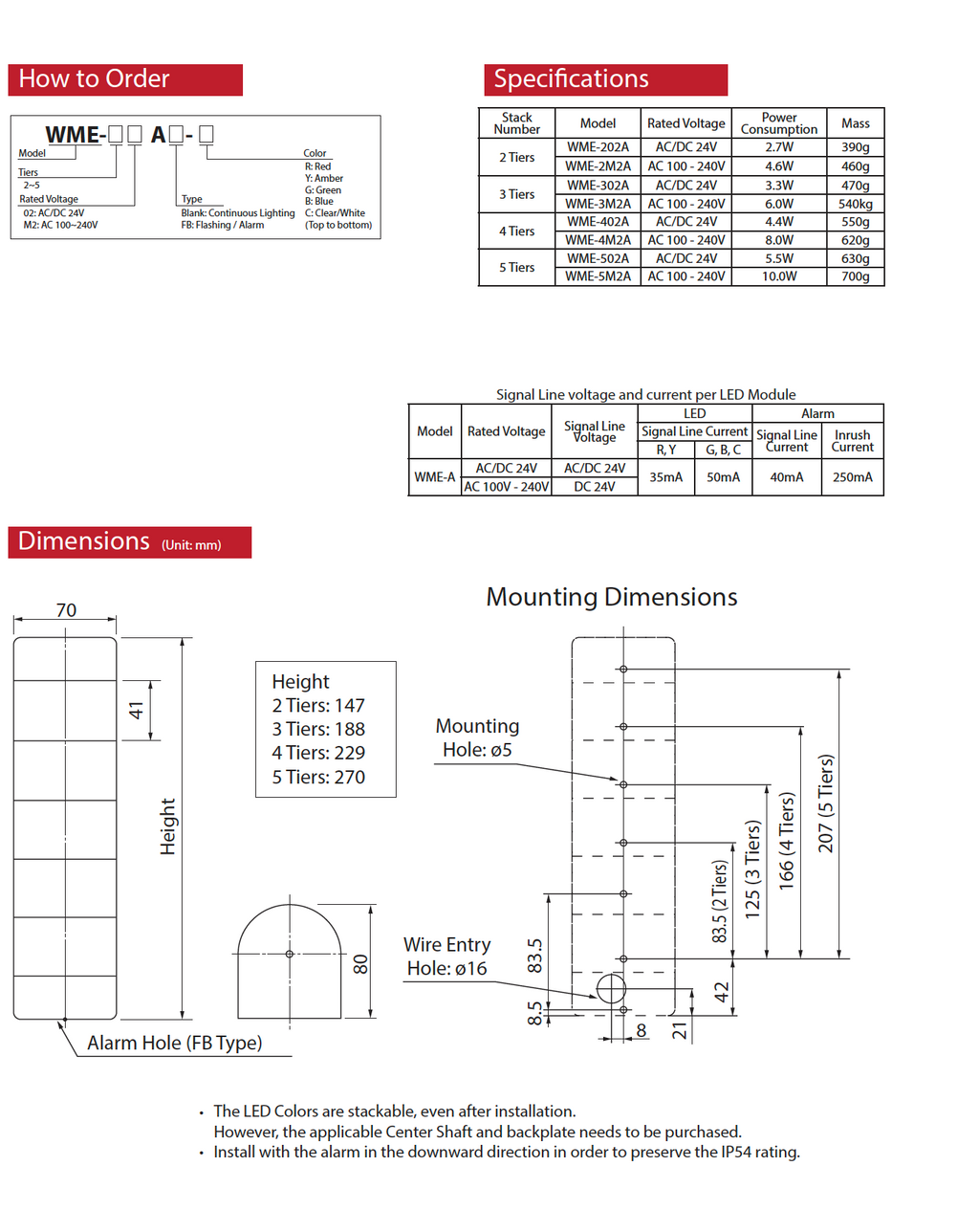

Dimensions
|
|
| Height | 188 mm |
| Length | 188 mm |
|
Compliance
|
|
| IP Rating | IP65 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
