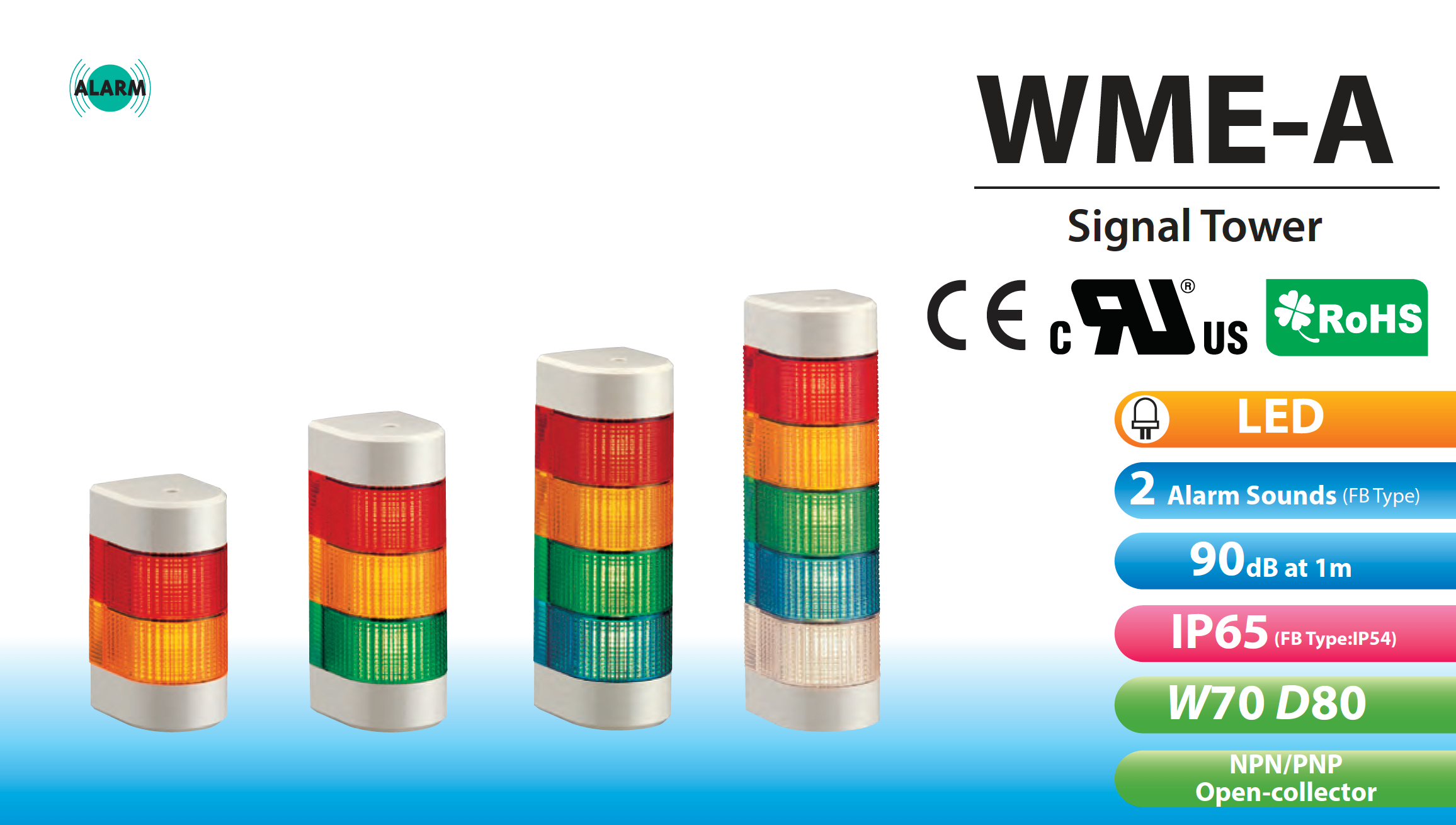

PATLITE SIGNALFX WME WME-A LED Signal Light Multi Colour Machine Status Indication

Save $545

LED Colour Layer: 2 - Red Yellow
Voltage: AC/DC 24V
Size: 82mm Diameter (Wall Mounted Half Circle)
Price:
$250 $795

Description

WME-A 80mm Profile LED Signal Light

Multi Status & Process Indication

The WME-A Wall-Mount Series solves your space problems! This LED-based model is designed for easy mounting to save you both time and money.

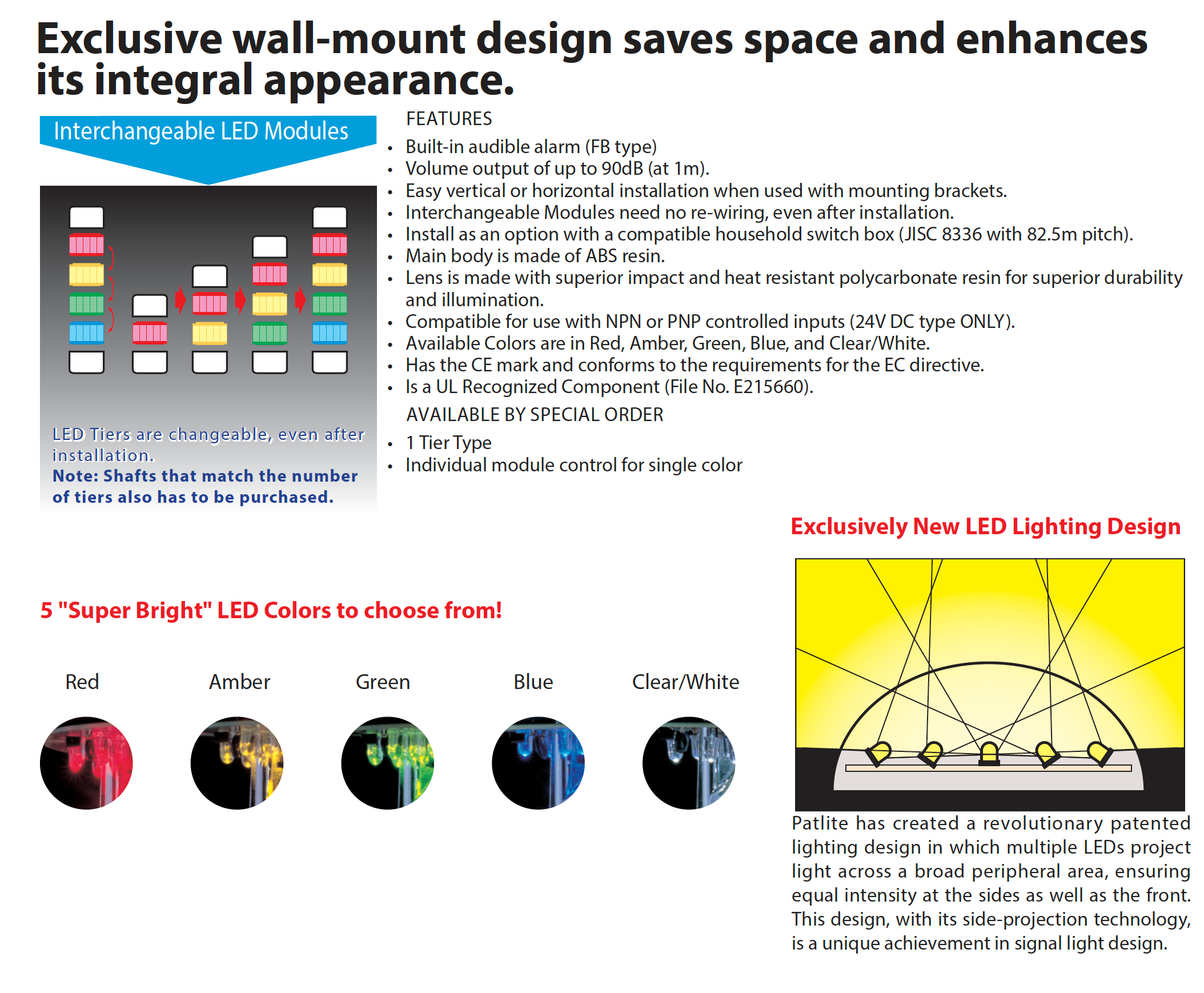

Product Features

· FB type: Built-in audible alarm up to 90dB at 1m .
· Installation: Easy vertical and horizontal installation with mounting bracket.
· Interchangeable Modules: No re-wiring even after installation.
· Mount option: Compatible with household switch box (JISC 8336 with 82.5m pitch).
· Main body: Made of ABS resin.
· Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
· NPN/PNP Compatible: 24V DC type ONLY.
· Available Colors: Red, Amber, Green, Blue, Clear/White.

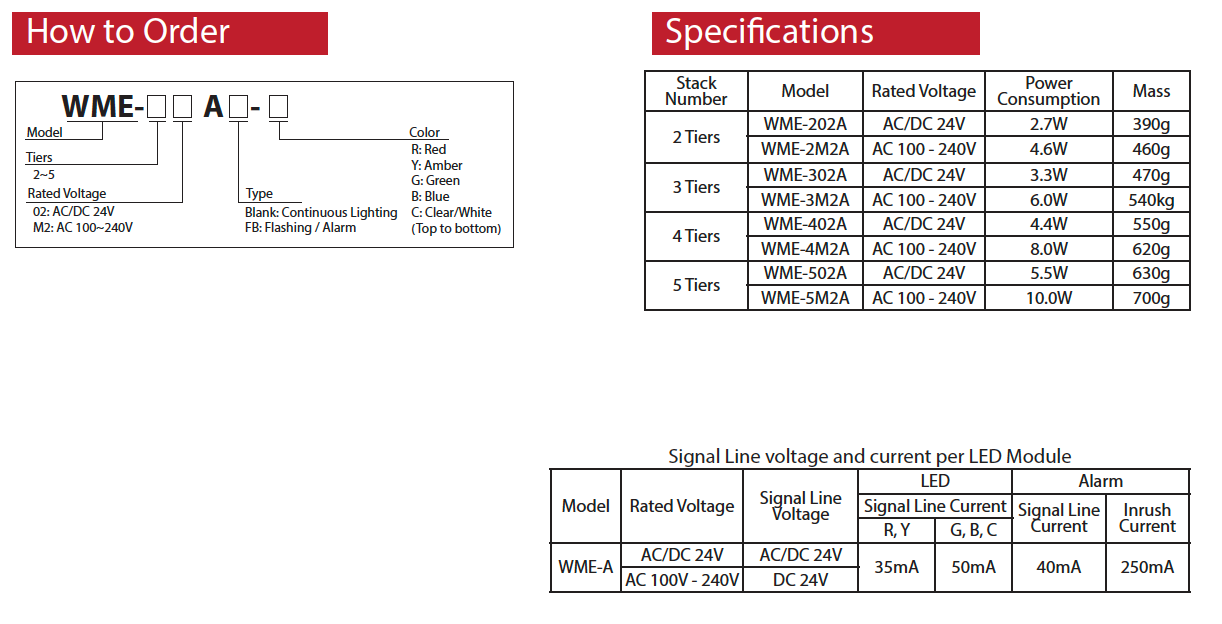

Model Specifications

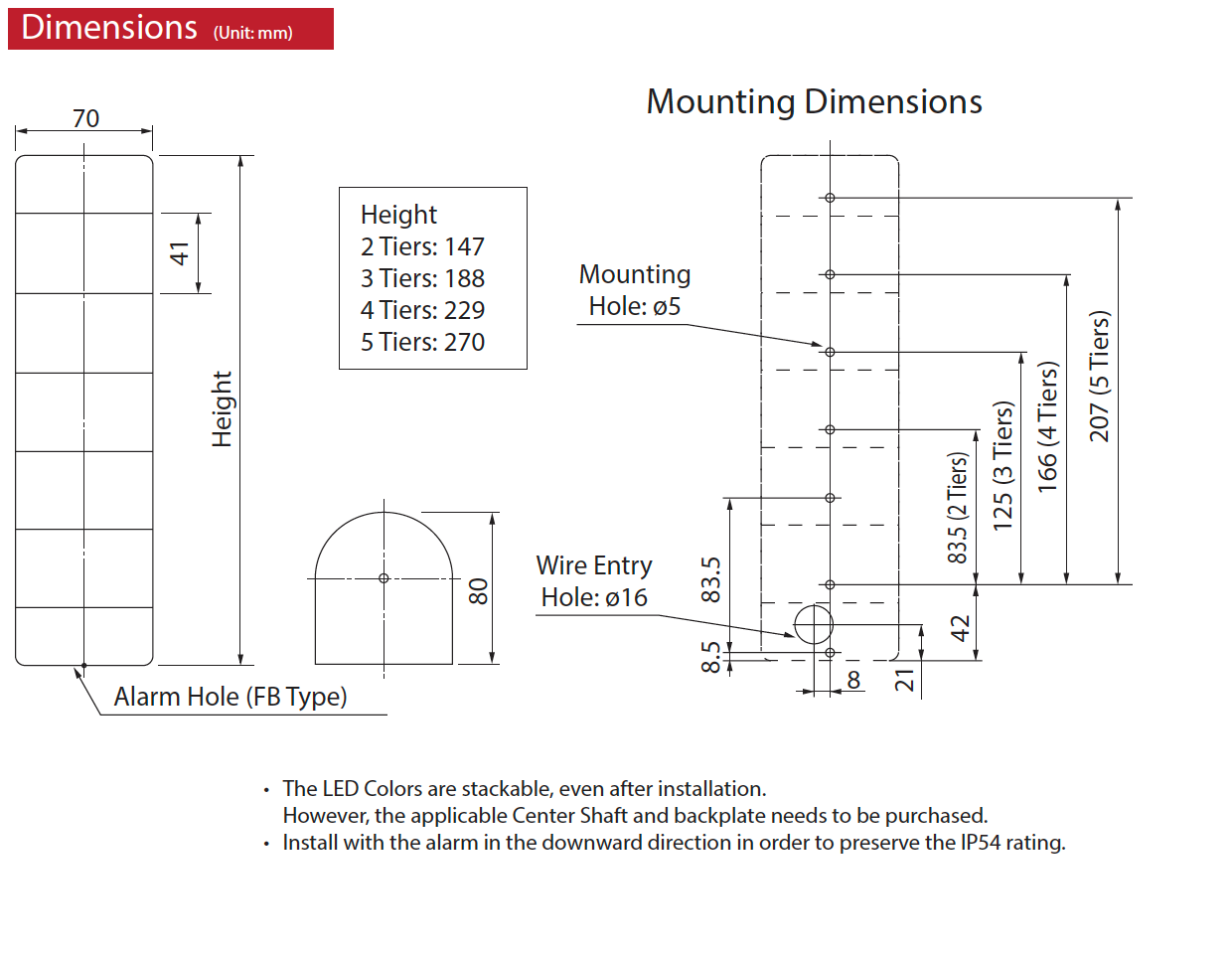

DIMENSIONS - 80mm profile
OPERATING VOLTAGES - 24V AC/DC
- 90V-250V AC
FUNCTIONS - Continuous Only
- Continuous, Flashing, Alarms
MOUNTING - pre-assembled, pre-wired
- Lenses are interchangeable
- not stackable after purchase
BODY STYLE - Wall mount only: includes mounting bracket
BODY COLOR - Body: Beige
STACKABLE TIERS - Available in 2, 3, 4 or 5 tier versions
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
AUDIBLE STYLE - One Alarm: selectable, alternating two-tone, 80dB (at 1m)
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
PROTECTION RATINGS - IP-65 ( For Special Order )
- IP-54 ( Normal )
