Description
Built to the Traditional PATLITE Japan Standard
Engineered and manufactured in Japan, the PATLITE SKP Series represents the robust industrial construction that helped establish PATLITE as a trusted name in visual warning and signalling equipment.
Unlike lightweight economy beacons built primarily around plastic components, the SKP Series features a heavy-duty metal casing, corrosion-resistant SUS304 stainless steel lens mounting fixture, precision gear-driven rotating mechanism and an impact-resistant polycarbonate dome.
These classic PATLITE warning lights can still be seen operating on machinery, manufacturing equipment, mobile plant and mining equipment after many years of industrial service. Their robust construction and stable mechanical rotation have earned the series a strong reputation among equipment operators, maintenance teams and machine builders.
The SKP Series is designed for customers who value proven industrial quality, dependable operation and long-term serviceability over the lower initial price of disposable plastic warning beacons.
Suitable for Indoor & Outdoor Use
Suitable for industrial installations both indoors and outdoors. Indoor mounting may be upright, inverted or sideways. For outdoor installations, the beacon must be mounted upright in accordance with the product installation requirements.
Choose the Correct Voltage
Industrial-Grade Construction
Japanese Industrial Engineering
Engineered and manufactured in Japan to the classic PATLITE standard for dependable industrial operation.
Heavy-Duty Metal Casing
Strong metal construction provides a substantial industrial housing that is far more robust than lightweight plastic economy beacons.
Stable Gear-Driven Rotation
Precision gear-driven rotary mechanism provides stable warning-light rotation under vibration and machinery movement.
Impact-Resistant Dome
High-grade polycarbonate dome offers excellent impact and heat resistance for demanding industrial conditions.
Corrosion-Resistant Hardware
SUS304 stainless steel lens mounting hardware supports dependable service in industrial and outdoor installations.
Long-Term Industrial Reliability
A proven beacon design that can still be seen operating on machinery and industrial equipment after many years of service.
Industrial Applications

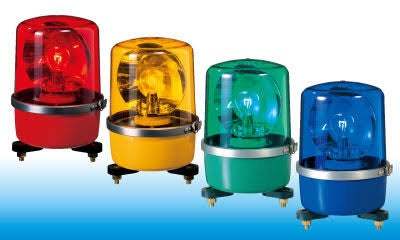

Available Lens Colours

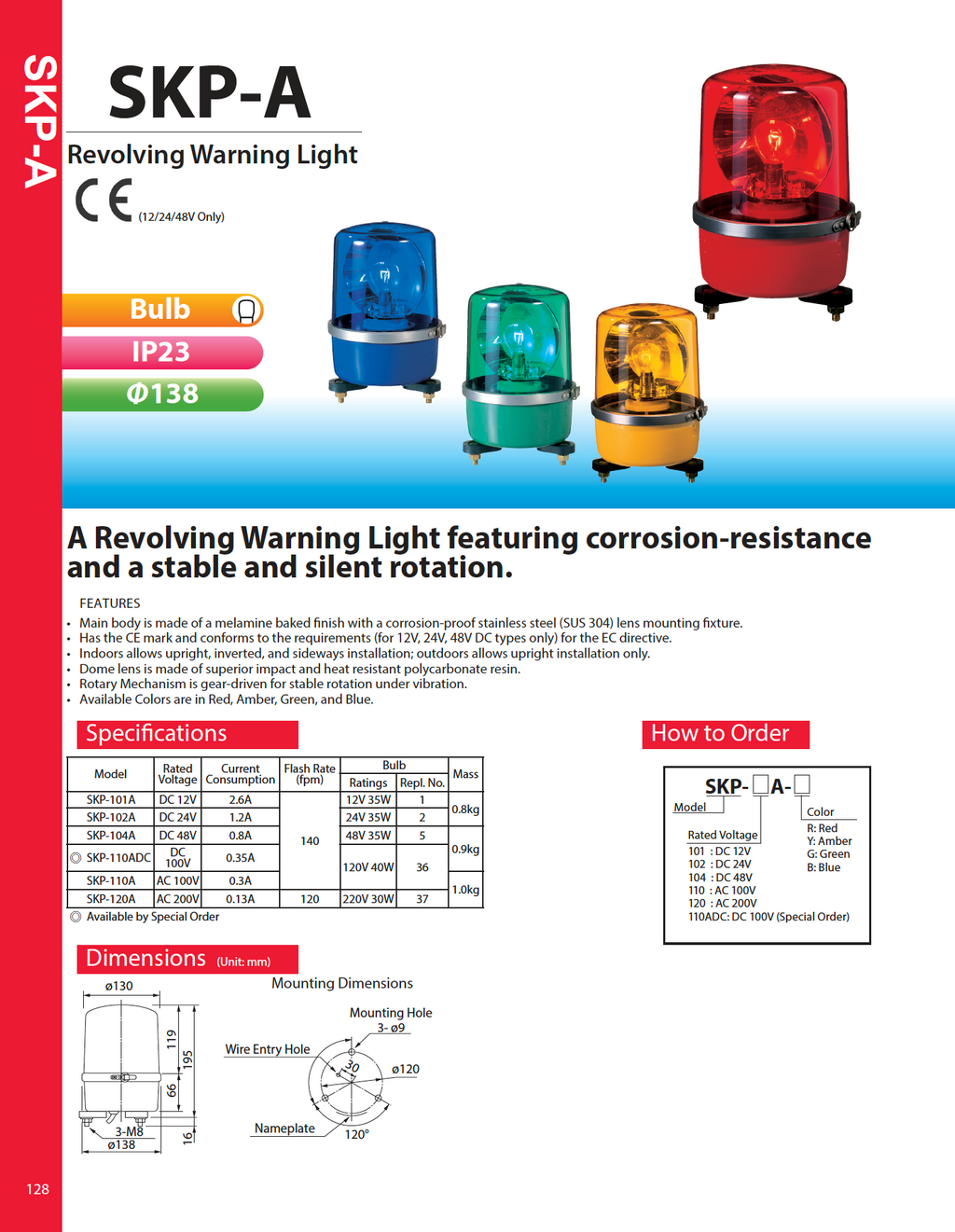

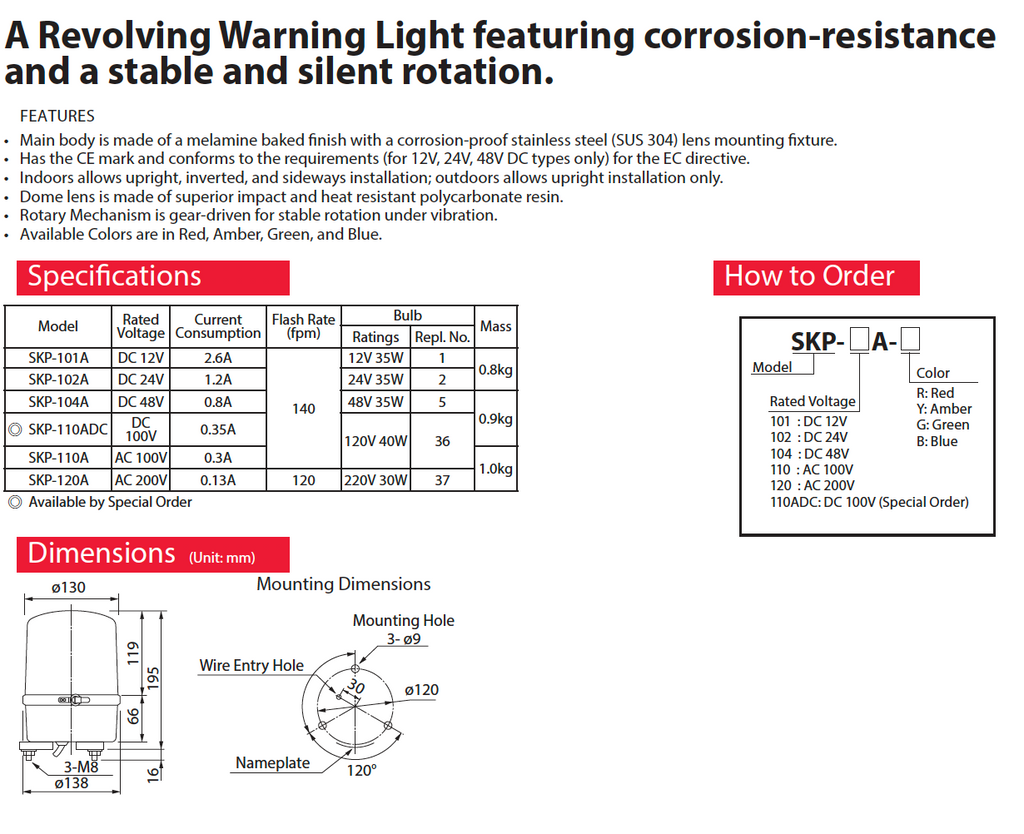

Engineering Specifications
| Specification | SKP-101A | SKP-102A |
|---|---|---|
| Rated Voltage | 12V DC | 24V DC |
| Current Consumption | 2.6A | 1.2A |
| Light Source | 12V 35W bulb | 24V 35W bulb |
| Beacon Diameter | 138mm | |
| Rotation Rate | Approximately 140 rpm | |
| Signal Function | Motor-driven rotating visual warning signal | |
| Construction | Heavy-duty metal casing with SUS304 stainless steel lens mounting fixture | |
| Dome Material | Impact-resistant and heat-resistant polycarbonate resin | |
| Mounting | Direct surface mount | |
| Indoor Installation | Upright, inverted or sideways | |
| Outdoor Installation | Upright installation only | |
| Available Colours | Red, Amber, Green or Blue | |
| Protection Rating | IP Rated | |
Available Model Numbers
Optional Accessories
Wall Mount Bracket
Optional wall mounting bracket for compatible PATLITE warning-light installations.
Wall Mount Bracket
Optional mounting solution for compatible PATLITE beacon installations.
PATLITE SKP-101A & SKP-102A Australia, Japan and Worldwide
PATLITE SKP-101A 12V DC and SKP-102A 24V DC industrial rotating beacons are suitable for machinery warning systems, manufacturing equipment, construction machinery, industrial vehicles, mobile plant, mining equipment and indoor or outdoor safety signalling applications. Available in SKP-101A-R, SKP-101A-Y, SKP-101A-G, SKP-101A-B, SKP-102A-R, SKP-102A-Y, SKP-102A-G and SKP-102A-B configurations for customers in Australia, Japan, New Zealand and international markets.
