· Newly Developed Triple-reflection System: For enhanced visibility and low power consumption.
· Flashing Cycles: 3 patterns —60/120/180 fpm, selectable by a switch.
· Maintenance-free: LED’s power consumption is approx. half of incandescent bulb type (100V/200V AC).
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only.
· Dome: Superior weather resistant and light translucent acrylic resin.
· IP55 (with optional rubber gasket SZ-210, IP23 without SZ-210).
· CE Compliance: 24V AC/DC type ONLY.

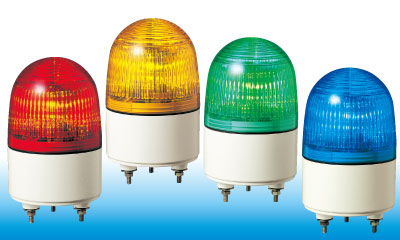

· Available Colors: Red, Amber, Green, Blue

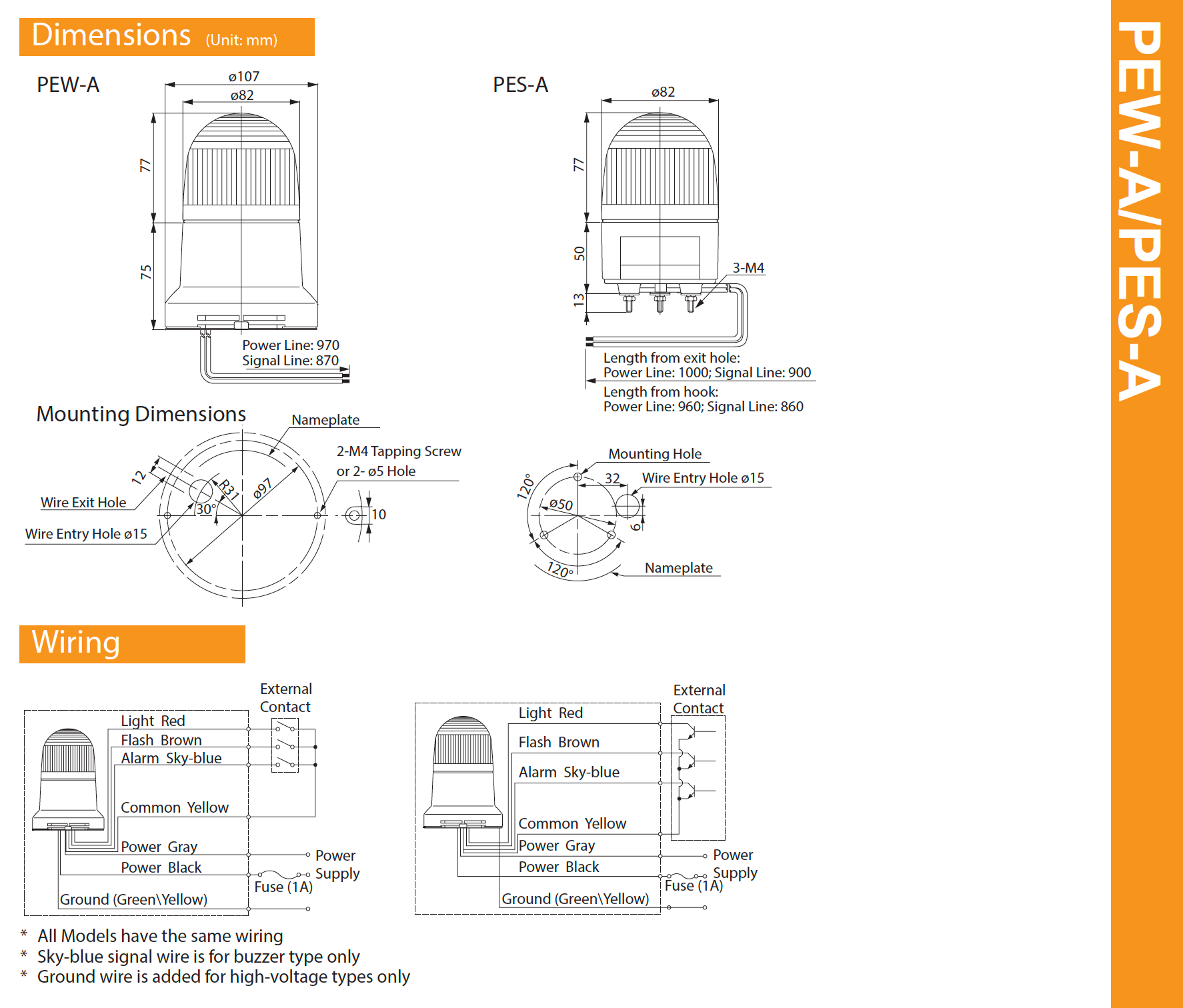

SIZE | - 82mm diameter |
---|---|

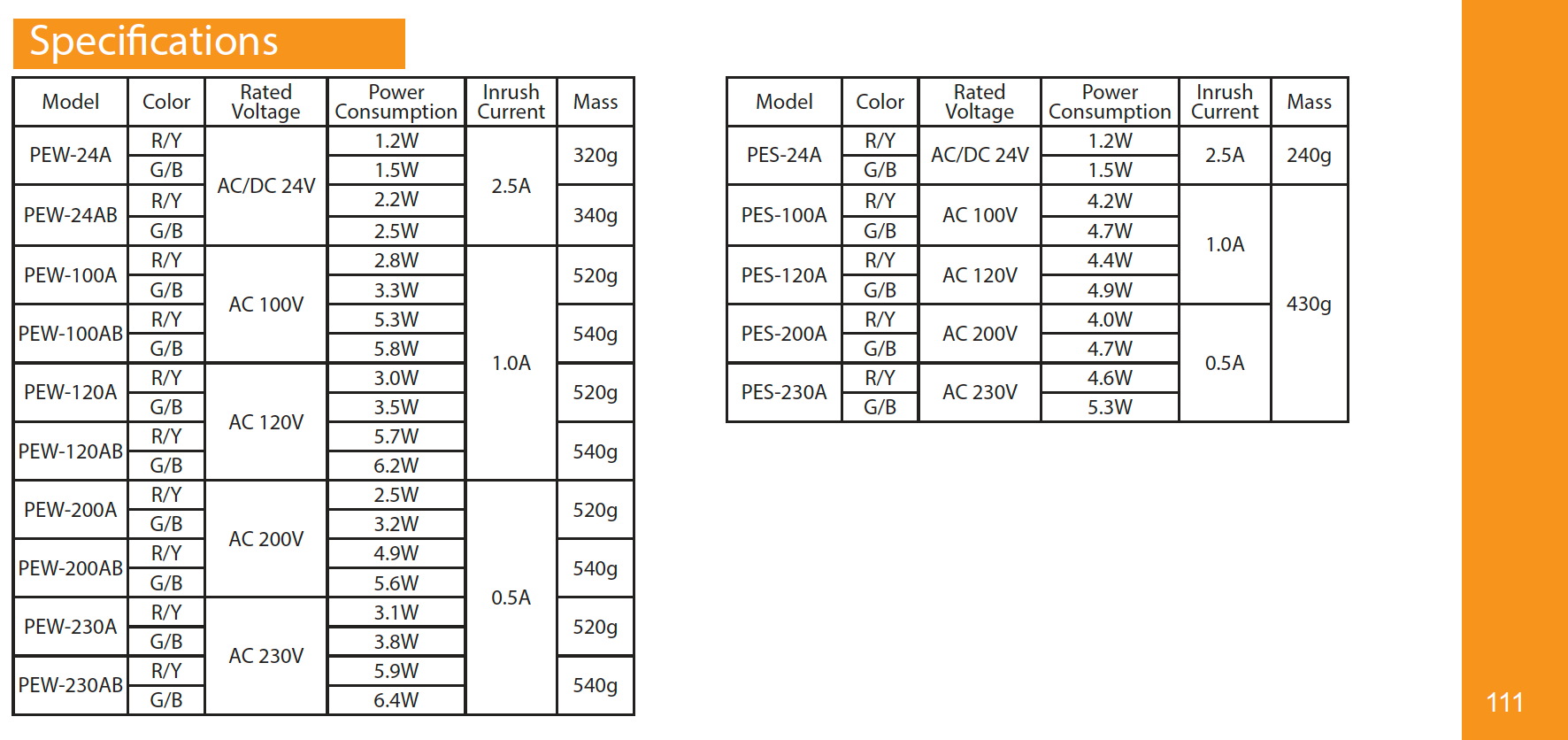

OPERATING VOLTAGES | - 24V DC - 100V AC - 120V AC - 200V AC - 230V AC |
FUNCTIONS | - Continuous - Flashing - Three selectable flash rates |
MOUNTING | - Direct mount - Indoor only (upright, upside down, horizontal) |
BODY STYLE | - Round Base - Round Top, colored Dome - pre-assembled for LED Color specified, pre-wired - Optional SZ-210 gasket to increase the IP Rating |
BODY COLOR | - Body: Beige |
LIGHT SOURCE | - Light source: LED - LED Colors: Red / Amber / Green / Blue - Dome Colors: Corresponding to LED Color |
GLOBE MATERIAL | - Acrylic Resin |
CONFORMITY STANDARDS | - CE - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS |
PROTECTION RATINGS | - without SZ-210 gasket: IP-23 - with SZ-210 gasket: IP-54 |
OPTIONS | - SZ-210 |
