Description
-

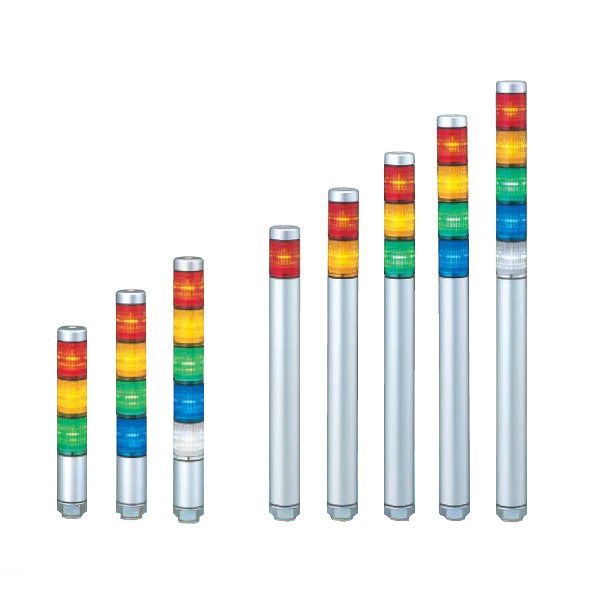

MPS 30mm Diameter LED Signal Tower Lights
- The MPS is a slim LED Signal Tower with a silver-colored body and compact design at 30mm (1-1/4-inch) diameter and a short body length of 45mm.
- The MES Series are direct mounted super slim lights with rust free aluminum bodies. LED module lenses are clear and turn colour when activated.

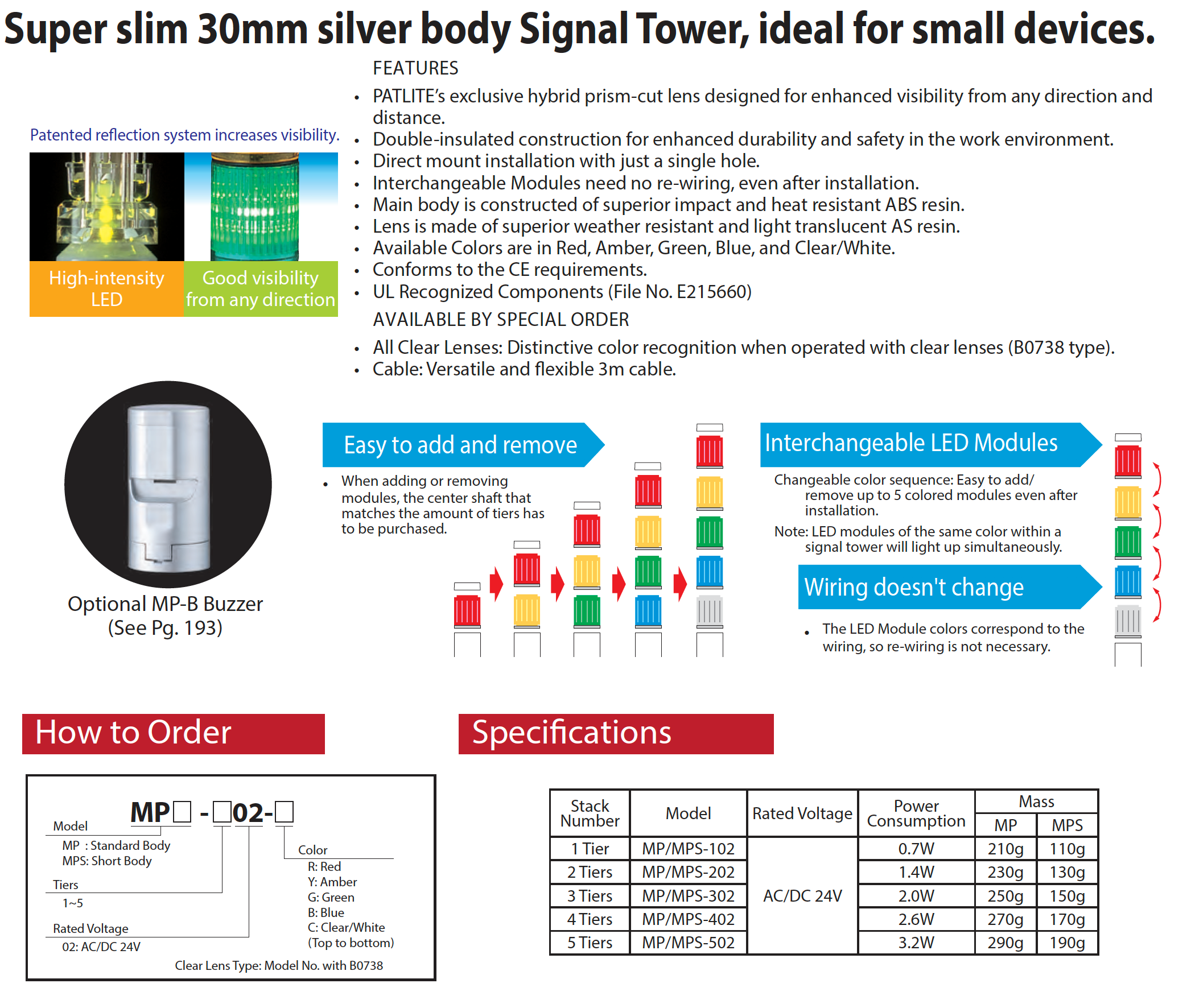

Product Features
· PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.
· Double Insulation: For enhanced durability and safety in the work environment.
· Installation: Direct mount with a single hole.
· Interchangeable LED module: No re-wiring even after installation.
· Main Body: Superior impact and heat resistant ABS resin.
· Lens: Superior weather resistant and light translucent AS resin.
· Available Colors: Red, Amber, Green, Blue, Clear/White.

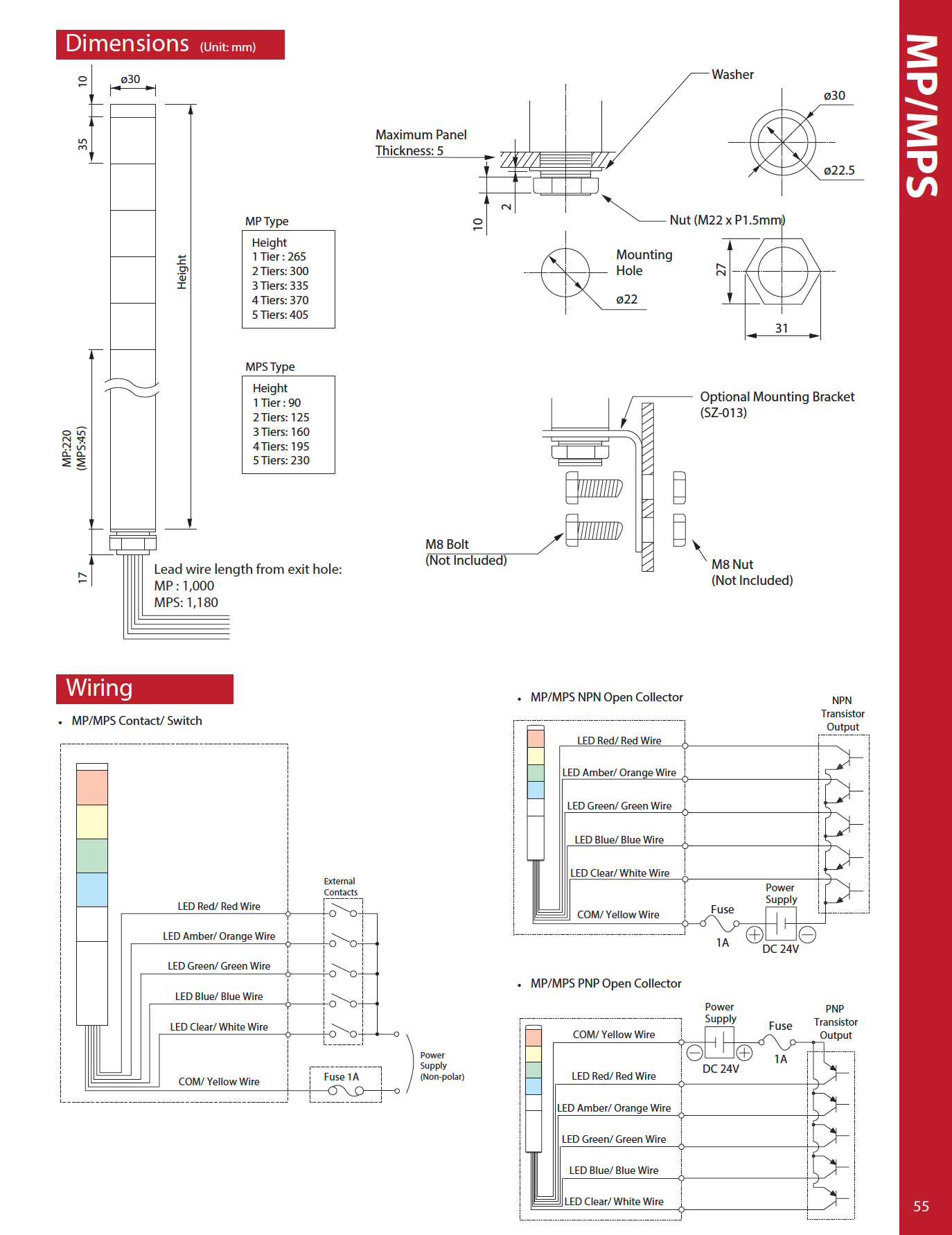

Model Specifications
| DIMENSIONS | - 30mm diameter |
|---|---|
| OPERATING VOLTAGES | - 24V AC/DC |
| FUNCTIONS | - Continuous Only - Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN or PNP) for DC24V - Direct voltage control |
| MOUNTING | - Direct mount only: includes M22 mounting nut and sealing gasket |
| BODY STYLE | - Pre-assembled, pre-wired - Interchangeable and stackable module after purchase |
| BODY COLOR | - Body: Silver |
| STACKABLE TIERS | - Up to 5 modules can be stacked |
| MODULE COLORS | - Red - Amber - Green - Blue - Clear/White |
| CONFORMITY STANDARDS | - CE Marking - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS |
| PROTECTION RATINGS | - IP-65 |
