LR7 LED Signal Tower Light Series

70mm Diameter

Our next generation signal tower line featuring cutting-edge technology, modular segments for field configuration, and a wide-array of options to fit the most challenging applications.



Products Overview  Product Categories

Product Features

    • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
    • Re-engineered, completely enclosed sound module, maintaining substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12C: 80, LR4 & LR5: 85, LR6: 88, LR7: 90dB at 1m)
    • A modular, “Twist and Lock”, system to easily customize and reconfigure LED and sound modules. (Field configurable)
    • A sleek, smooth form factor and an enhanced body construction for performance in harsh environments. (IP65 protection rating)
    • Rated voltage: DC24V
    • Standard body color: Off-white. Silver and black bodies available as components only
    • Body unit with terminal block available as a component in off-white, silver, or black (LR7-WT & LR7-KT)

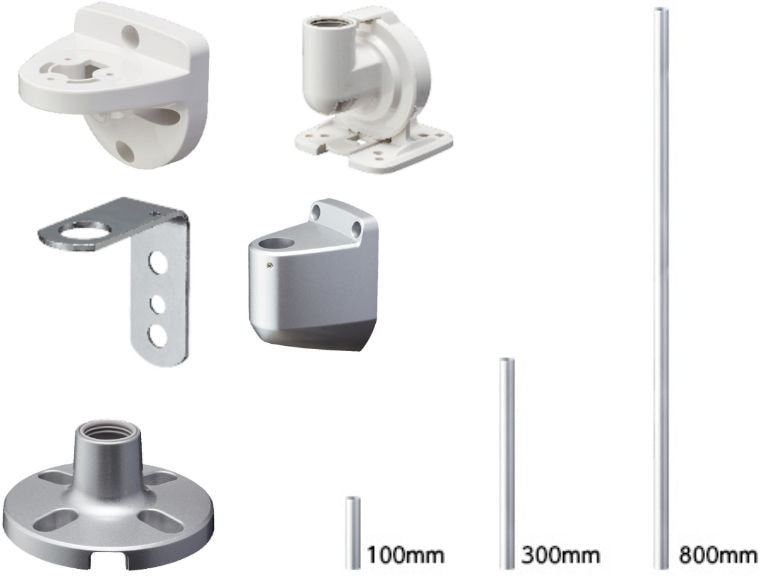

    • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only)
LR_LR7_LED-Signal_Tower_Light_Lights_Machine_Patlite_Signalfx_Australia_New_zealand_taiwan_Signapore_Thailand

Specifications

Operating Ambient Temperature -20℃ - +50℃
Operating Humidity Range 90% RH or less, no condensation
Storage Temperature Range -30℃ - +60℃
Storage Humidity Range 90% RH or less, no condensation
Mounting Location Indoor Use
Mounting Direction Upright Position
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions Upright Position
Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate 60 ±2 Flashes / min
Sound Level LR6Typ. 88dB
Sound Reduction*2 ab. -10dB reduction
Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
Buzzer Sound 4 patterns*2No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
Transistor Output NPN / PNP
Conformity Standards ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN 50581)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3

*1: LJ Type is IP54   *2: Dependent on DIP Switch Settings   *3: Except KT and M2 LJ Type   *4: M2 Type Only (Except LJ Type)


LED Unit Specifications

Color Red Amber Green Blue White
Current Consumption / Power Consumption Typ. 0.04A/1W
Max. 0.045A/1.3W
Conformity Standards ●UL 508, CSA-C22.2 No.14
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●RoHS Directive (EN 50581)


Buzzer Unit Specifications

Current Consumption / Power Consumption Typ. 0.04A/1W
Max. 0.3A/1.3W
Conformity Standards ●UL 508, CSA-C22.2 No.14
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN 50581)

Movie




Accessories



Patlite SZK-004W Australia New_zealand Thailand Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation

SZK-004W
Wall-mount Bracket

Patlite SZW-001W Australia New_zealand Thailand Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation

SZW-001W
Circular Bracket

 Patlite SZK-003W SZK-003U SZK-003K Australia New Zealand Thailand UK Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation

SZK-003W/U/K
Wall-mount Bracket

Patlite SZP-001W Australia New Zealand Thailand UK Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation
SZQ-001W
Angle Bracket

Patlite SZP-003W SZP-003U SZP-003K Australia New Zealand Thailand UK Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation
SZP-003W/U/K
Circular Bracket

Patlite SZL-001 Australia New Zealand Thailand UK Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation
SZL-001
L-Bracket

Patlite SZP-001W Australia New Zealand Thailand UK Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation
SZP-001W
Circular Multi-pitch Bracket

Patlite SZK-001U Australia New Zealand Thailand UK Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation
SZK-001U
Wall-mount Bracket

Patlite SZK-002U Australia New Zealand Thailand UK Taiwan Wall Mount Bracket SignalFx Signal JTEC Corporation
SZP-002U
Circular Bracket

Patlite POLE22-N Signalfx Australia New Zealand Thailand UK Taiwan Wall Mount Bracket Signal JTEC Corporation
POLE22-N
Pole

Patlite POLE22-T Signalfx Australia New Zealand Thailand UK Taiwan Wall Mount Bracket Signal JTEC Corporation
POLE22-T
Pole

Patlite SZP-091U Signalfx Australia New Zealand Thailand UK Taiwan Wall Mount Bracket Signal JTEC Corporation
SZP-091U
NPT Bracket

Patlite SZW-970U Signalfx Australia New Zealand Thailand UK Taiwan Wall Mount Bracket Signal JTEC Corporation
SZW-970U
Compatible Direct Mount Bracket
