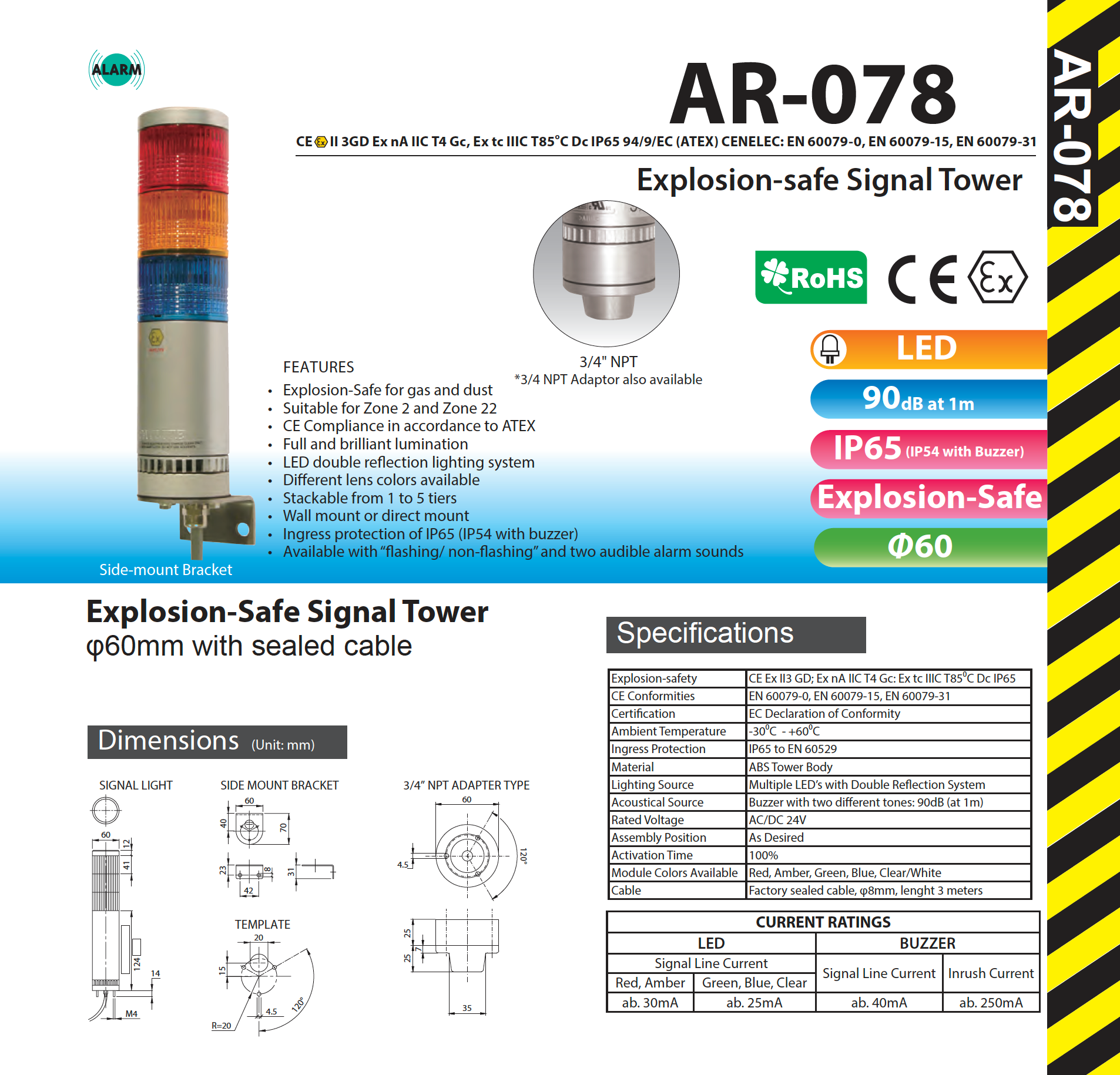

Description
- Explosion-safe Signal Tower Ø 60mm with sealed cable is suitable for Zone 2 and Zone 22, and is CE compliant in accordance to the ATEX directives.
Product Features
Explosion-safety : CE Ex II 3 GD; Ex nA II T4; Ex tD A22 IP65 T85℃
Standards : CE compliance in accordance to ATEX.
Zone classification : Suitable for Zone 2 and Zone 22
Light Source: Full and brilliant illumination, LED double reflection lighting system.
Cable : Factory sealed cable, Ф8mm, length of 3 meters
Mounting: Wall mount or direct mount.
Protection : IP65 (IP54 with buzzer)

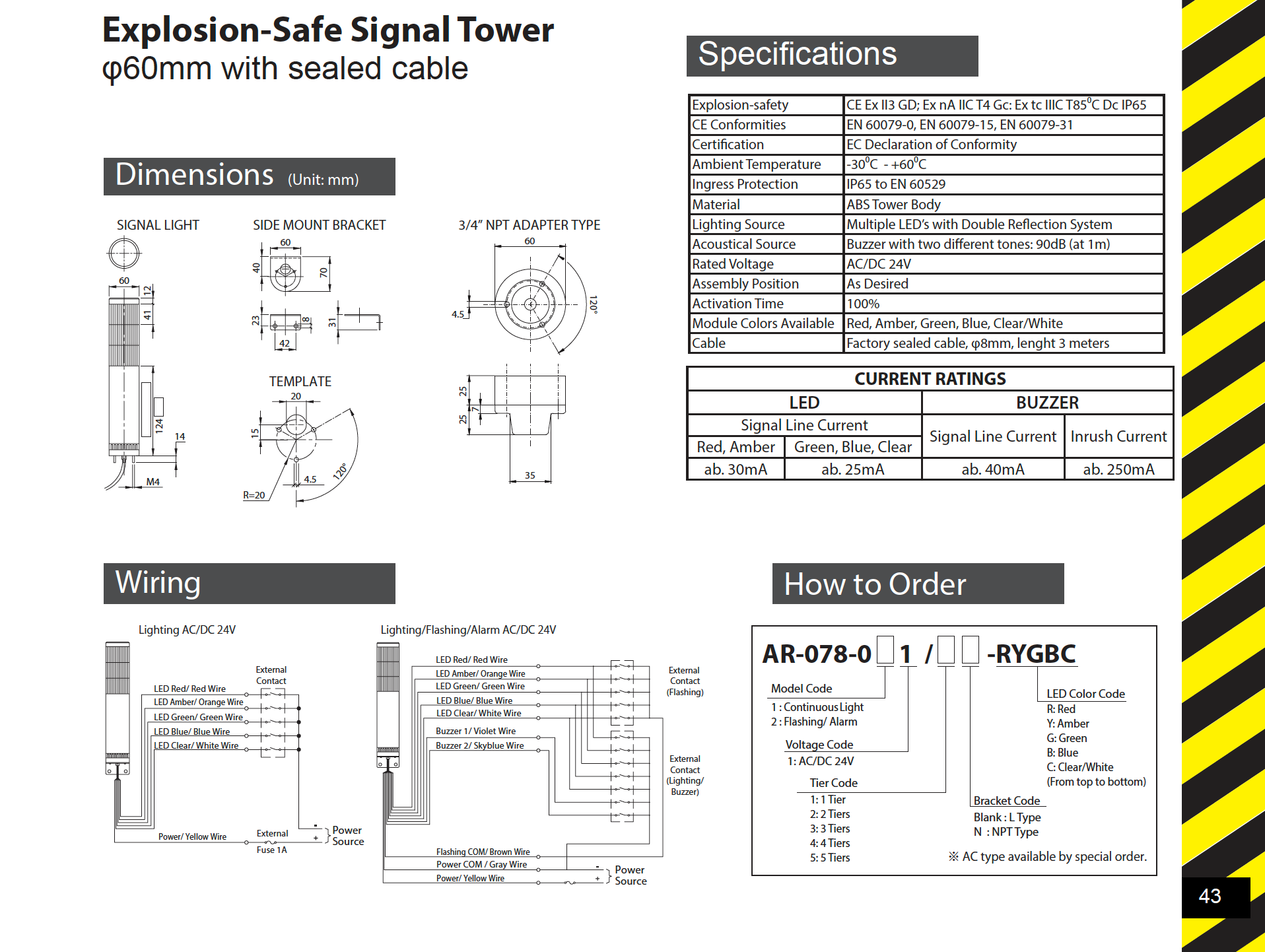

Model Specifications
| DIMENSIONS | - 60mm diameter |
|---|---|
| OPERATING VOLTAGES | - 24V AC/DC |
| FUNCTIONS | - Continuous Only - Continuous, Flashing, 2 Audible Alarms - Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN or PNP for DC24V) - Direct voltage control for DC24V, continuous and Alarm functions only |
| MOUNTING | - Wall Mount - Direct Mount |
| BODY STYLE | - Pre-assembled, pre-wired - Factory sealed cable, 8mm, length; 3 meters |
| BODY COLOR | - Body: Silver |
| STACKABLE TIERS | - Up to 5 modules can be stacked |
| MODULE COLORS | - Red - Amber - Green - Blue - Clear |
| AUDIBLE STYLE | - Alarm 1: selectable, single-tone, intermittent (fast beep) alarm, 85dB (at 1m) - Alarm 2: selectable, single tone, intermittent (slow beep) alarm, 85dB (at 1m) |
| CONFORMITY STANDARDS | - CE - 94/9/EG (ATEX) and 89/336 (EMC) - RoHS |
| PROTECTION RATINGS | - IP-65 - IP-54 (with buzzer) |
