NEW PATLITE LA6 LA6-3DTNUN LED Signal Tower Stack Light Programmable 11 Buzzer Tones

Save $245.00

Mounting: Direct Mount - 3 Bolt (Optional Side Mmount)
Wiring Connection: Cable
Body Colour: Silver
Price:
Sale price$350.00 AUD Regular price$595.00 AUD

Description

NEW PATLITE LA6 LA6-3DWJUN LED Signal Tower Stack Light Programmable Indication.

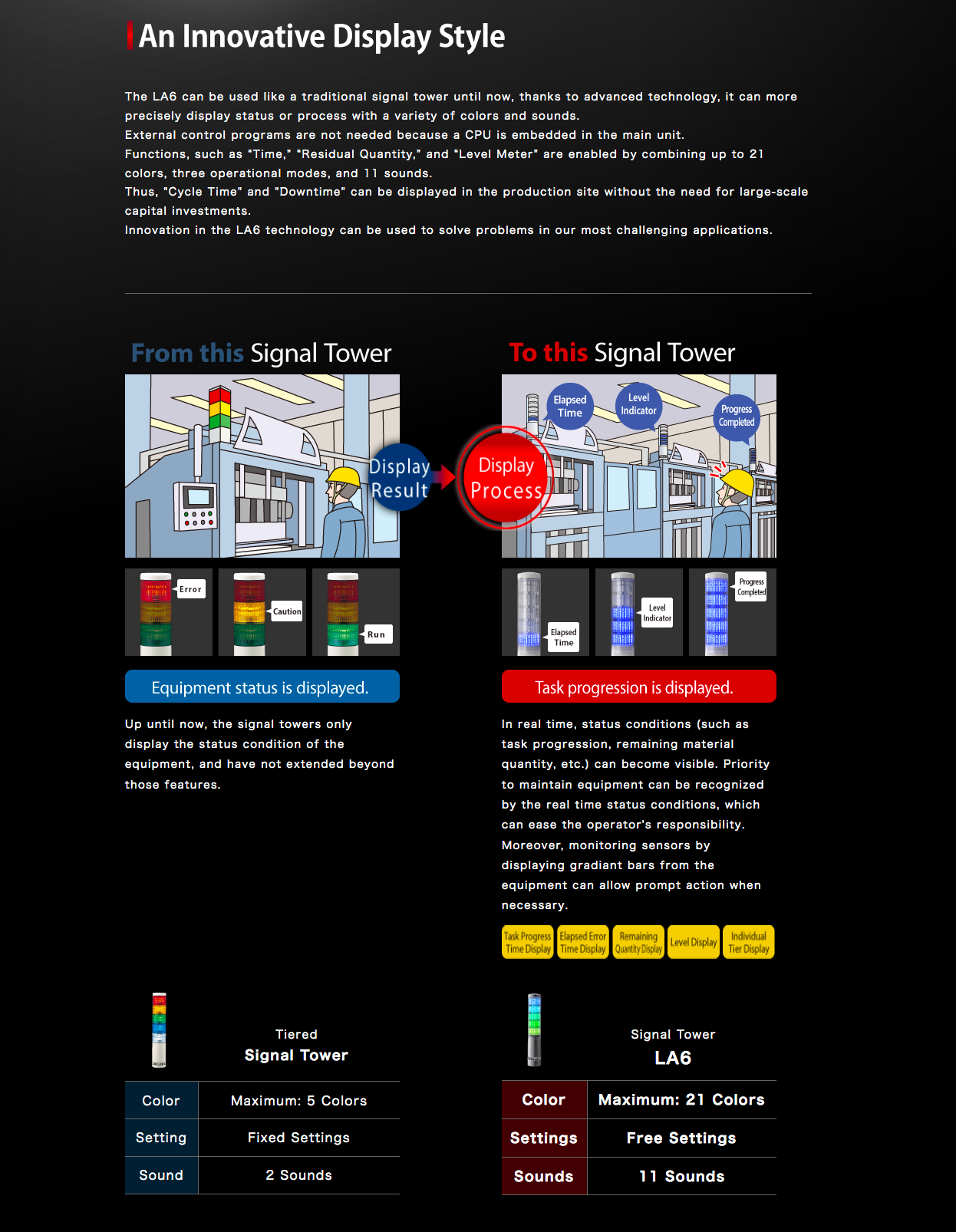

PATLITE’s innovation introduces the new LA6 multi-information Signal Tower, which can be easily manipulated to display various colors and combination of colors in various ways in order to communicate endless applications of “visual information”

LA6 Programmable LED Signal Tower Light

PATLITE’s innovation introduces the new LA6 multi-information Signal Tower, which can be easily manipulated to display various colors and combination of colors in various ways in order to communicate endless applications of “visual information” in a manner that is intuitive and easy to understand.

Product Features

• Freely set-up multiple colors to indicate abnormal conditions with a variety of color patterns.
• Program "Operating Modes" to enhance visual status conditions.
• Download complimentary simple and easy programming software to easily control display conditions for customized scenarios

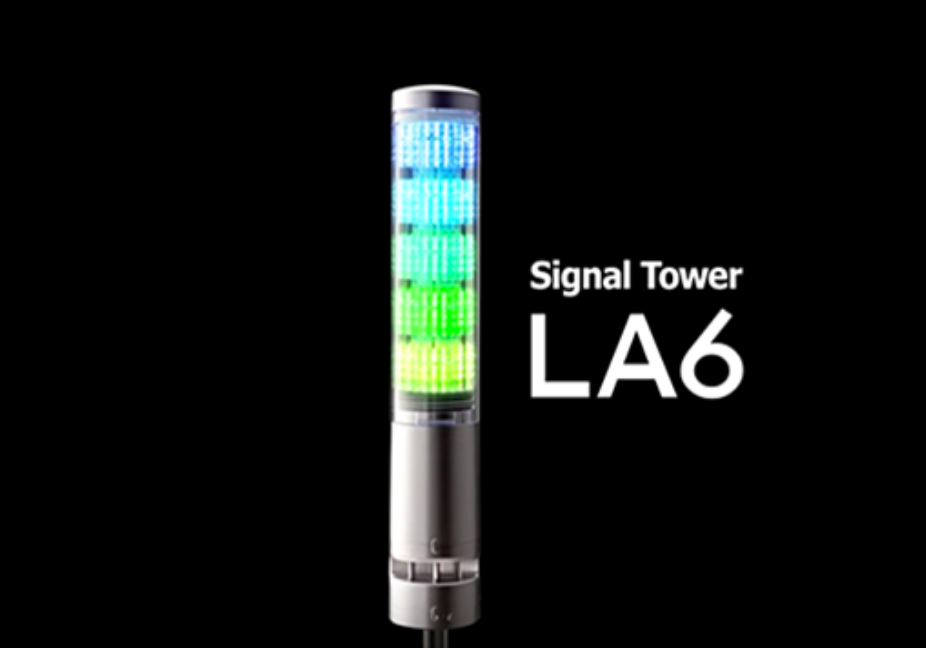

Movie

To download free software from our Exclusive LA6 Webpage, click here!

Model Specifications

DIMENSIONS - 60mm Diameter
OPERATING VOLTAGES - 24V DC
- 100V - 240V AC (WJ Type Only)
FUNCTIONS Operates in three different display modes:

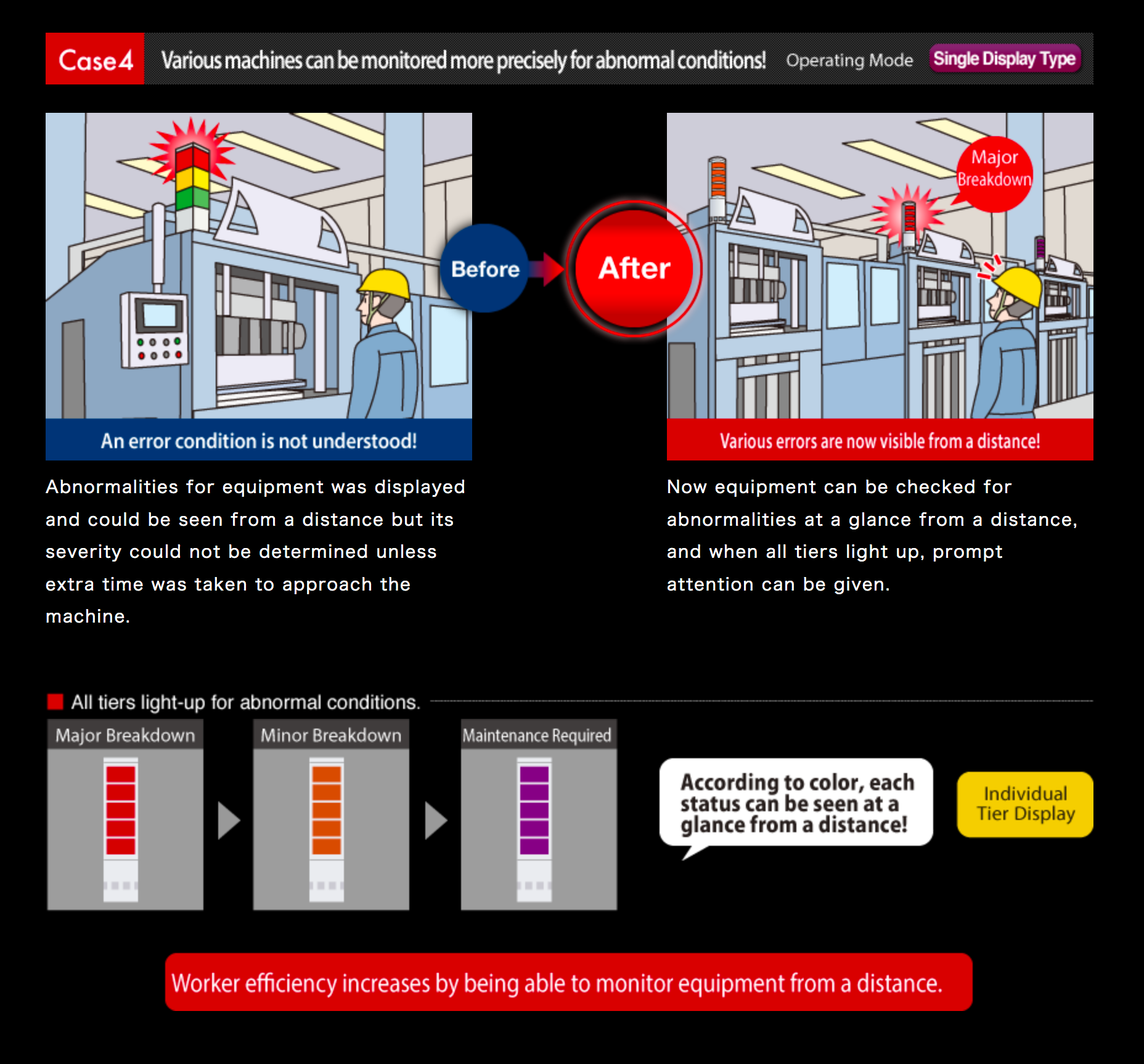

- Single Display

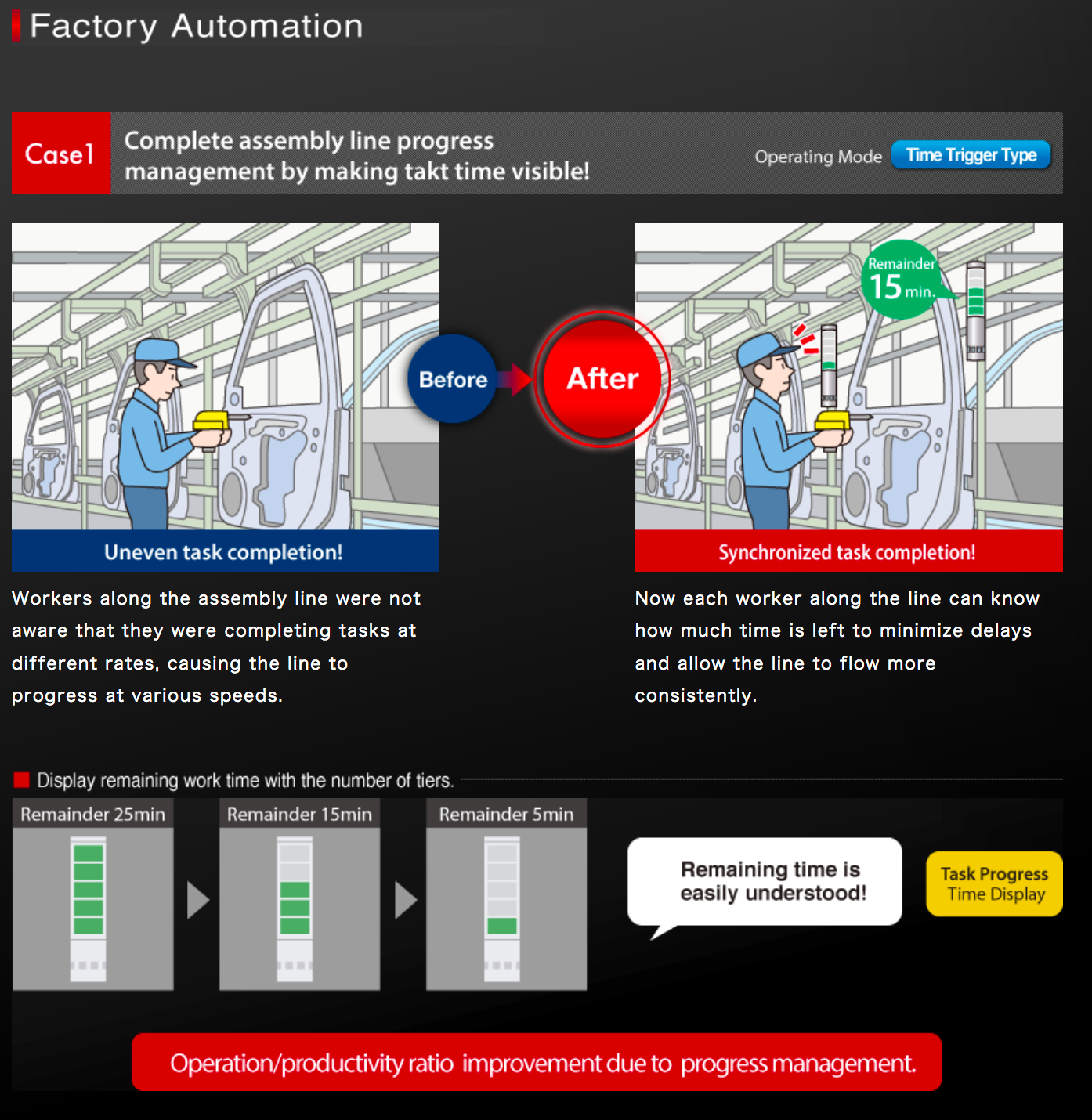

- Time-trigger Display

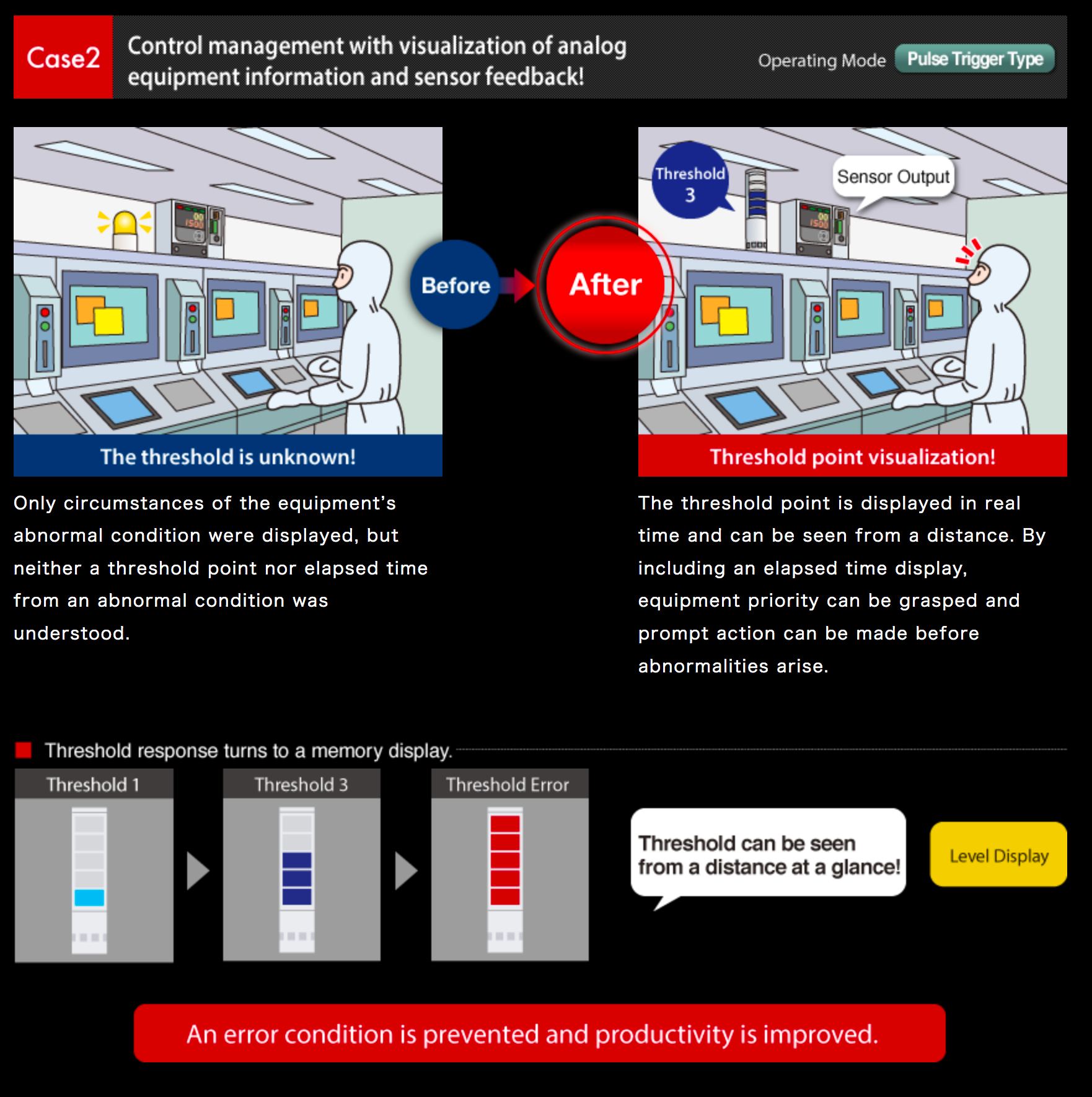

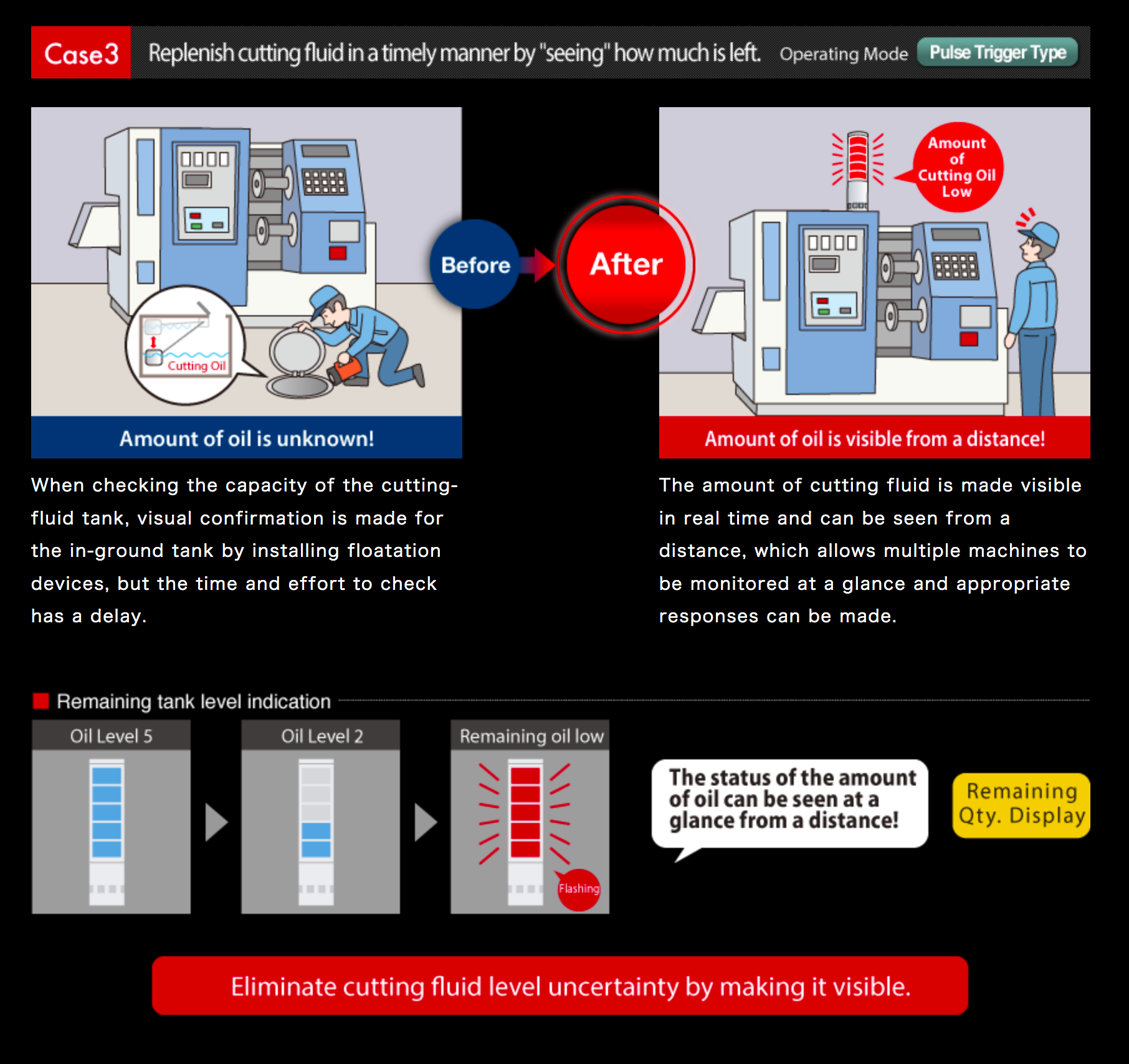

- Pulse-trigger Display
MOUNTING - Direct Mounting (TN, WJ Type)
- Steel Pole Mounting (LJ Type)
BODY STYLE - TN : Screwless Terminal
- LJ : Pole with Cable Connection
- WJ : Direct Mount with Cable Connection
BODY COLOR - Off-white
- Silver

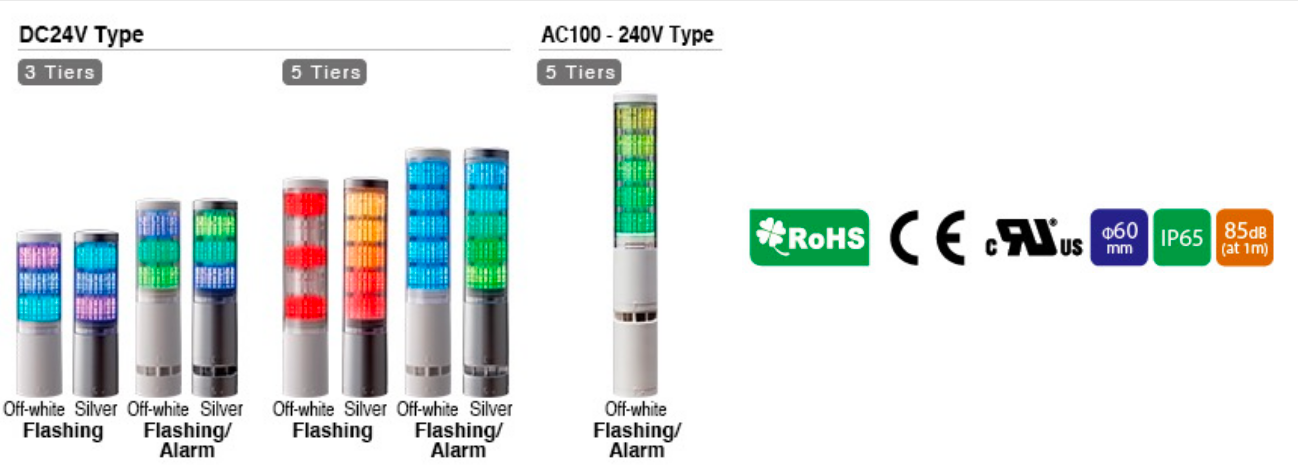

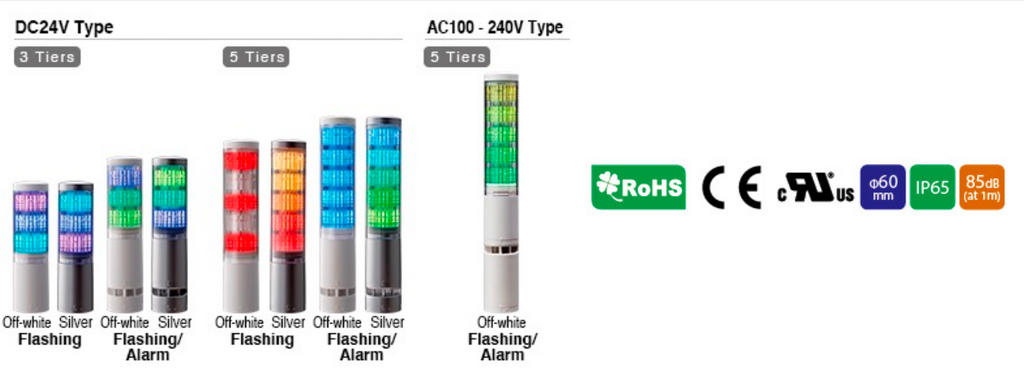

STACKABLE TIERS - 3 Tier
- 5 Tier
MODULE COLORS Total of 4,960 possible colors

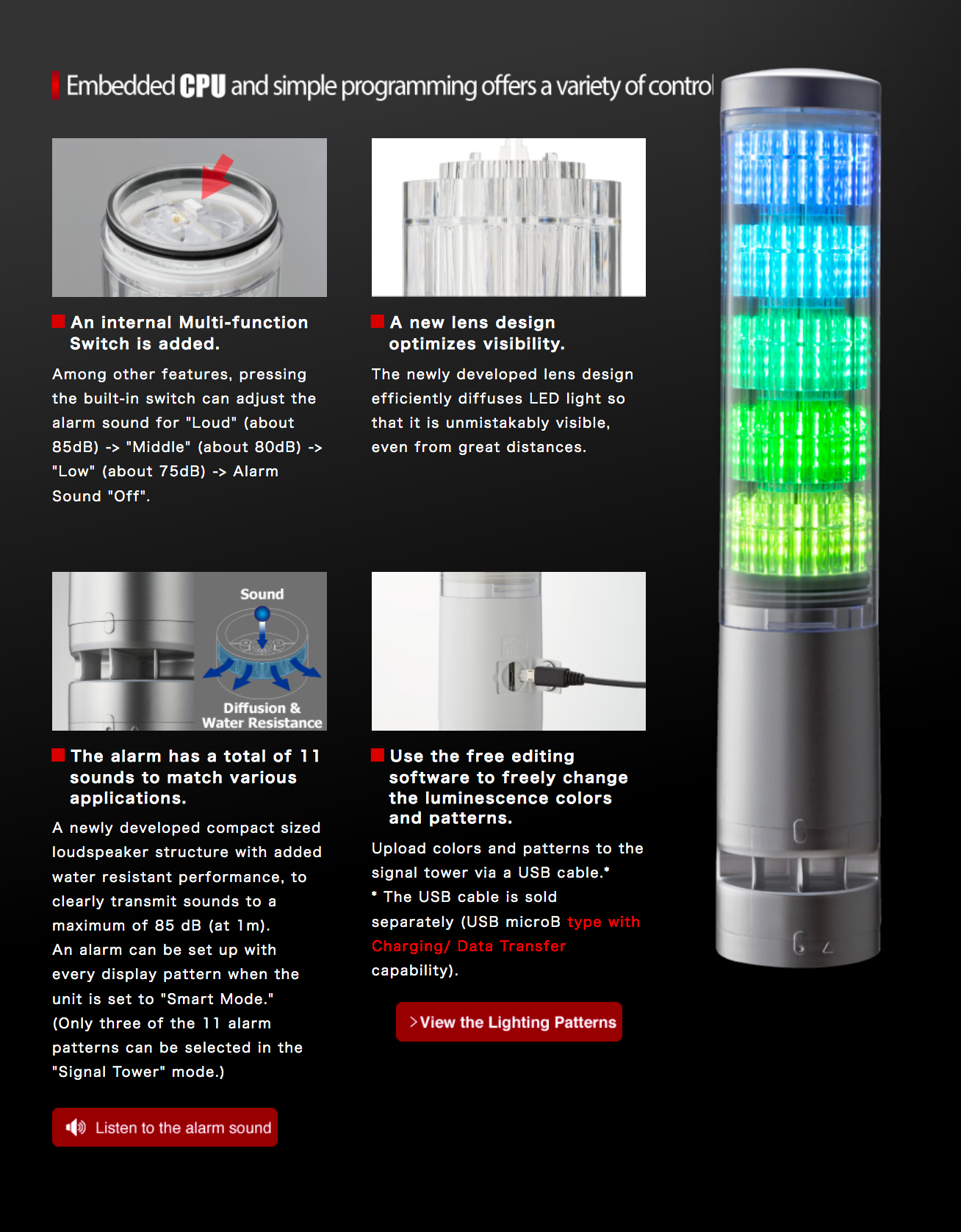

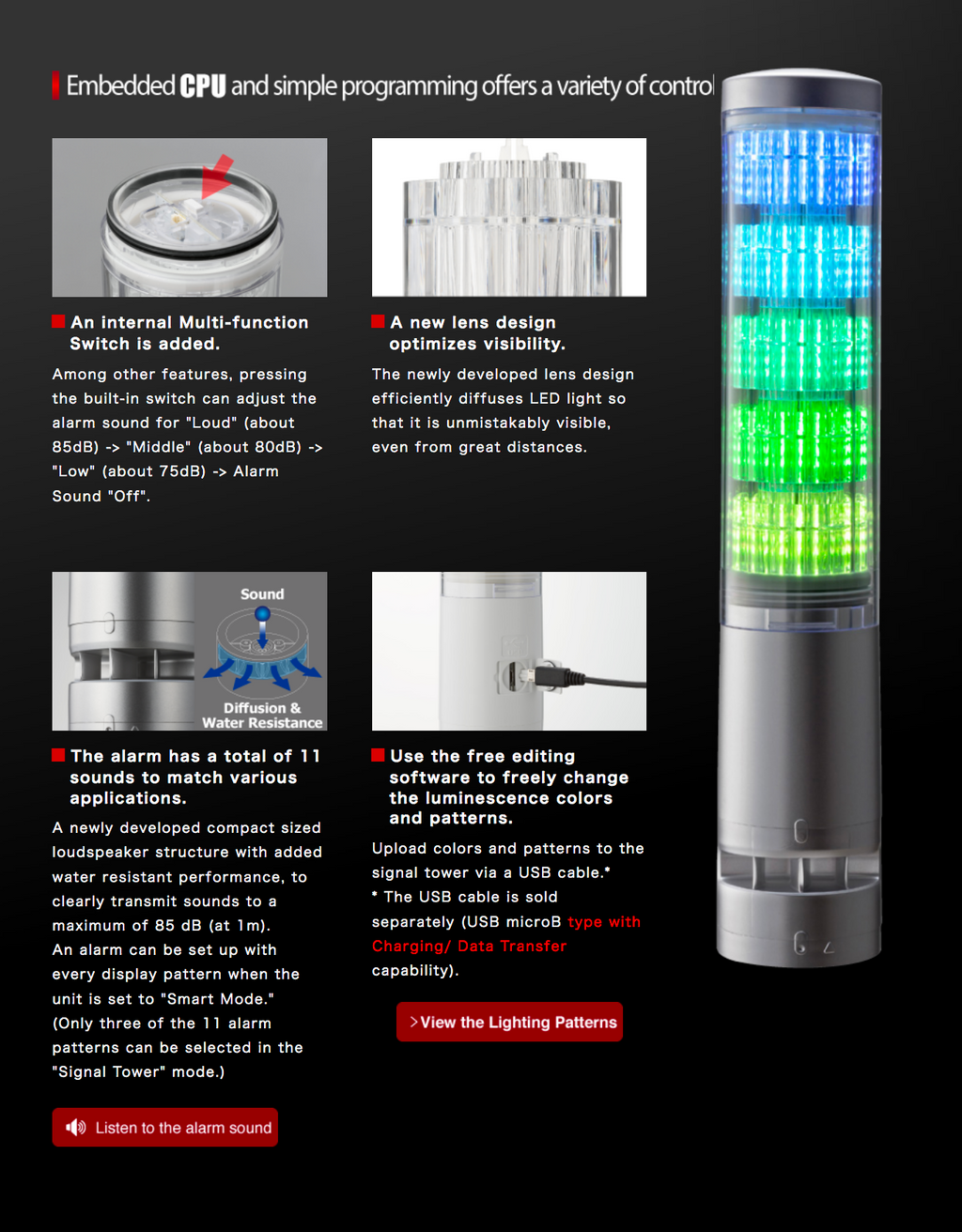

AUDIBLE STYLE 11 alarm sounds available
CONFORMITY STANDARDS - EMC Directive
- RoHS Conformity
- UL 508
- FCC
- KC
- CE
PROTECTION RATINGS - IP 65
- IP54 with Alarm
REMARKS - Free downloadable application software
- UL Recognized Components (24V type only)
