Description
CLN-EX Explosion-safe LED Work Light
The newly-designed LED Work Light model CLN for Explosion-safe applications. With a thickness of 22.2mm, a brightness of 820lx, IP ratings of 66G/67G, 69K, LED Colors of Daylight (6500K) and mounting flexibility with a flexible angle adjustment of 180 degrees, and now for Explosion-safe applications, the CLN can be attached anywhere for ATEX applications.
CLICK HERE FOR CLN-EX PRODUCT LINK & PDF DOWNLOAD
Product Features
• Resistant to Water, Oil and Coolants
• Special design disperses heat radiation with illumination to surpass a 40W light bulb.
• Bracket options (Pan-tilt),
• Two directions (Up-down, Swivel) for attachment to adapt to various scenarios.
• Color (Daylight)
• Operating temperature range of -40 to +60°C allows installation in sub-freezing temperature environments, such as cold storage warehouses.
• Conforms to the CE requirements.

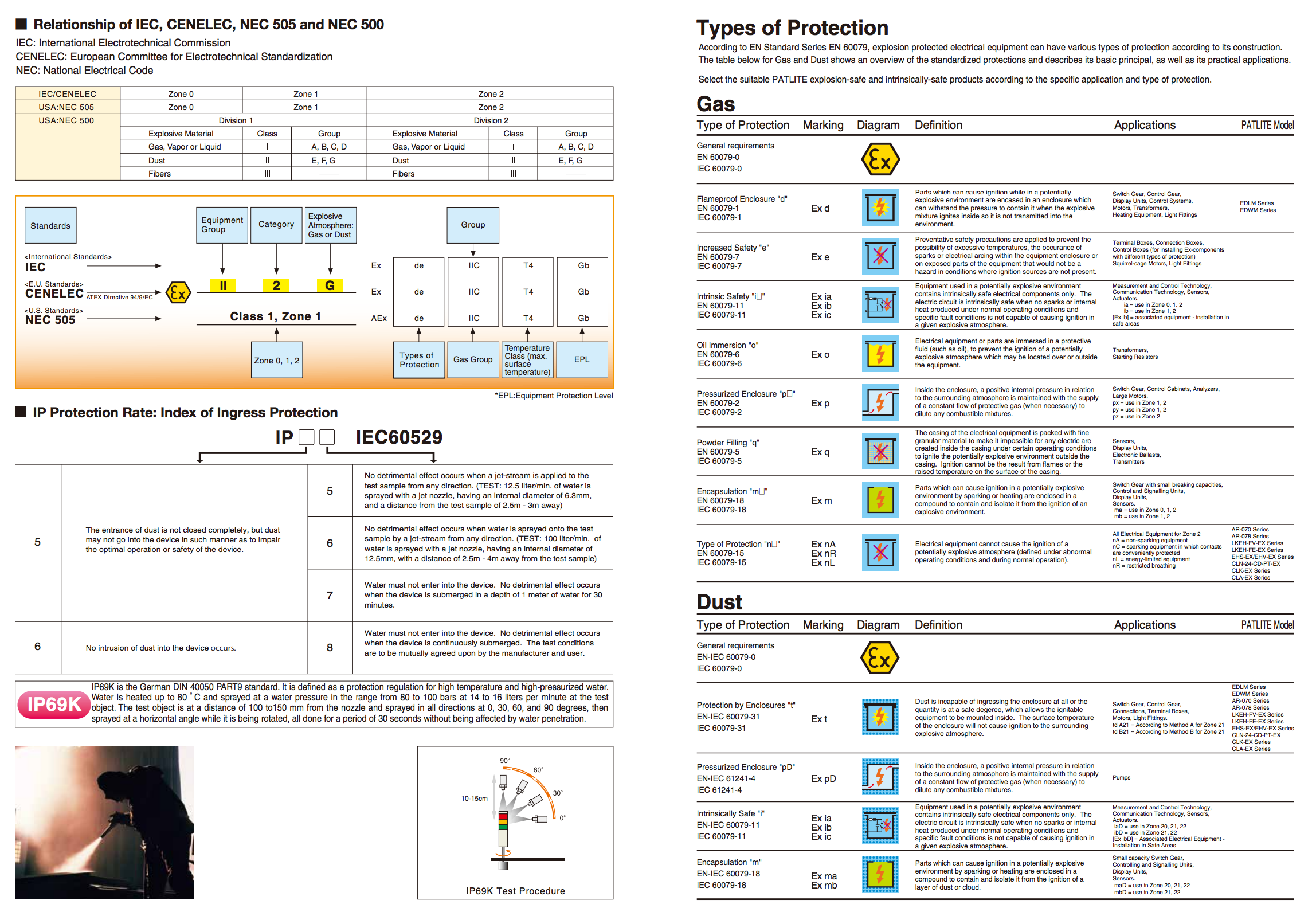

• II 3GD Ex nA IIC T4 Gc, Ex tc IIIC T135ｰC Dc IP65
(This product is limited to a maximum allowable impact of 2 Joules (1kg dropped from 0.2m))
NOTE: THIS PRODUCT IS MADE TO ORDER AND CARRIES A LEAD TIME. PLEASE ENQUIRE WITH US TO CHECK SUITABILITY.

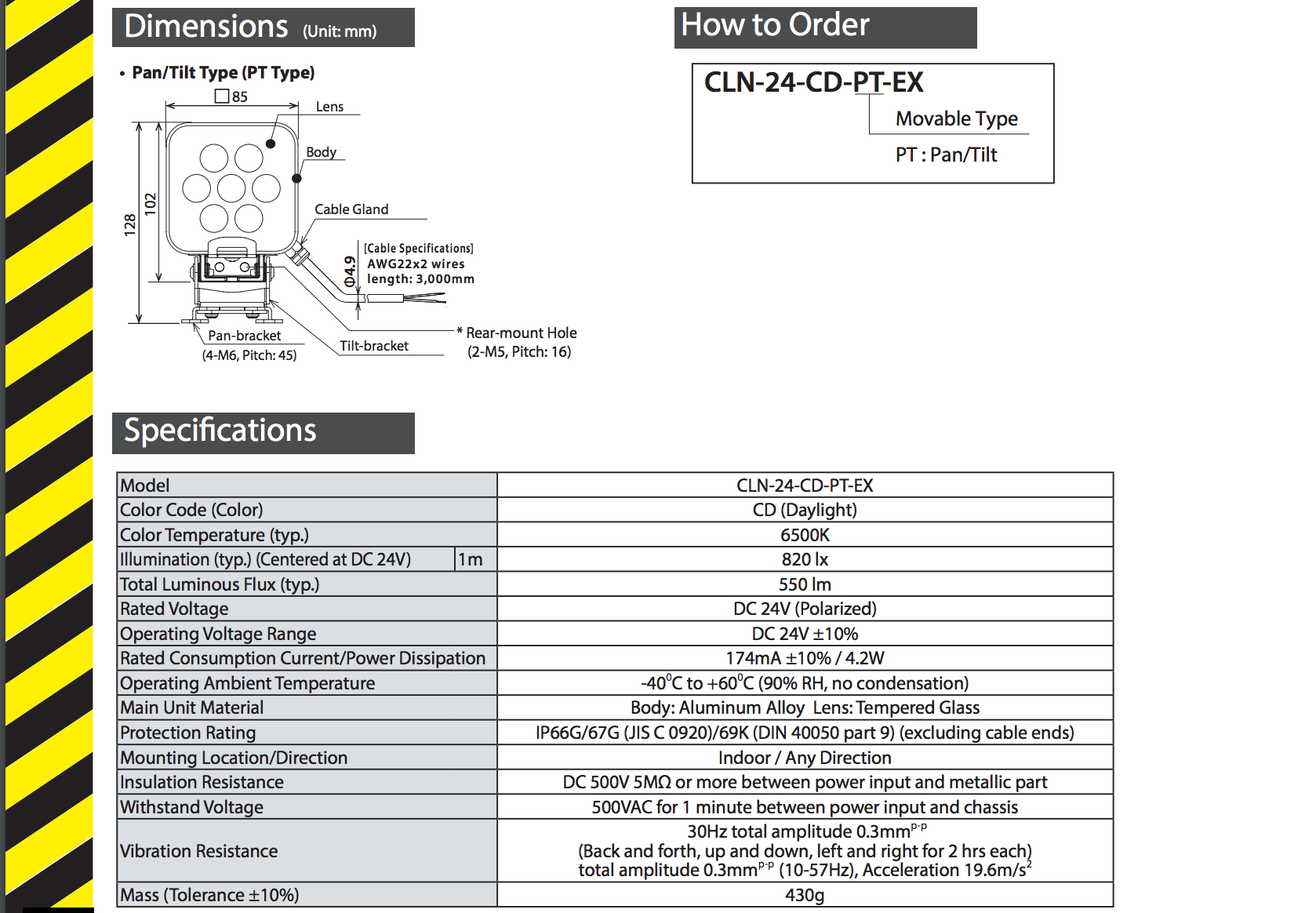

Model Specifications : CLN-24-CD-PT-EX
| DIMENSIONS | - Refer to Specification Sheet |
|---|---|
| OPERATING VOLTAGES | - 24V DC ±10% |
| BODY STYLE | - Aluminum Alloy |
| LENS MATERIAL | - Tempered Glass |
| CONFORMITY STANDARDS | - RoHS Conformity - UL Listed - IEC62471-2 - CE Conformity - Ex Conformity |
| PROTECTION RATINGS | - IP66G/67G (JIS C0920) - 69Ｋ (DIN 40050 part9) |
