Description

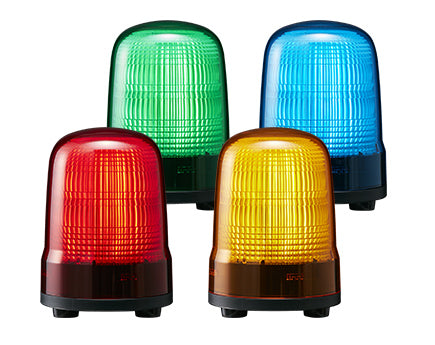

PATLITE SIGNALFX SL HIGH GRADE LED WARNING LIGHT BEACON
MODEL: SL08-M1JN-B
| Series | SL |
|---|---|
| function | Flashing Beacons SL |
| size | 80 mm |
| Rated voltage | 12-24V DC |
| Mounting method | 3-screw |
| Wiring method | Cable |
| Globe color | Blue |
| buzzer | No |
| Mounting pitch | 50 |
| Material (Glove / Body) | PC |
| Degree of protection | IP23, IP65 |
| Applicable standards | UL/cUL, CE , KC, EAC |
| Remarks | When used with rubber mounting (SZW-102), the IP rating will become IP65. 24V AC is not supported. |
Compatible Mounting Options
 SZK-101Waterproof Wall Mounting Bracket |
 |
 |
 |
 SZ-007Wall Mounting Bracket |
 SZ-008SZ-028 Wall Mounting Bracket |
|
Product Features
-
Full Visibility
The newly developed Fresnel lens distributes ambient, uniform light from all surfaces of the globe, including the top.
Compared to competing products, the SL has a wider, light-emitting surface, with over 5 times the luminous intensity.
-
Easy Mounting
IP66 rating (KT type)
(1) Screw in the mounting bracket
(2) Connect wires to the push-in terminal block
(3) Mount the body onto the mounting bracket
(4) Lock into place
»[Video] Mounting video
Light Pattern
Application Examples
 At this train station, a combination of flashing light and sound from the SL warns people at the platform of approaching trains. |
 The SL on this control panel alternates between continuous, blinking, and triple flashing lights to indicate normal, warning, and critical conditions respectively. |
 This SL is mounted on the ceiling of a store, indicating emergencies by flashing light, which is visible from a distance. |
Model Number Configuration
Accessories
