Description
REPLACE YOUR FLURO'S TODAY. SAVE ENERGY & REDUCE COSTS. USE PATLITE CWA LED WORK LIGHTS. THE ONLY INDUSTRIAL GRADE GLOBAL BRAND WITH CONSIDERATION TO ' LONG TERM EYE SAFETY'.
PATLITE SIGNALFX CWA IP65 LED Lighting for Electrical Cabinets, Food Cabinets, Machine Vision, CNC Machine LED Lighting, Food & Beverage Inspection, Cabinets, Industrial, Retail, vending Machines, Commercial, Transportation, Buildings, Aviation applications. Contact us for more information, OEM, distributor discounts.
-

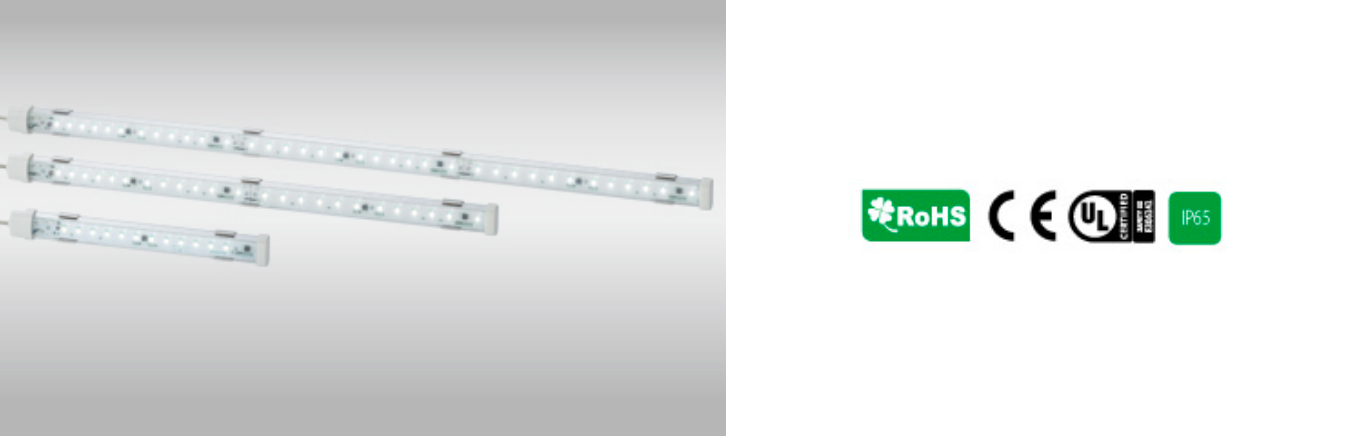

CWA LED Light Bar
- An affordable replacement, the slim LED light bar can outperform a conventional fluorescent lamp. The protection rating of IP65 is a standard which allows installation in most common environments.
Product Features
- Available for DC 24V applications

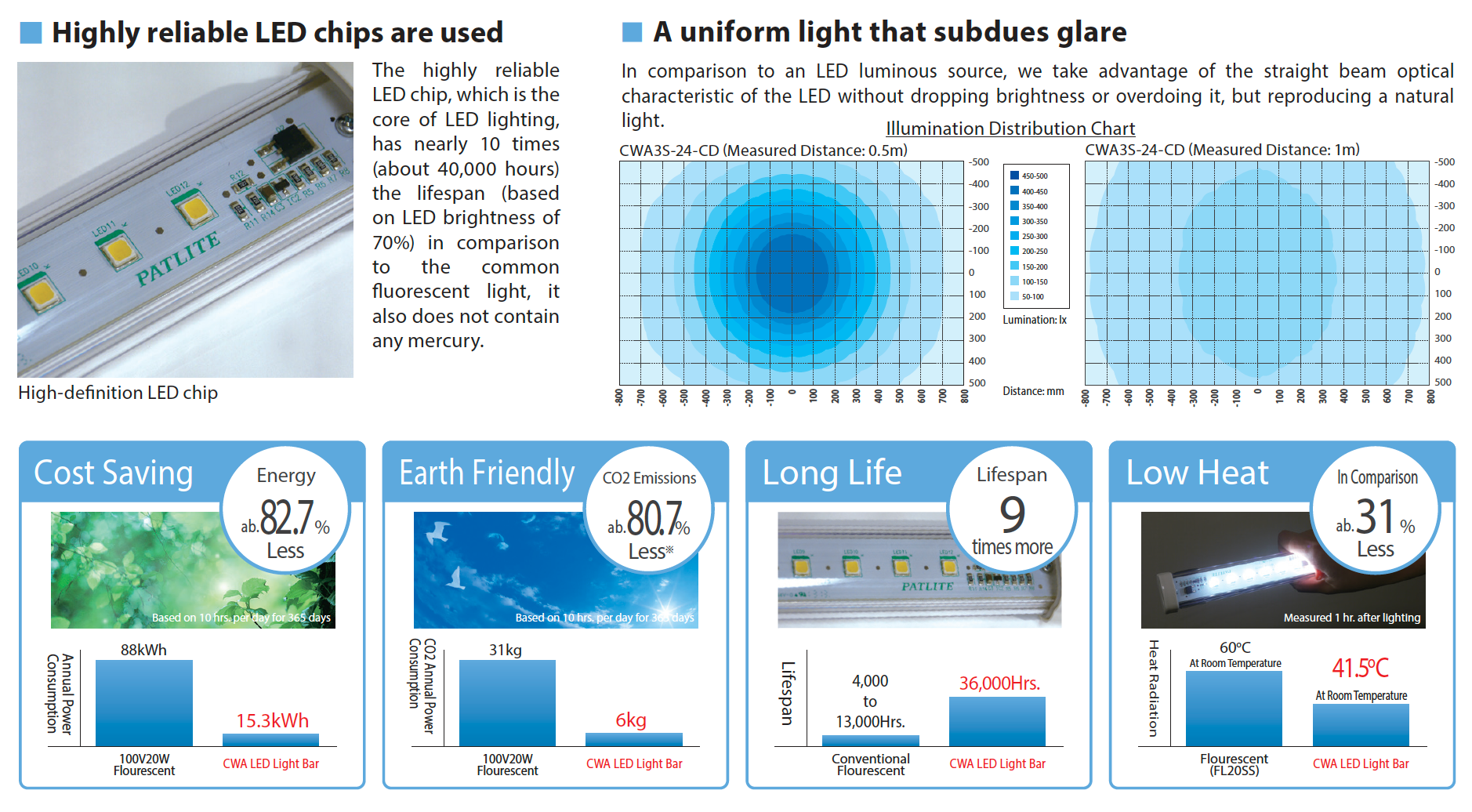

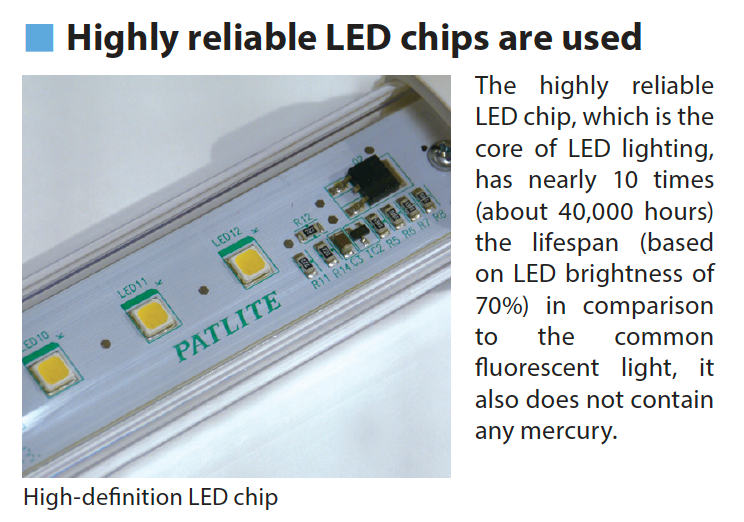

- Long-lasting LED’s greatly reduce maintenance costs
- Total luminous flux of 350lm, 100lx luminance at 1m (Voltage:DC24V)
- A set of two stainless-steel mounting brackets is a standard accessory
- Operating temperature range from -30 to +60 degrees C.
- LED color temperature is Daylight (6500K)

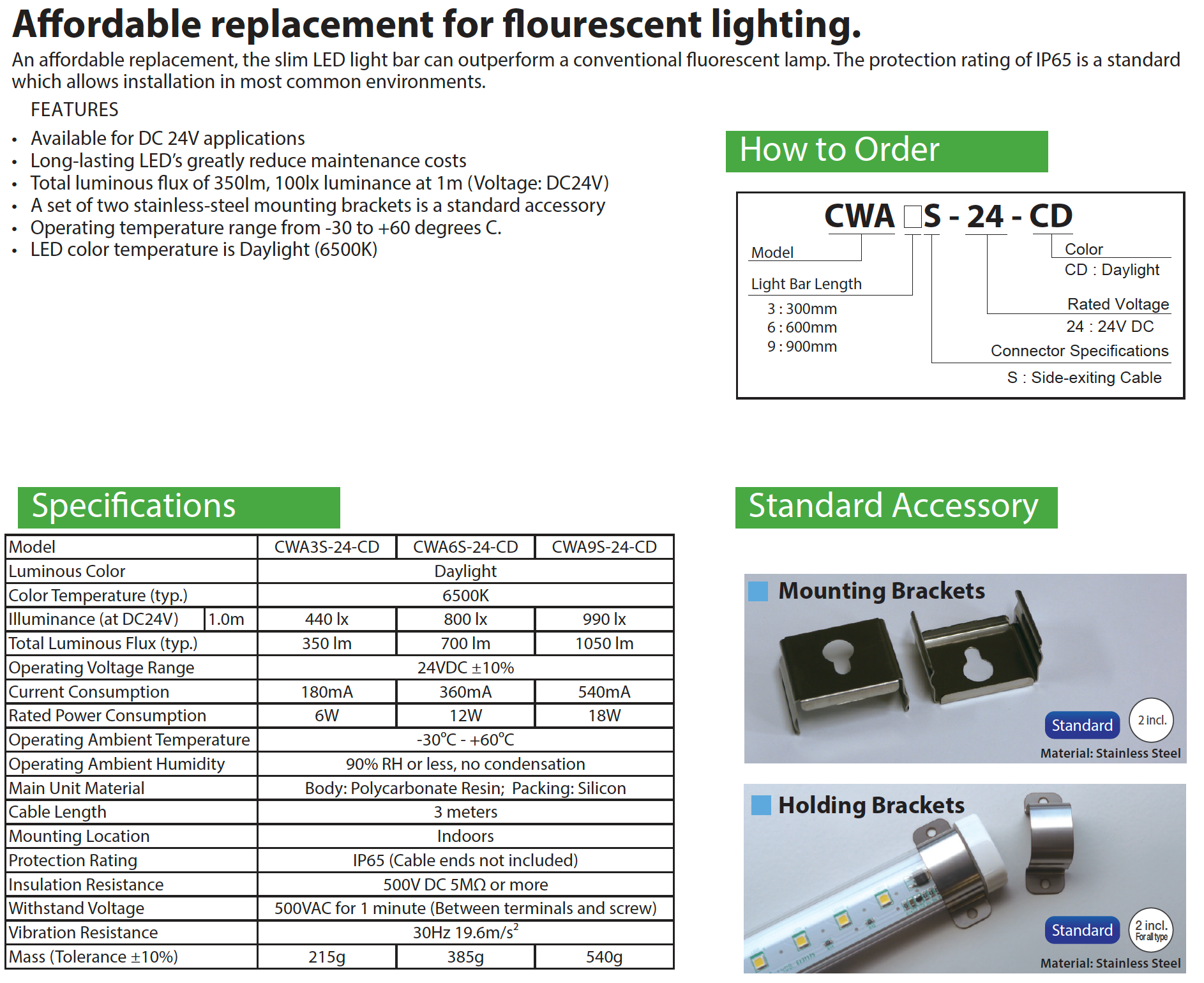

Model Specifications

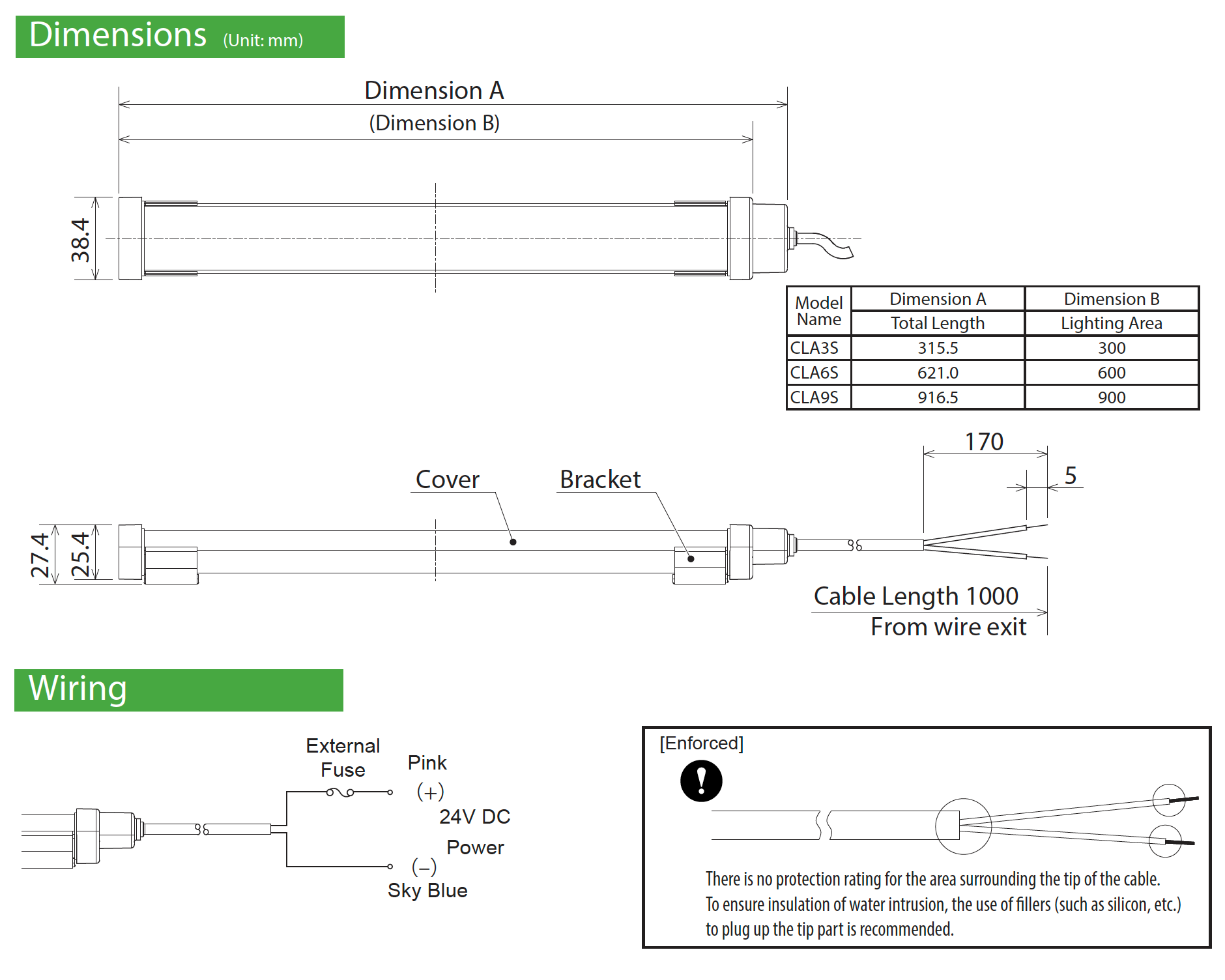

| DIMENSIONS | Lengths: - 300mm - 600mm - 900mm |
|---|---|
| OPERATING VOLTAGES | - 300mm Length: DC24V, 175mA, - 600mm Length: DC24V, 365mA - 900mm Length: DC24V, 550mA |
| FUNCTIONS | - 300mm Length: 100 lux, 350 lum - 600mm Length: 200 lux, 700 lum - 900mm Length: 300 lux, 1050 lum |
| MOUNTING | - Mount in any direction with the brackets included |
| LIGHT SOURCE | - High power LED Array |
| LENS MATERIAL | - Polycarbonate Resin |
| CONFORMITY STANDARDS | - RoHS - CE - UL |
| PROTECTION RATINGS | - IP65 (IEC 60529) |
